Haier AC242ACEAA [175/408] Installation

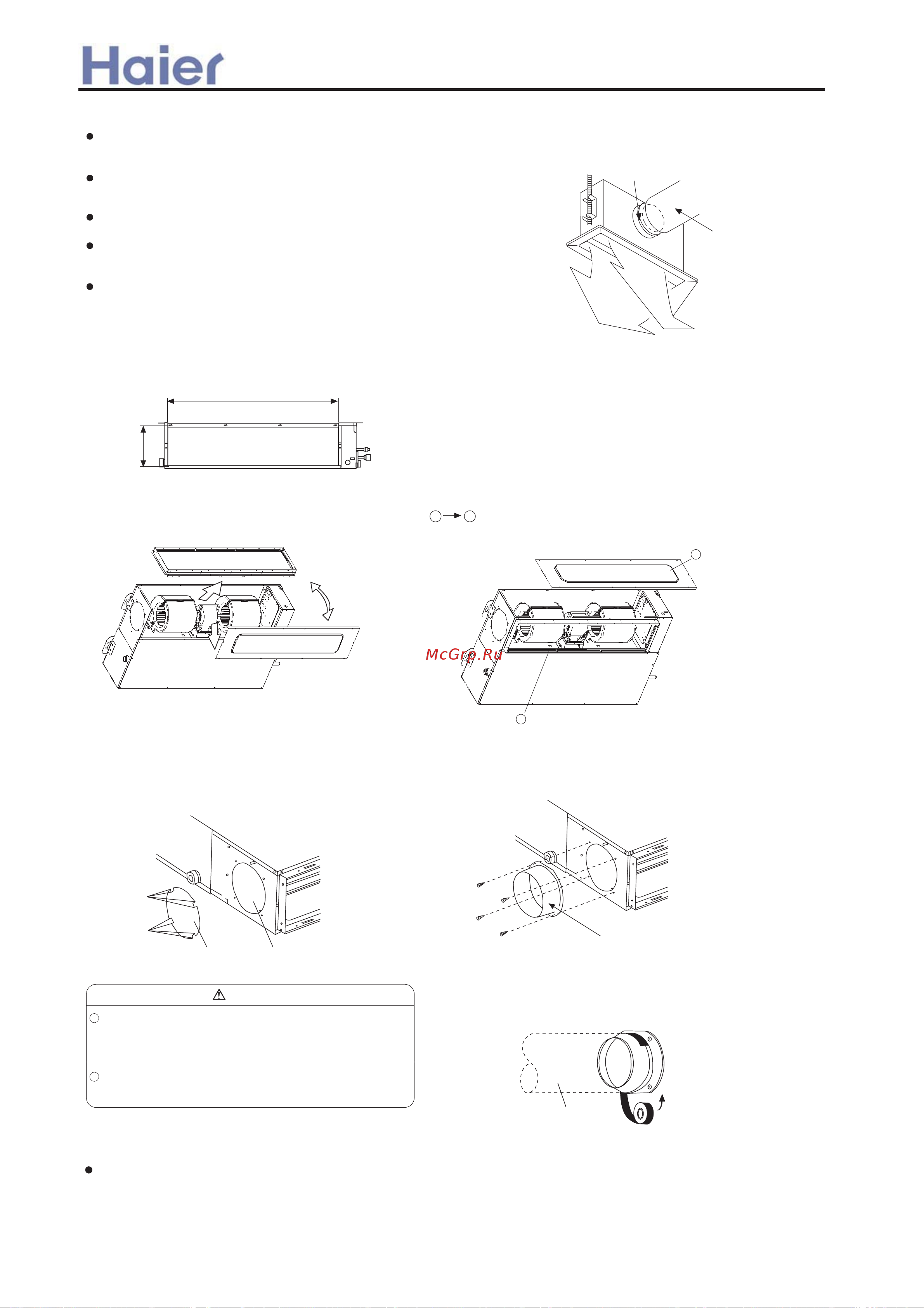

![Haier AC182ACERA [175/408] Installation](/views2/1807985/page175/bgaf.png)
7. The attentive matters in installation of air suction and discharging duct
Air
Air
Duct
Special air discharging outlet
Use screw bolt to fix
8.Intake duct connection
Follow the procedure in the following figure to the ducts
The air inlet duct can be changed by replacing
the intake grille and flange
For the bottom air intake, follow the procedure of
for installation.
(The factory setting is back air intake)
1 2
Recommend to use anti-frost and sound-absorbing
duct. (locally bought)
The duct installation work should be finished
before the fitment of ceiling.
The duct must be heat insulated.
The specific air-discharging outlet should be installed at
the place where the airflow can be reasonably distributed.
The surface should leave a checking meatus for checking
and maintenance.
9.Fresh air intake
(Processing before use)
When taking in fresh air ,cut a slit shaped
cabinet in the left side of the outer case with
nippers
(1)
Install the round flange (option parts) to the fresh
air intake
(2)
Connect the duct to the round flange
(3)
1015mm
240mm
Cut
Cut
Cabinet(iron plate) Square hole
Seal with a band and vinyl tape,etc. so that air
does not leak from the connection
(4)
Duct
CAUTION
1
2
When removing the cabinet (iron plate), be careful not
to damage the indoor unit internal parts and surrounding
area (outlet case)
When processing the cabinet (iron plate),be careful not
to injure yourself with burrs,etc.
10. The examples of improper installation
Do not use air in duct and take the ceiling inner side instead. The result is because of the irregular
outer air mass, strong wind and sunshine, the humidity is increased.
1
2
Installation
-158-
