Performance Curves
-216-
3. Curves
3.1 Performance curves

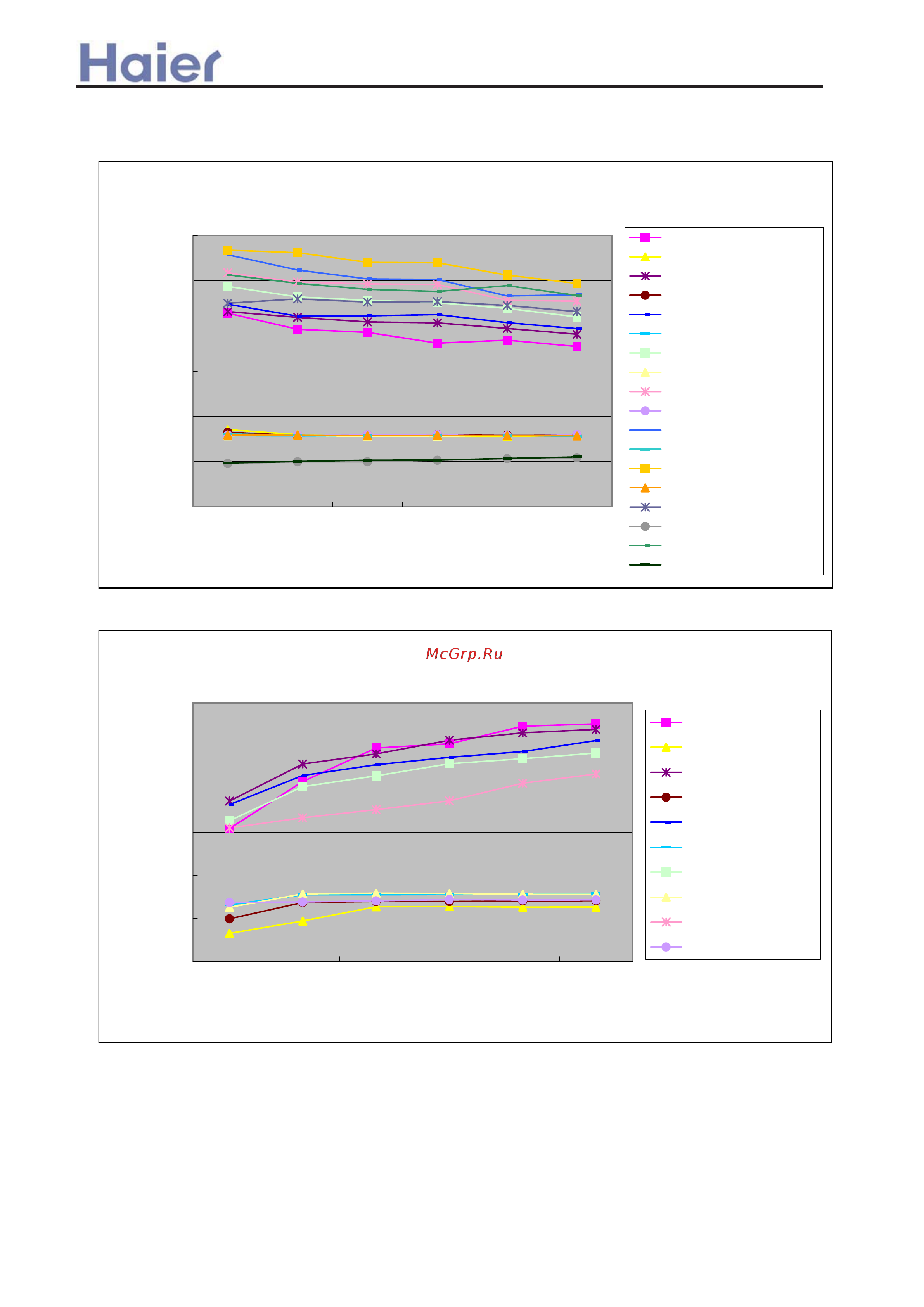

heating performance curves-AC122ACERA/AU122AEERA
0
1000
2000
3000
4000
5000
6000
18/12 20/14.5 21/15 22/16 24/17 26/18
indoor temp.
heating capacity and power input (W)
-6/-7 heating capacity
-6/-7 power input
-4/-5 heating capacity
-4/-5 power input
-1/-2 heating capacity
-1/-2 power input
1/0 heating capacity
1/0 power input
6/5 heating capacity
6/5 power input
7/6 heating capacity
7/6 power input
12/10 heating capacity
12/10 power input
16/15 heating capacity
16/15 power input
24/18 heating capacity
24/18 power input
cooling performance curves-AC122ACERA/AU122AEERA
0
1000
2000
3000
4000
5000
6000
20/14 22/16 25/18 27/19 30/22 32/24
indoor temp.
cooling capacity and power input (W)
20 cooling capacity
20 power input
25 cooling capacity
25 power input
32 cooling capacity
32 power input
35 cooling capacity
35 power input
40 cooling capacity
40 power input
