B:BLACK
NOTE˖1ǃ
REMOTE CONTROLLER IS OPTIONAL .
2ǃREFER TO OPERATION INDOOR MANUL TO SET DIP BM1-BM4 .
PLEASE DO NOT CHANGE THE DIP SWITCH RANDOM.
3ǃNO ELECTRIC HEATING TYPE WITHOUT ELECTRIC HEATER.
R:RED
BL:BLUE
W:WHITE
Y/G:YELLOW/GREEN
2
1
3
CN13
CN12
CN11
CN22
CN2
SWING MOTOR
CONTROL PANEL
ROOM TEMP. SENSOR
PIPING TEMP. SENSOR
SWING
MOTOR
REMOTE CONTROLLER
Y/G
Y/G
FAN MOTOR
HEATER
TO OUTDOOR UNIT
W
ONE-OFF FUSE
RESUMABLE PROTECTOR
B
R
CAPACITOR
FUSE
M
M
BYBLR
T3.15A/250VAC
CN23
CN3
BM2
BM1
CN4CN24
CN25
CN10
BM4
BM3
CN7
CN5
CN6
TRANSFORMER

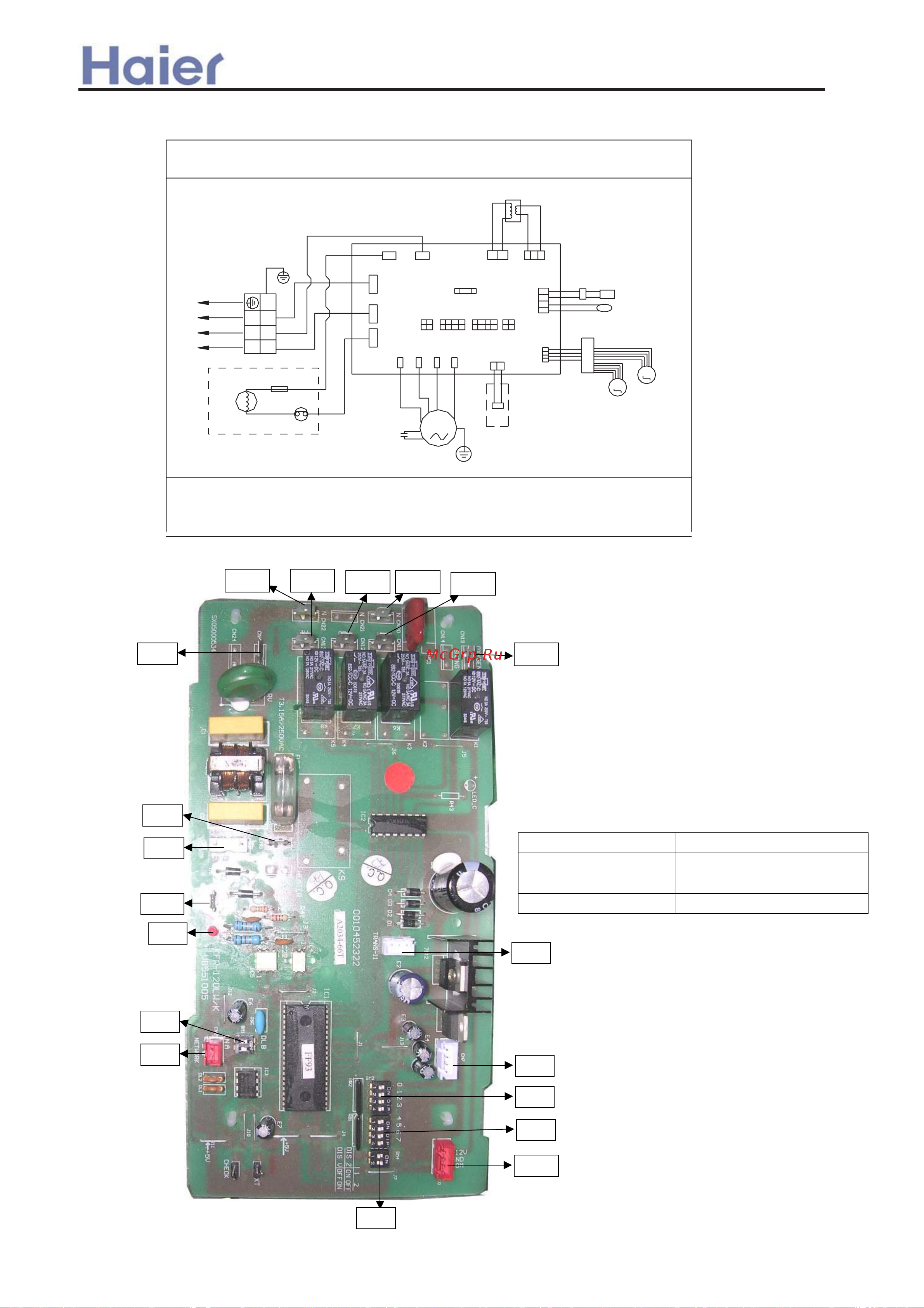

CIRCUIT DIAGRAM OF INDOOR UNIT
M
0010578100
AP482AKEAA
CN22
CN20
CN13
CN12
CN11
CN4 CN19
CN5
CN3
CN25
LED
CN2
BM1
CN7
BM4
CN10
BM3
BM2
CN6
0010452322
BM1 Funcion selection
BM1-1 ON/OFF cooling only / heat pump
BM2 and BM3
BM4 Panel selection
Select the panel according to the 2 dip switch
Style of panel 1 2
Cabinet V panel OFF ON
Cabinet Z panel ON OFF
Wired controller ON ON
used for indoor unit to set unit address from 1 to 128’
BM1-2 ON/OFF Automatic run B / A mode
Electrical wiring diagram and PCB photo
