195
Smart Power
5. Instructions of Parameters & Error Code Checking
5.1 From where to do the parameters checking work?

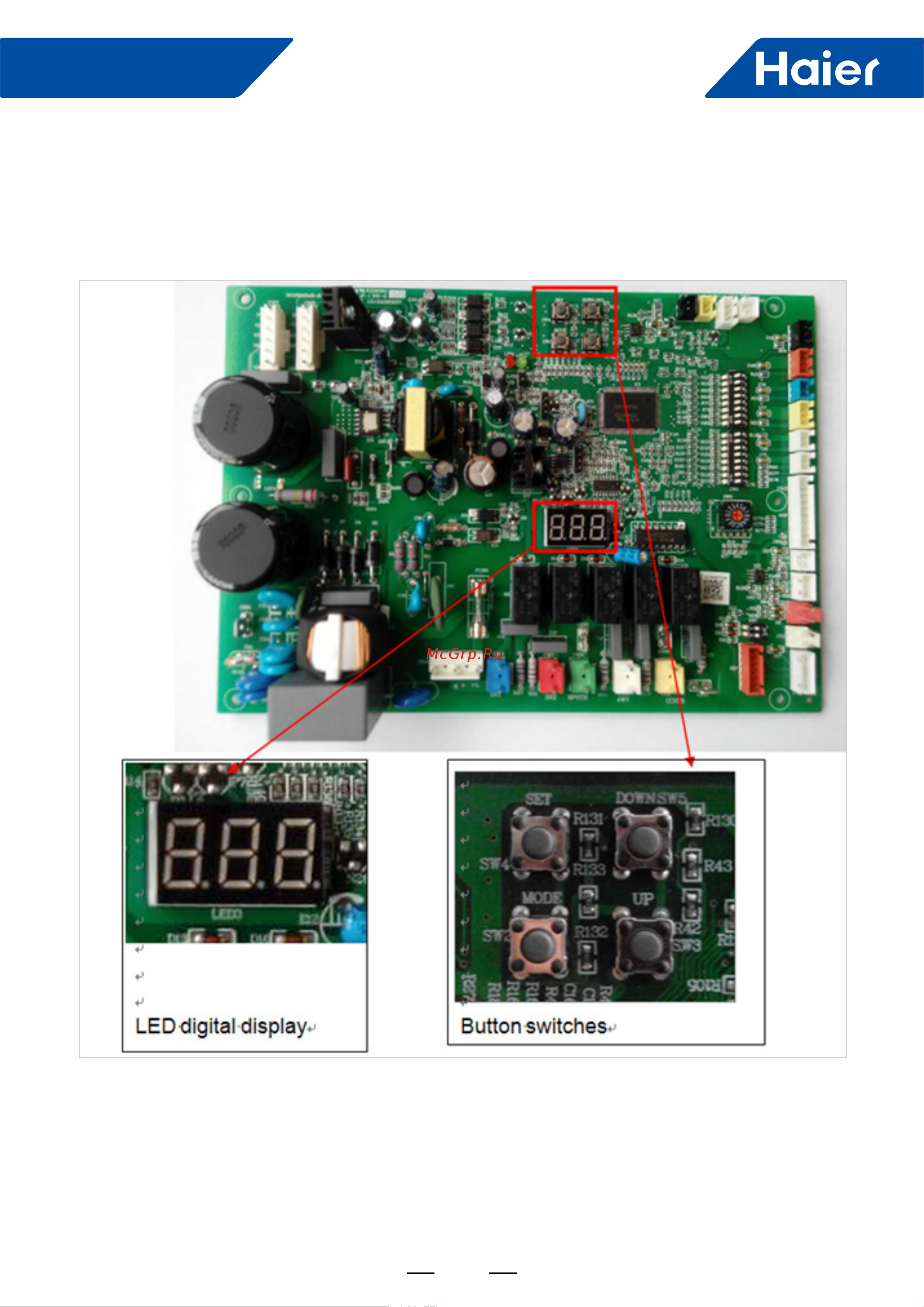

5.2 Where are the digital LED display and the button switches?
One digital LED display and 4 button switches which on the outdoor main control PCB
