79
Smart Power
Dimensions
Model
A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
ADH105H1ERG
ADH125H1ERG
ADH140H1ERG
ADH160H1ERG
1285 1373 1163 543 1046 518
ADH200H1ERG
ADH250H1ERG
1221 1330 1118 945 958 895

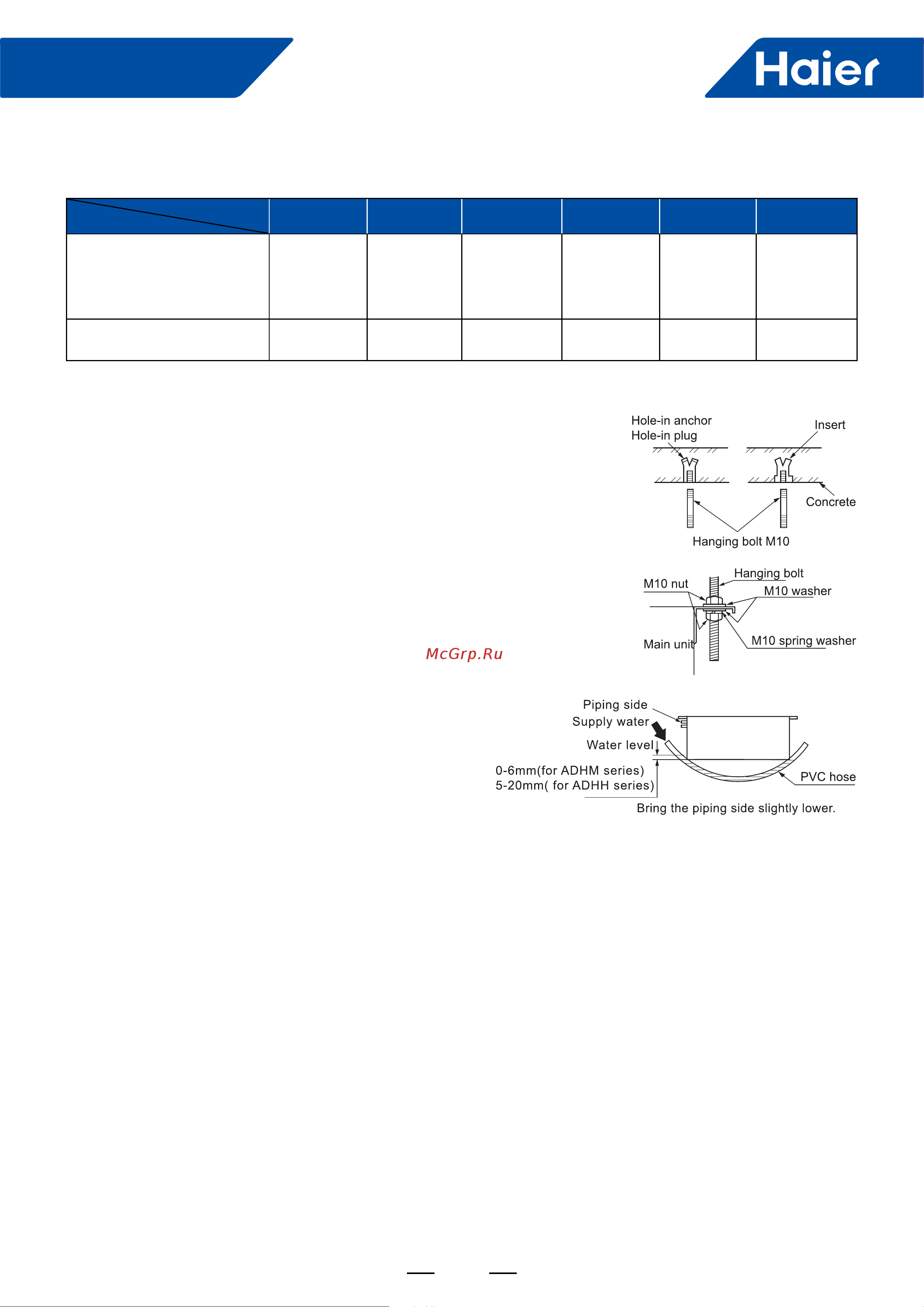

b.Hanger bolts installation
Use care of the piping direction when the unit is installed.
2.Installation of indoor unit Fix the indoor unit to the hanger
bolts. If required, it is possible to suspend the unit to the
beam, etc. Directly by use of the bolts without using the
hanger bolts.
Note
When the dimensions of main unit and ceiling holes does
not match, it can be adjusted with the slot holes of hanging
bracket.
Adjusting to the levelness
(a) Adjust the out of levelness using a level or by the
following method.
Make adjustment so that the relation between the lower
surface of the unit proper and water level in the hose
becomes as given below.
(b) Unless the adjustment to the levelness is made properly
malfunctioning or failure of the oat switch may occur.
