Smart Power

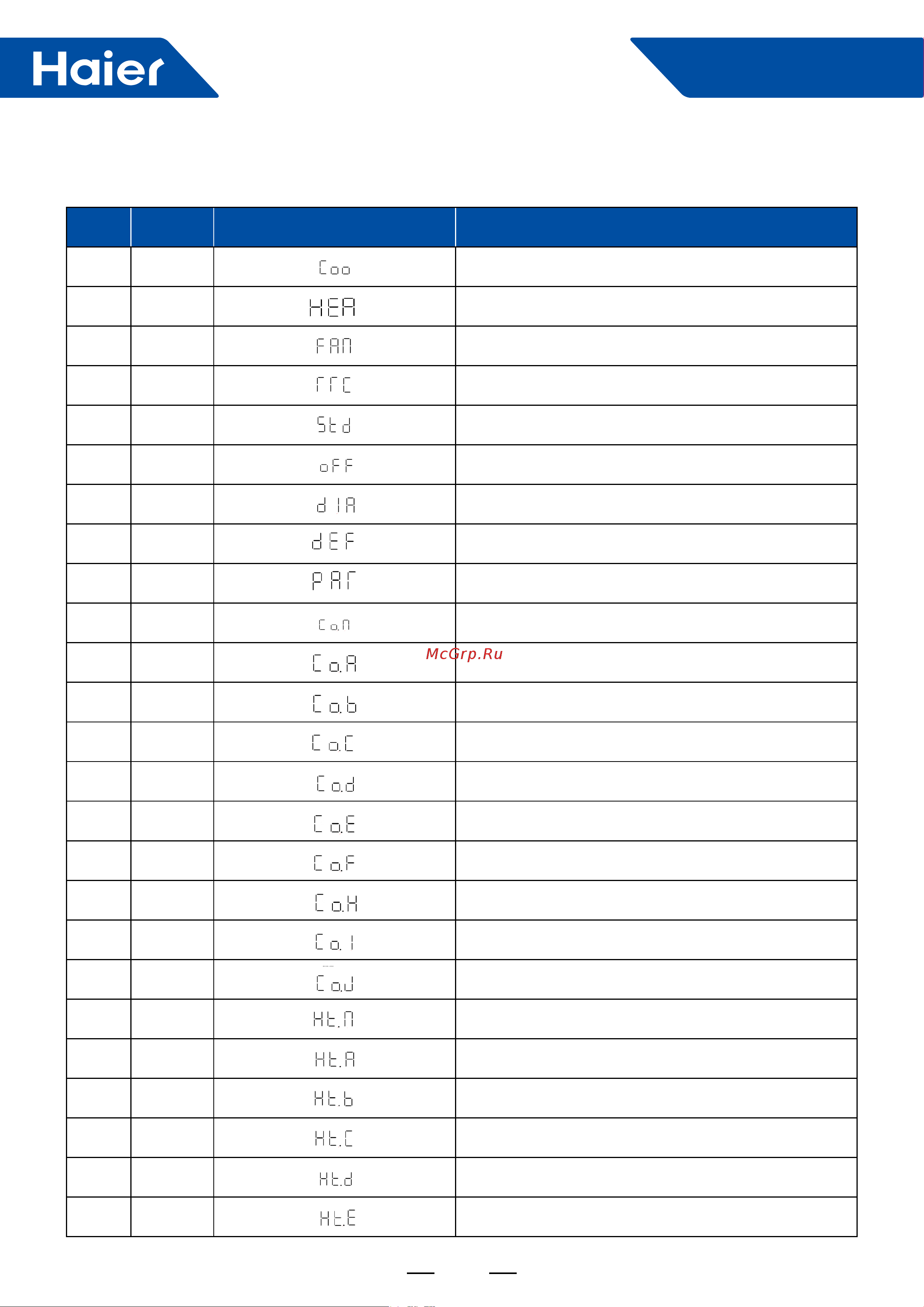

5.5 Explanation about outdoor unit LED digital display
No. Symbol LED digital display Explanation
1 Coo
Cool mode
2 HEA
Heat mode
3 Fan
Fan mode
4 rrC
Refrigerant Recovery
5 Stb
Manually forced stand by
6 OFF
Compressor at OFF status
7 dIA
Diagnose
8 dEF
Manually forced defrost
9 pAr
Parameters checking
10 Co.N
Cool mode of EER test condition
11 Co.A
Cool mode of SEER test condition A
12 Co.b
Cool mode of SEER test condition B
13 Co.C
Cool mode of SEER test condition C
14 Co.d
Cool mode of SEER test condition D
15 Co.E
Cool mode of SEER test condition E
16 Co.F
Cool mode of SEER test condition F
17 Co.H
Cool mode of SEER test condition F
18 CO.I
Cool mode of SEER test condition I
19 CO.J
Cool mode of SEER test condition J
20 Ht.N
Heat mode of EER test condition
21 Ht.A
Heat mode of SCOP test condition A
22 Ht.b
Heat mode of SCOP test condition B
23 Ht.C
Heat mode of SCOP test condition C
24 Ht.d
Heat mode of SCOP test condition D
22 Ht.E
Heat mode of SCOP test condition E
