7
Installation
Holder Installation

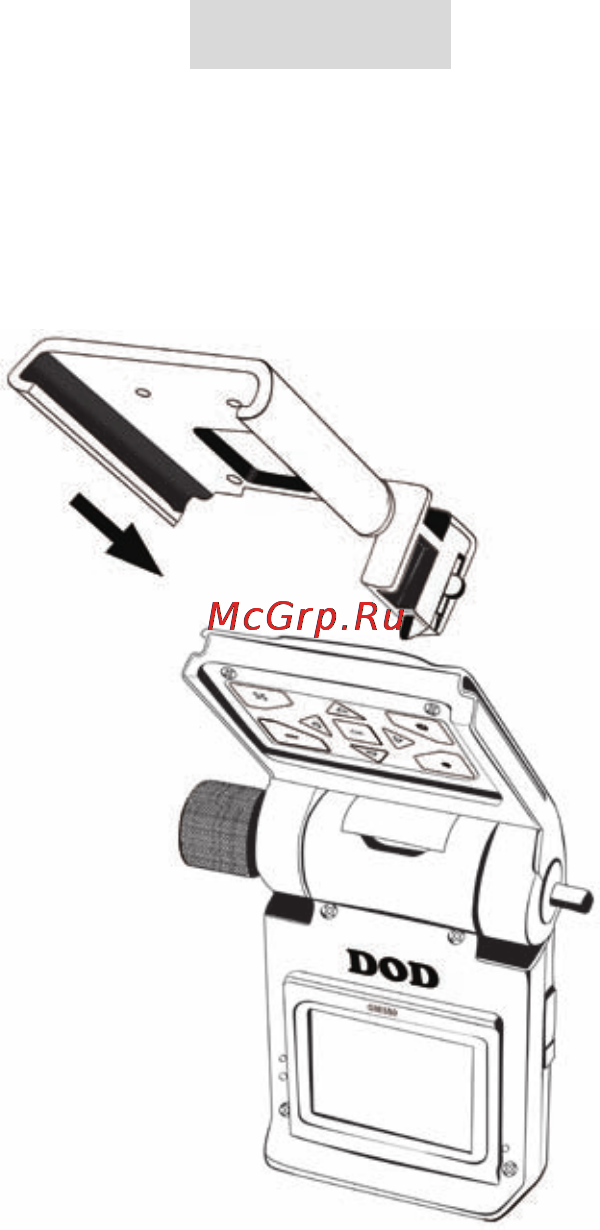

Follow the direction of the arrow, to push the bracket into the notch
of the device, there will be a “click” sound when it is integrated
completely.
