44
Connecting to PC
．Step 1
Please insert Micro SD card to drive recorder (page 8)
．Step 2
Connect USB cable to drive recorder and plug the other end to USB
port on PC.
．Step 3

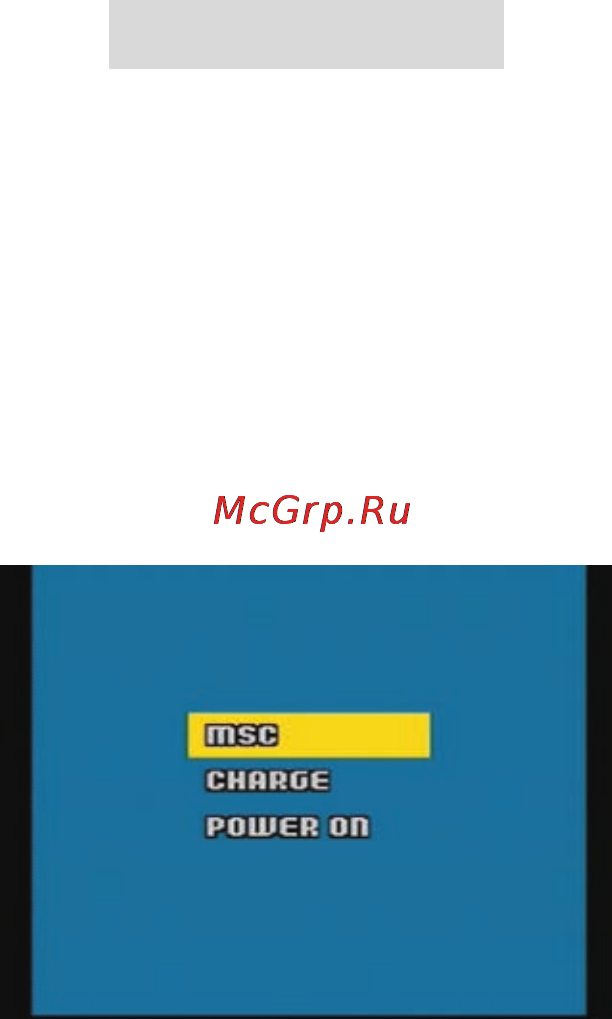

Switch ON the PC recorder after connecting properly, the following
screen will appear, please select “MSC” and press OK.
．Step 4
Now there will be two removable disks appearing on the PC, you can
access the files through Memory card.
