11
Transmit the video to the vehicle monitor(AV cable is
optional purchase)
Video can be transmitted through AV IN interface if there are video
equipments (vehicle monitor, GPS, and Satellite TV, etc.). The
following is an example on transmitting the video to the monitor by
using GPS with build-in AV IN function.
Please skip the steps if you do not have these equipments.

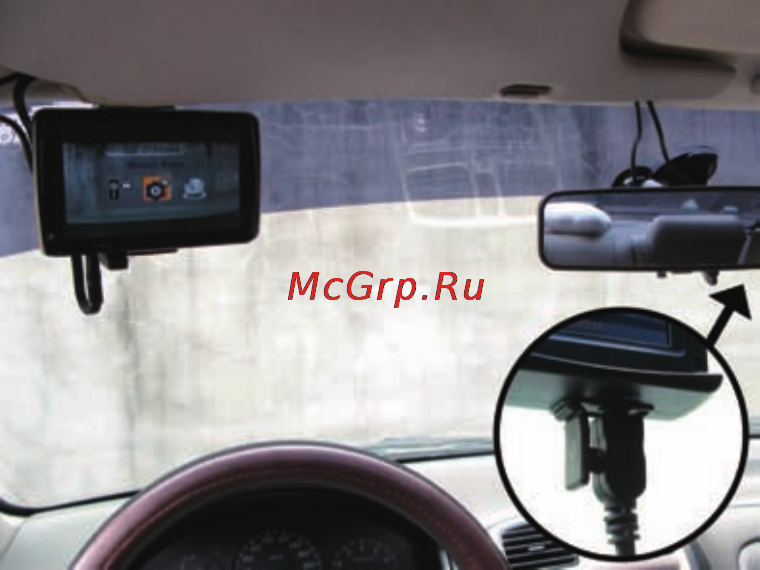

． Step 5
Insert the AV terminal to the video equipment, plug the other end to
USB port of the drive recorder, adjust the video equipment to AV
channel, and insert the vehicle power cable to complete the
installation.
