DOD GSE520 [9/100] Rear view
![DOD GSE520 [9/100] Rear view](/views2/1081991/page9/bg9.png)
6

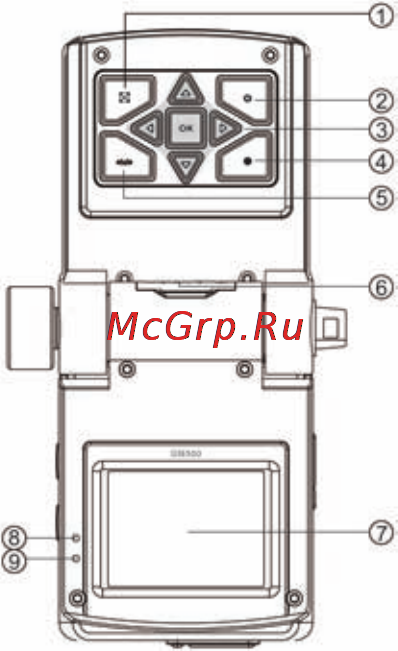

Rear View
1.Menu Button
2. Power Button
3. Direction Button(5 directions)
UP、DOWN、LEFT、RIGHT、OK Button
4. Recording Button
5. Mode Button
6. Micro-SD Card Slot/HDMI Port
7. Screen
8. Blue Indicator Light (GPS)
9. Red Indicator Light (Recording)
