DOD GSE520 [11/100] Holder uninstallation
![DOD GSE520 [11/100] Holder uninstallation](/views2/1081991/page11/bgb.png)
8

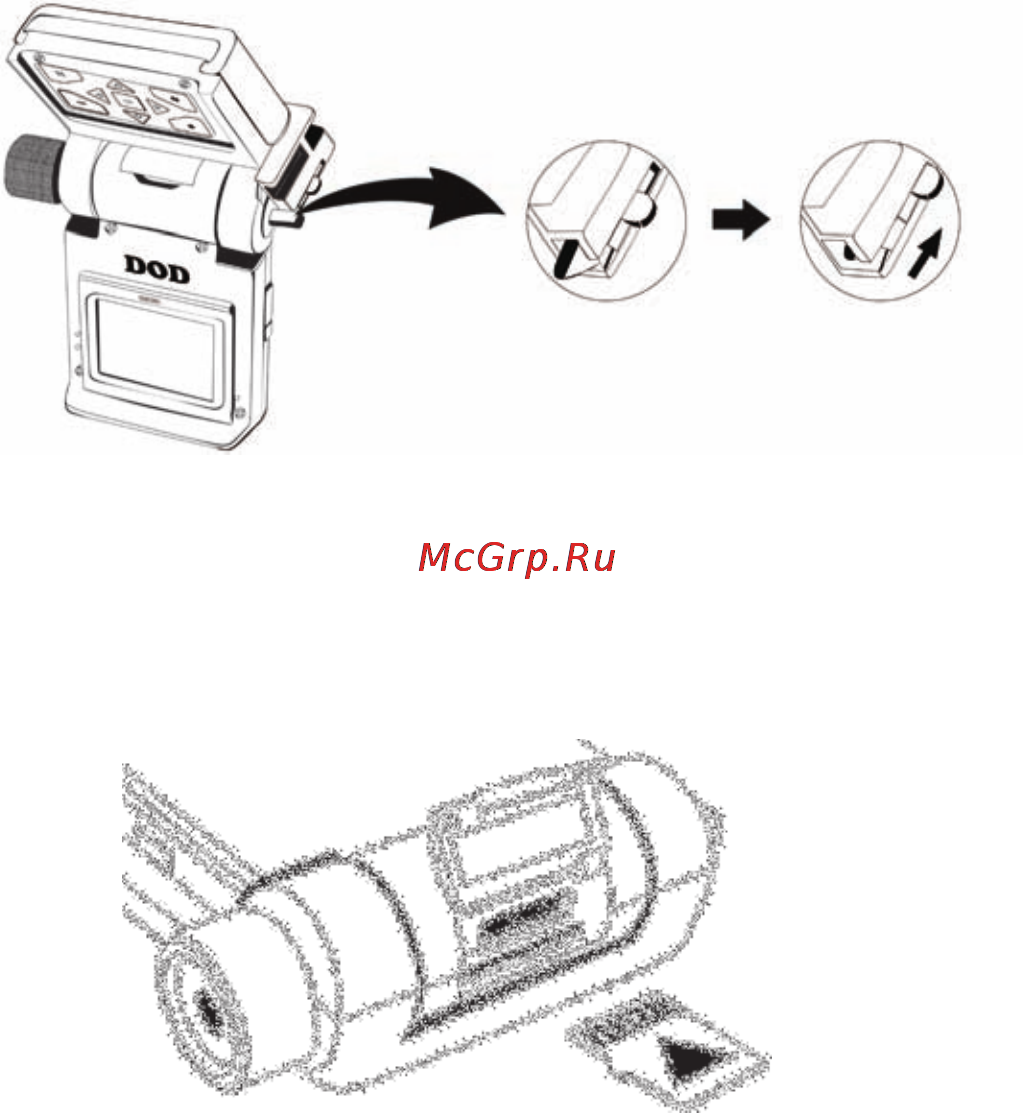

Holder Uninstallation
Press the latch on the right side of the holder to release the device.
Memory Card Installation (Optional Purchase)
Install the Micro SD card into the drive recorder in the specific
direction.
