DOD GSE520 [12/100] Installation on your vehicles
![DOD GSE520 [12/100] Installation on your vehicles](/views2/1081991/page12/bgc.png)
9

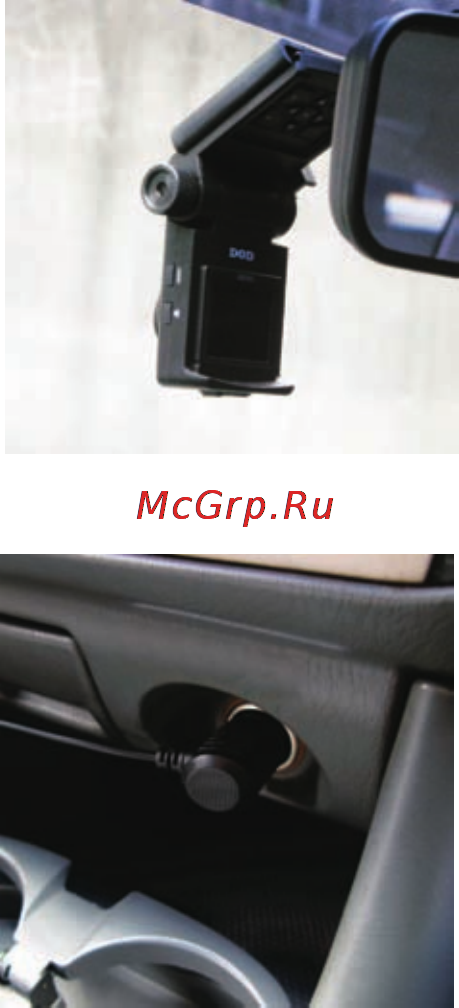

Installation on Your Vehicles
． Step 1
Install the suction bracket or adhesive bracket by having it sucked
onto the windshield with the lens facing forward.
． Step 2
Plug the vehicle power cable in the cig lighter, and plug the other end
to the DC port of the drive recorder.
