10

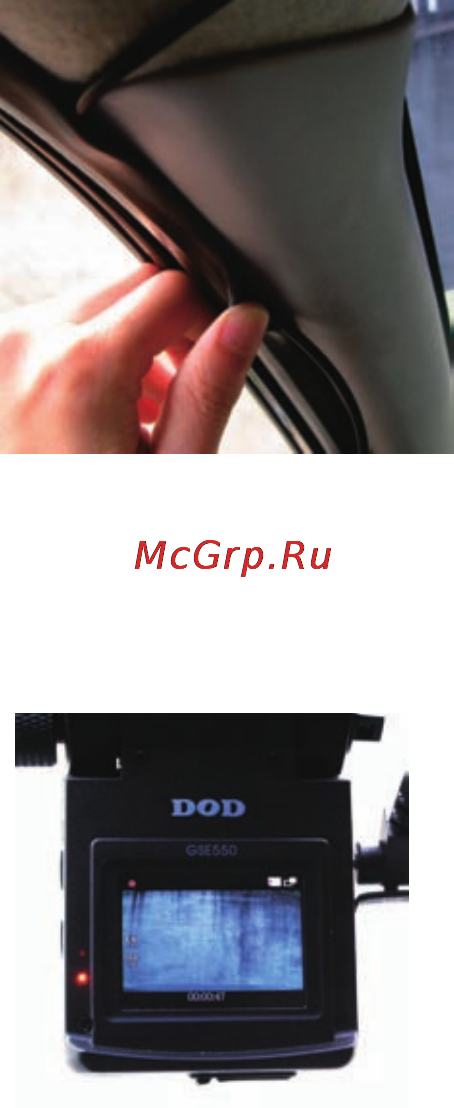

． Step 3
After installation, you may arrange the surplus power cable and hide
it inside Column A.
． Step 4
Switch ON the power, three options will appear on the screen, wait
for 2~3 seconds till the options disappear, red light on the drive
recorder will start blinking to indicate that now is recording mode;
and you could use the menu screen to adjust the direction of the
camera to complete the installation. Please refer to page 24 for
reference, [USB IN],
