DOD GSE520 [29/100] System setup
![DOD GSE520 [29/100] System setup](/views2/1081991/page29/bg1d.png)
26
System Setup

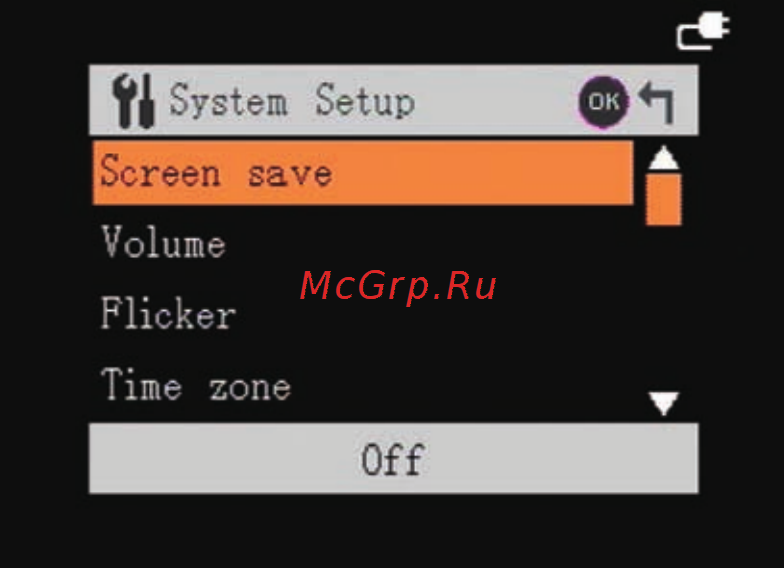

◆Screen save
When “SCREEN SAVE” is set, the screen will shut off after set time
and enter sleep mode; pressing any button will wake up the screen.
MENU Button→【System Setup】Menu→【Screen save】→【OFF】
*/【 5 seconds】/【15 seconds】/【30 seconds】/【1 min】
*Setting Value
