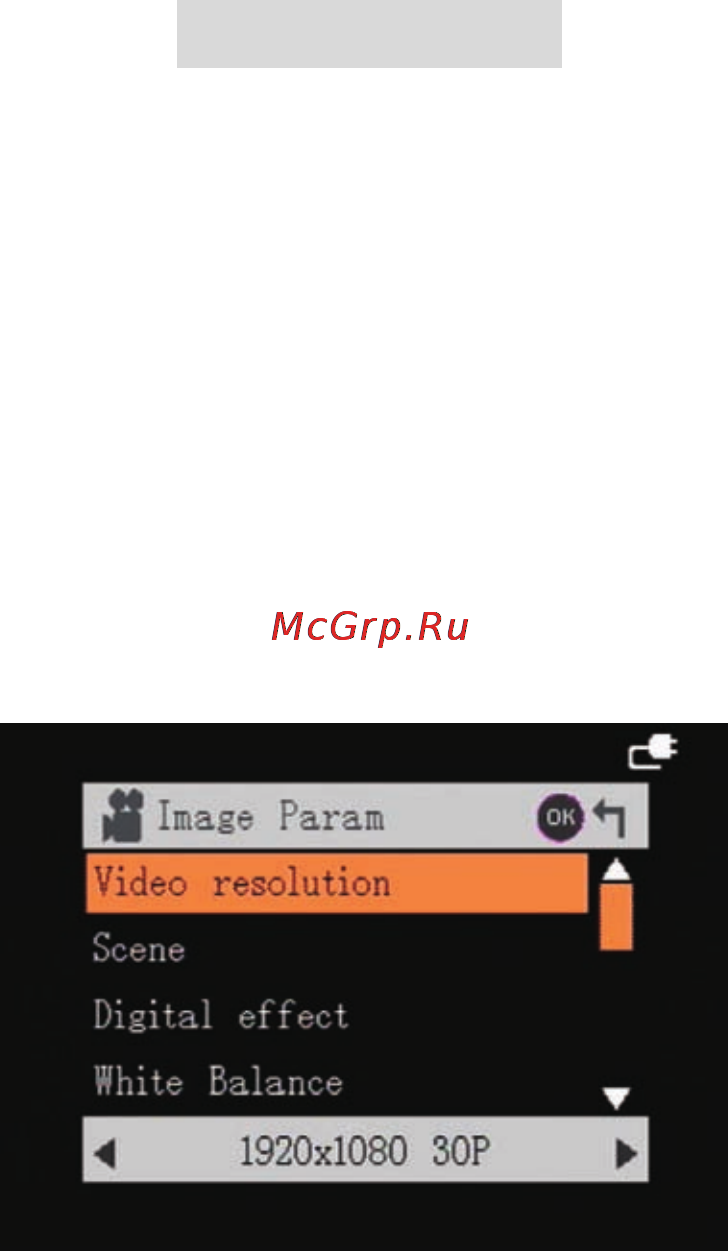

![DOD GSE520 [18/100] Menu operation](/views2/1081991/page18/bg12.png)
15
Menu Operation
Press “MENU” during recording mode.
Image Param
◆Video resolution
Video resolution can be configured during recording. Higher value
means higher resolution and better picture quality, and the storage
capacity consumption will be relatively higher.
FPS is Frame Per Second during recording. Higher FPS means
smoother video.
MENU Button→【Image Param】Menu→【Video resolution】→
【1920x1080 30P】*/【1440x1080 30P】/【1280x720 30P】/【848x480
60P】/【848x480 30P】/【640x480 30P】/【320x240 120P】/【320x240
30P】
*Setting Value
