30
◆G Sensor sens. X.Y.Z(GSE550)
When there is a collision, with the help of the changes in XYZ curves,
G Sensor or Gravity Sensor can determine the direction of the
collision and simultaneously set the recorded data to protection
mode, and the data will not be overwritten by circulated recording.
Adjust the sensitivity parameter of XYZ axles. [OFF] sensitivity means
G Sensor function is OFF, so the drive recorder will not automatically
set the data to protection mode, and manual setting will be needed.
X
：Left and right changes during acceleration.
Y
：Back and forth changes during acceleration.
Z
：Up and down changes during acceleration.

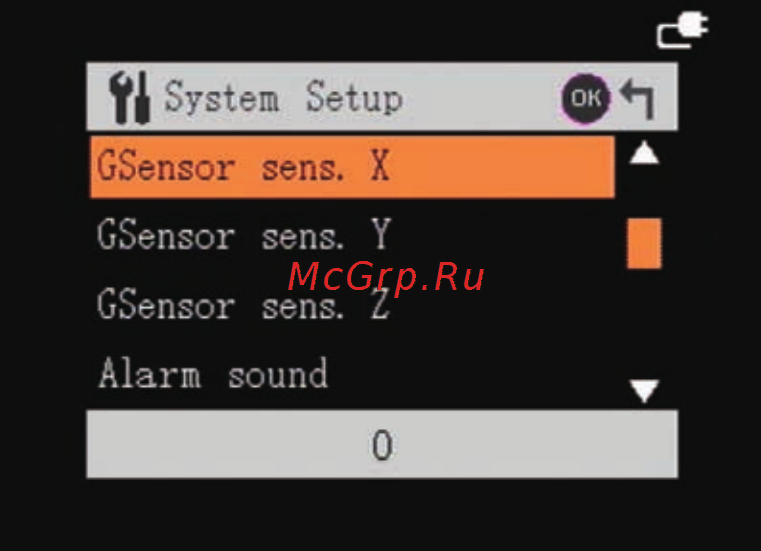

MENU Button→【System Setup】Menu→
【G Sensor sens. X.Y.Z】→【0】*/【1】/【2】/【3】/【4】/【5】
*/【6】/【7】/【8】/【9】/【10】
*Setting Value
