17. Disassembly and Assembly Instructions
High Voltage are generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
Be sure to switch off all the power supply before performing each of the below action.

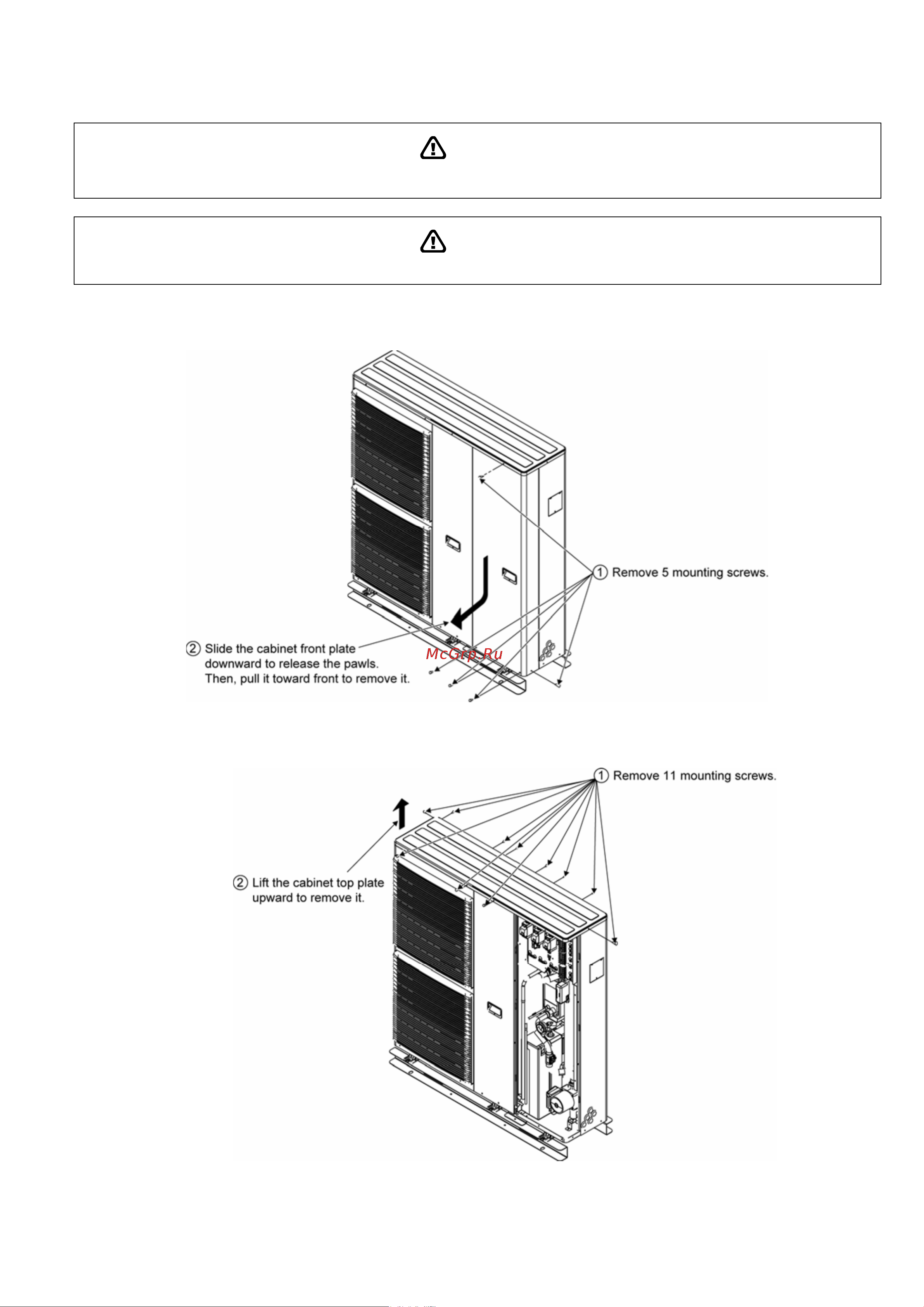

17.1 To Remove The Cabinet Front Plate
17.2 To Remove The Cabinet Top Plate
WARNING
WARNING
