Panasonic WH-MDF12C9E8 [107/125] To remove transformer and electronic controller board
![Panasonic WH-MDF16C9E8 [107/125] To remove transformer and electronic controller board](/views2/1832879/page107/bg6b.png)
107

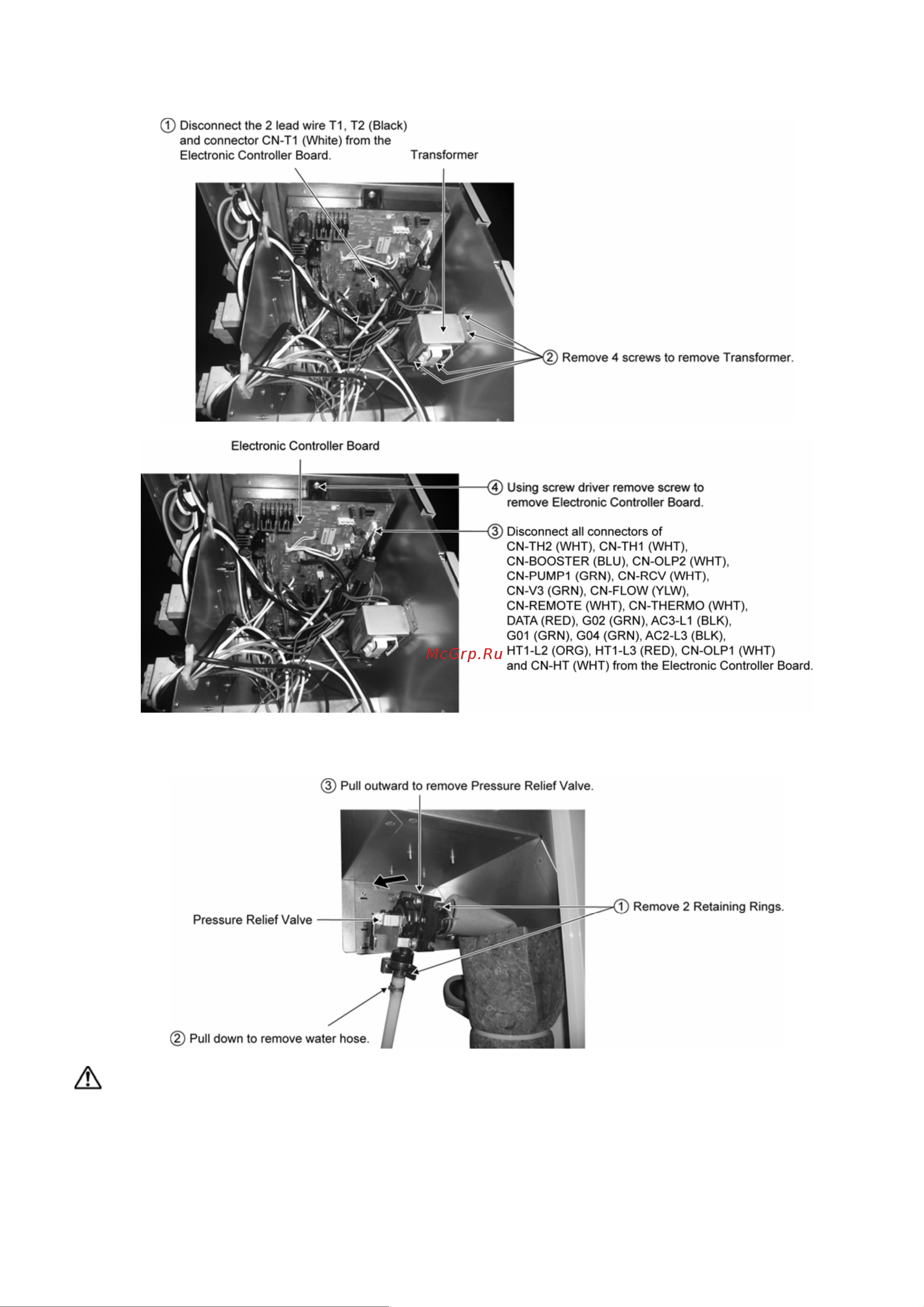

17.6 To Remove Transformer and Electronic Controller Board
17.7 To Remove Pressure Relief Valve
When reinstall the water pipe, use grease or water at the joining.
