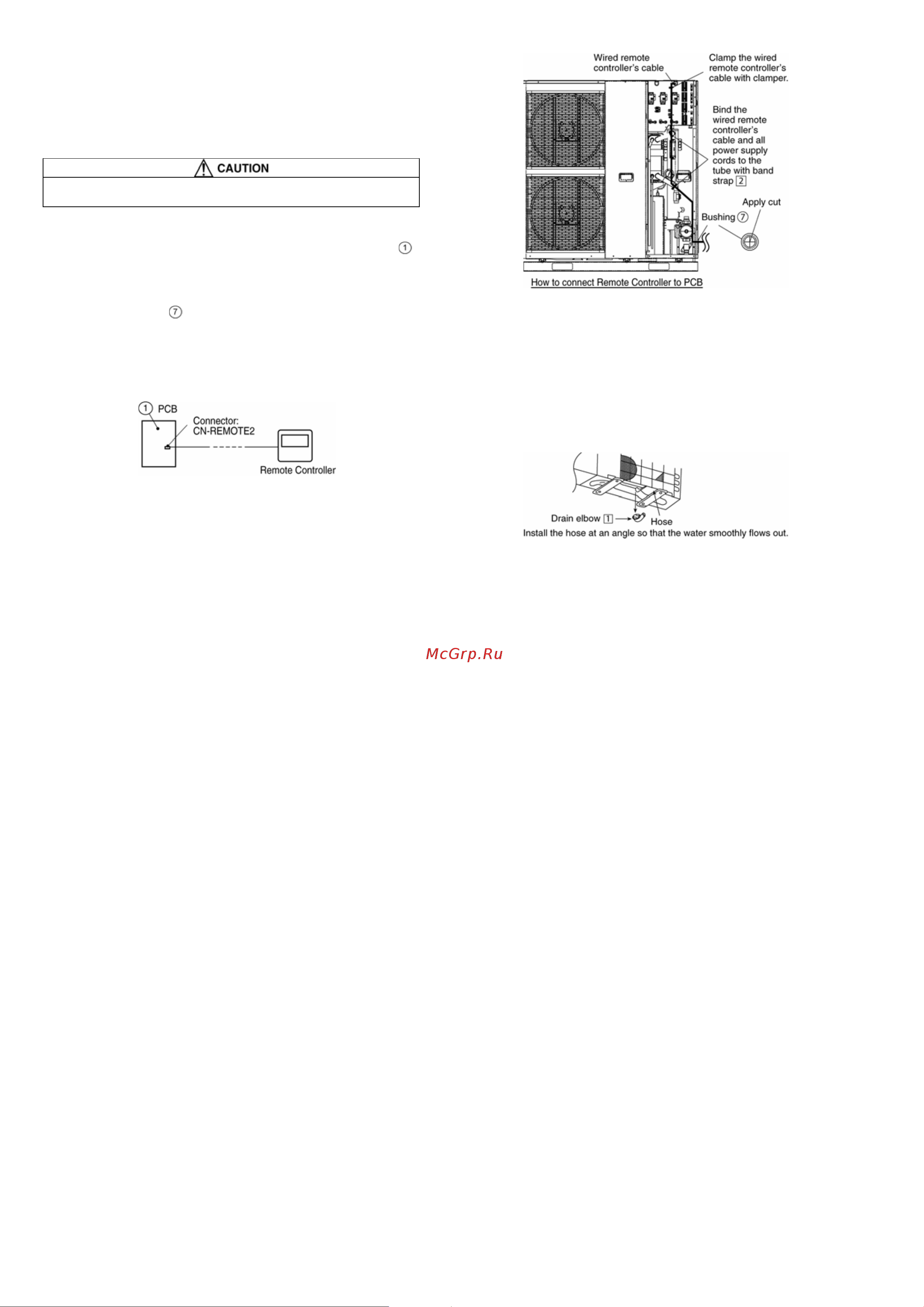

46
11.4.3.3 Connecting The Remote
Controller Cable To Monobloc
Unit
Be sure to turn off the main power before installing and connecting
the remote controller. Otherwise, it will cause the electrical shock.
1. Remove the cabinet front plate and cabinet top plate.
2. Connect the remote controller’s connector to PCB
-
CN-REMOTE2 as shown in below illustration. (Refer
wiring diagram for detail.)
3. Guide the remote controller cable through the clamper
and Bushing
.
(Refer illustration “How to connect Remote Controller
to PCB” for detail.)
4. Reinstall the cabinet front plate and cabinet top plate
after connection complete.
11.4.3.4 Disposal of Monobloc Unit Drain
Water
If the unit is used in an area where temperature falls
below 0°C for 2 or 3 days in succession, it is
recommended not to use a drain elbow, for the drain
water freezes and the fan will not rotate.
