117

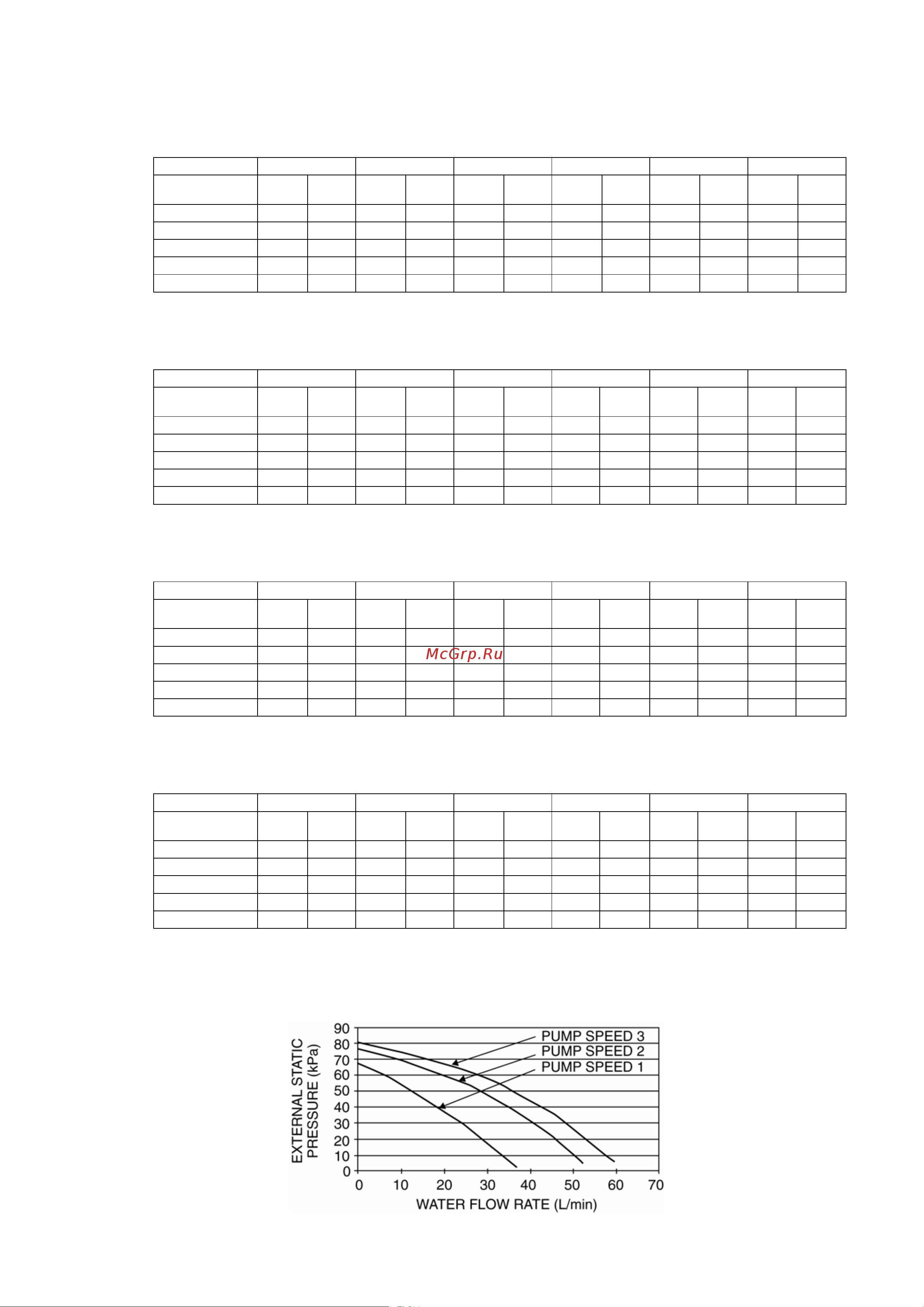

18.2 Heating Capacity Table
18.2.1 WH-MDF09C3E8
Water Out 30 35 40 45 50 55
Outdoor Air Capacity
Input
Power
Capacity
Input
Power
Capacity
Input
Power
Capacity
Input
Power
Capacity
Input
Power
Capacity
Input
Power
-15 8650 3100 8300 3250 7950 3450 7600 3650 7150 3750 6700 3850
-7 9350 2950 9000 3200 8850 3500 8700 3800 8300 3850 7900 3900
2 9310 2390 9000 2550 9000 2820 9000 3090 8900 3530 8800 3980
7 9000 1580 9000 1900 9000 2200 9000 2500 9000 2800 9000 3100
25 9000 1090 9000 1280 8730 1480 8460 1680 8280 1860 8100 2040
18.2.2 WH-MDF12C9E8
Water Out 30 35 40 45 50 55
Outdoor Air Capacity
Input
Power
Capacity
Input
Power
Capacity
Input
Power
Outdoor
Air
Capacity
Input
Power
Capacity
Input
Power
Capacity
-15 9300 3500 8900 3660 8500 3830 8100 3990 7500 4090 7000 4200
-7 10400 3410 10000 3700 9600 3900 9200 4100 8700 4200 8200 4310
2 11800 3140 11400 3340 11000 3570 10600 3780 9800 3980 9100 4180
7 12000 2140 12000 2570 12000 3000 12000 3430 12000 3820 12000 4200
25 12000 1420 12000 1700 11800 1980 11700 2270 11500 2530 11400 2780
18.2.3 WH-MDF14C9E8
Water Out 30 35 40 45 50 55
Outdoor Air Capacity
Input
Power
Capacity
Input
Power
Capacity
Input
Power
Outdoor
Air
Capacity
Input
Power
Capacity
Input
Power
Capacity
-15 9900 3910 9500 4050 9000 4190 8600 4330 7900 4450 7300 4560
-7 11100 3730 10700 4000 10200 4200 9800 4400 9100 4570 8500 4740
2 12900 3510 12400 3730 11900 3950 11400 4170 10400 4290 9500 4400
7 14000 2600 14000 3110 14000 3630 14000 4140 13600 4610 13300 5080
25 14000 1750 14000 2100 14000 2450 14000 2800 14000 3050 14000 3440
18.2.4 WH-MDF16C9E8
Water Out 30 35 40 45 50 55
Outdoor Air Capacity
Input
Power
Capacity
Input
Power
Capacity
Input
Power
Outdoor
Air
Capacity
Input
Power
Capacity
Input
Power
Capacity
-15 10600 4130 10300 4420 10000 4710 9700 5000 8800 4980 7900 4950
-7 11900 4070 11400 4300 10800 4500 10300 4700 9600 4850 9000 4990
2 13500 3780 13000 4000 12400 4220 11900 4440 10800 4500 9800 4550
7 16000 3250 16000 3780 16000 4310 16000 4840 15200 5150 14500 5450
25 16000 2350 16000 2730 16000 3110 16000 3490 16000 3710 15900 3930
18.3 Hydraulic Pump Performance
