12.1.5 Setting Water Outlet Temperature for Heat Mode

 The set temperature define the parameters for the outdoor ambient temperature dependent operation of the unit.

Where by the internal water setting temperature is determined automatically depending on the outdoor

temperature. The colder outdoor temperatures will result in warmer water and vice versa. The user has the

possibility to shift up or down the target water temperature by remote control setting.

OUT LO = Low outdoor ambient set temperature

OUT HI = High outdoor ambient set temperature

H2O LO = Water outlet set temperature at low outdoor ambient temperature

H2O HI = Water outlet set temperature at high outdoor ambient temperature

• Change in setting water outlet temperature is updated every 30 minutes

Water

Te m p .

H2O LO

H2O HI

OUT HI

OUT LO

Outdoor

Temp.

 Outdoor temperature is updated every 30 minutes when operation ON.

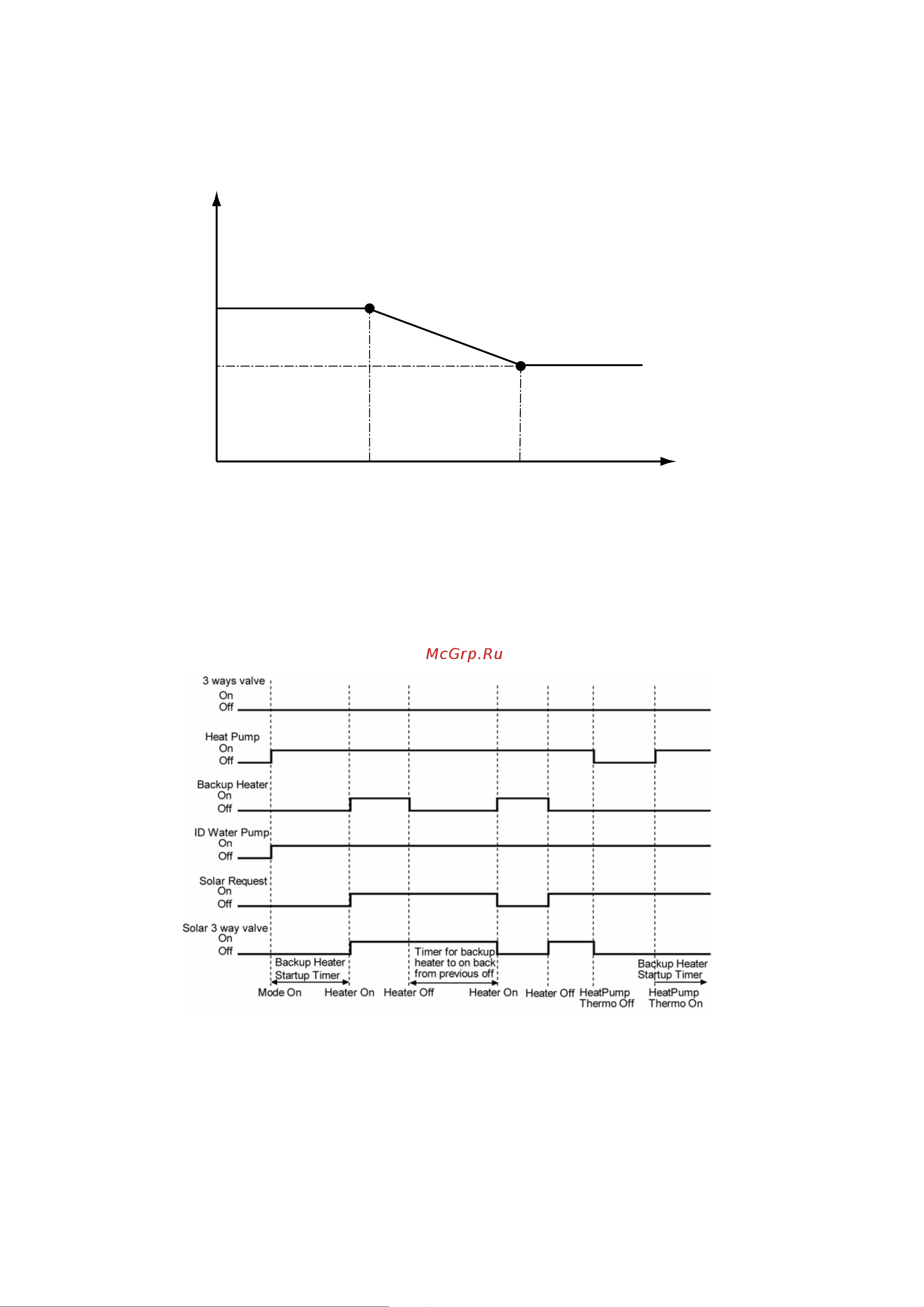

12.1.5.1 Heating Mode Operation Time Chart

Example

1 3 ways valve control:

o 3 ways valve switch and fix to heating side.

2 Heatpump operate follow normal heating operation.

3 Backup heater operate follow normal operation.

4 Solar 3 way valve operates follow solar operation specification.

12.1.6 Water Temperature Thermo Shift Setting

 Switchs are ignored during “PUMPDW” = ON.

 Switchs are ignored during “STATUS” = ON.
