 The equipment’s power supply 1 shall be connected to a suitable supply network, having service current capacity ≥100A per

phase. Please liaise with supply authority to ensure that the service current capacity at the interface point is sufficient for the

installation of the equipment.

 The equipment’s power supply 2 complies with IEC/EN 61000-3-12.

 The equipment’s power supply 2 shall be connected to a suitable supply network, with the following maximum permissible

system impedance Z

max

greater than or equal to 858kW.

 The equipment’s power supply 1 shall be connected to a suitable supply network, having service current capacity ≥100A per

phase. Please liaise with supply authority to ensure that the service current capacity at the interface point is sufficient for the

installation of the equipment.

 The equipment’s power supply 2 complies with IEC/EN 61000-3-12.

 The equipment’s power supply 3 complies with IEC/EN 61000-3-12.

 The equipment’s power supply 3 shall be connected to a suitable supply network, with the following maximum permissible

system impedance Z

max

WH-MDF12C6E5, WH-MDF14C6E5, WH-MDF16C6E5 : 0.464 Ω

Please liaise with supply authority to ensure that the power supply 3 is connected only to a supply of that impedance or less.

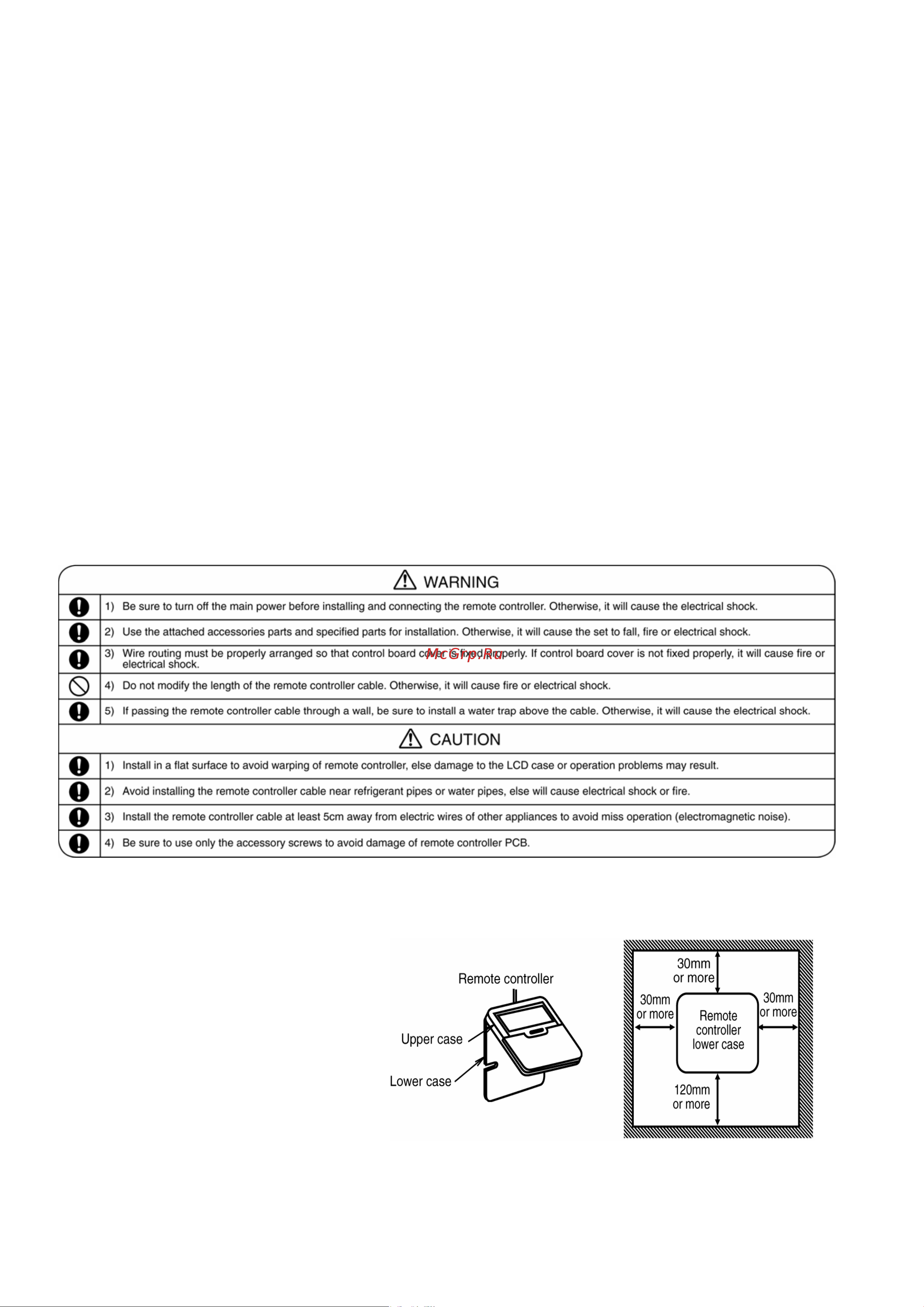

sunlight and high humidity.

 Install in a flat surface to avoid warping of

the remote controller. If installed to a wall

with an uneven surface, damage to the LCD

case or operation problems may result.

 Install in a place where the LCD can be

easily seen for operation. (Standard height

from the floor is 1.2 to 1.5 meters.)

 Avoid installing the remote controller cable

near refrigerant pipes or drain pipes, else
