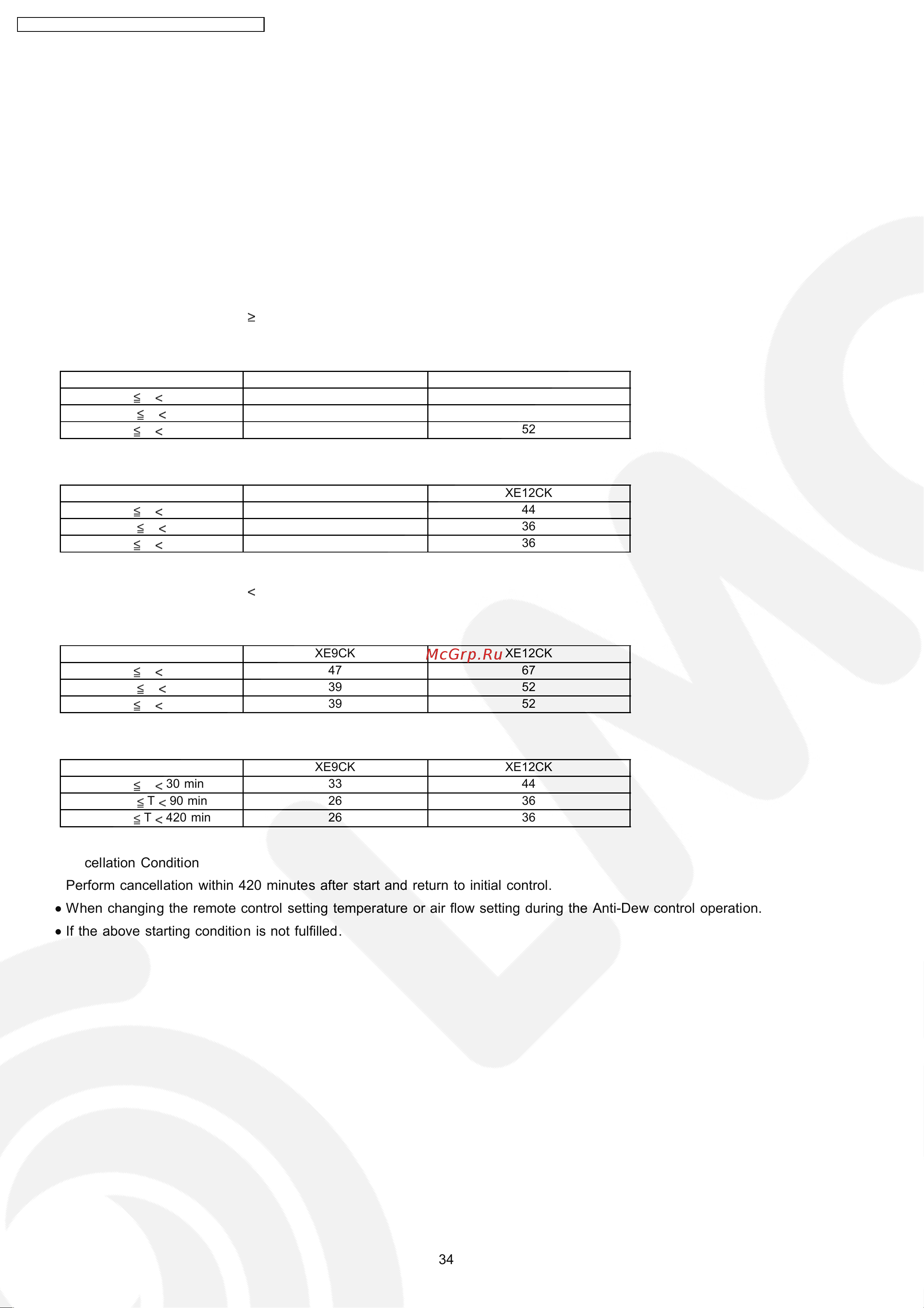

Panasonic CU-XE9CKE [34/110] Anti dew formation control
![Panasonic CU-XE9CKE [34/110] Anti dew formation control](/views2/1832883/page34/bg22.png)
8.2.2.4. Anti-Dew Formation Control
Anti-Dew control is perform if the following conditions is fulfilled during cooling/dry operation.
a. Control Start Condition
1) Indoor Intake Air Temperature 24°C & above
2) Outdoor Air Temperature Refer below
3) Remote Control Setting Temperature 16°C & above, below 30°C
4) Fan tab Refer below
Control start after 1) ~ 4) continued for more than 1 minutes.
b. Control Contents
* If the outdoor temperature 30°C
Me & above (include auto air flow)
XE9CK XE12CK
0 min T 30 min 47 67
30 min T 90 min 39 52
90 min T 420 min 39 52
Below Me
XE9CK XE12CK
0 min T 30 min 33 44
30 min T 90 min 26 36
90 min T 420 min 26 36
* If the outdoor temperature 30°C
Me & above (include auto air flow)
XE9CK XE12CK
0 min T 30 min 47 67
30 min T 90 min 39 52
90 min T 420 min 39 52
Below Me
XE9CK XE12CK
0 min T 30 min 33 44
30 min T 90 min 26 36
90 min T 420 min 26 36
c. Cancellation Condition
•
• •
• Perform cancellation within 420 minutes after start and return to initial control.
•
• •
• When changing the remote control setting temperature or air flow setting during the Anti-Dew control operation.
•
• •
• If the above starting condition is not fulfilled.
34
