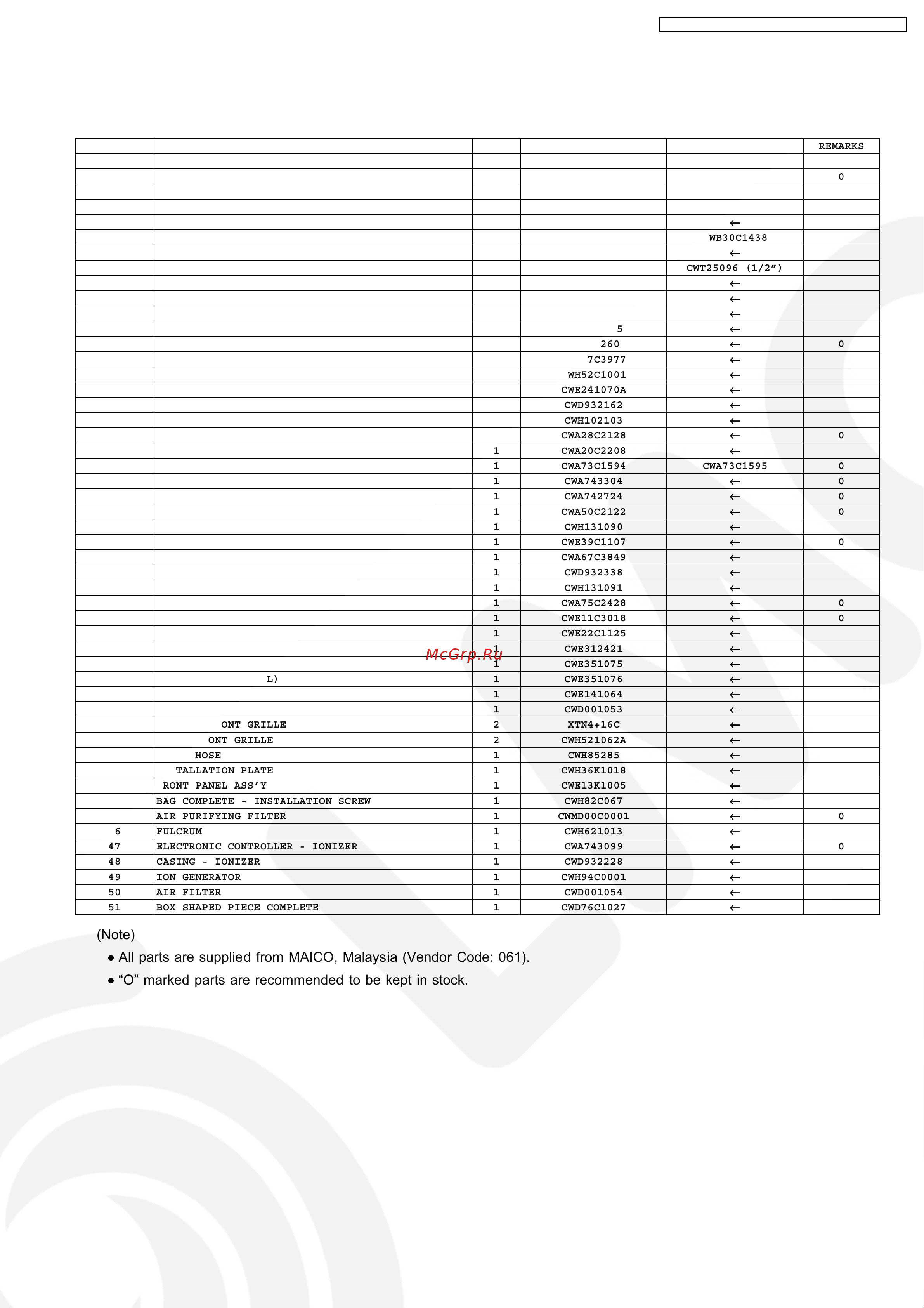

15 Replacement Parts List
<Model: CS-XE9CKE CS-XE12CKE>
REF. NO. PART NAME & DESCRIPTION QTY. CS-XE9CKE CS-XE12CKE REMARKS
1 CHASSY COMPLETE 1 CWD50C1246
←
←←
←
2 FAN MOTOR 1 CWA981121
←
←←
←
0
3 CROSS FLOW FAN COMPLETE 1 CWH02C1028
←
←←
←
4 BEARING ASS’Y 1 CWH64K007
←
←←
←
5 SCREW - CROSS FLOW FAN 1 CWH4580304
←
←←
←
6 EVAPORATOR 1 CWB30C1439 CWB30C1438
7 FLARE NUT 1 CWT25086 (1/4”)
←
←←
←
8 FLARE NUT 1 CWT25087 (3/8”) CWT25096 (1/2”)
9 INTAKE AIR SENSOR HOLDER 1 CWH32142
←
←←
←
10 DISCHARGE GRILLE COMPLETE 1 CWE20C2280
←
←←
←
11 VERTICAL VANE 12 CWE241088
←
←←
←
12 CONNECTING BAR 1 CWE261035
←
←←
←
13 AIR SWING MOTOR 2 CWA98260
←
←←
←
0
14 LEAD WIRE - AIR SWING MOTOR 1 CWA67C3977
←
←←
←
15 CAP - DRAIN TRAY 1 CWH52C1001
←
←←
←
16 HORIZONTAL VANE 1 CWE241070A
←
←←
←
17 BACK COVER CHASSIS 1 CWD932162
←
←←
←
18 CONTROL BOARD CASING 1 CWH102103
←
←←
←
19 TERMINAL BOARD COMPLETE 1 CWA28C2128
←
←←
←
0
20 POWER SUPPLY CORD 1 CWA20C2208
←
←←
←
21 ELECTRONIC CONTROLLER - MAIN 1 CWA73C1594 CWA73C1595 0
22 ELECTRONIC CONTROLLER - P. SUPPLY 1 CWA743304
←
←←
←
0
23 ELECTRONIC CONTROLLER - RECEIVER 1 CWA742724
←
←←
←
0
24 SENSOR COMPLETE 1 CWA50C2122
←
←←
←
0
25 CONTROL BOARD FRONT COVER 1 CWH131090
←
←←
←
26 ELECTRONIC CONTROLLER - INDICATOR 1 CWE39C1107
←
←←
←
0
27 LEAD WIRE - AIR SWING MOTOR 1 CWA67C3849
←
←←
←
28 INDICATOR HOLDER 1 CWD932338
←
←←
←
29 CONTROL BOARD TOP COVER 1 CWH131091
←
←←
←
30 REMOTE CONTROL COMPLETE 1 CWA75C2428
←
←←
←
0
31 FRONT GRILLE COMPLETE 1 CWE11C3018
←
←←
←
0
32 INTAKE GRILLE 1 CWE22C1125
←
←←
←
33 CONTROL PANEL 1 CWE312421
←
←←
←
34 DECORATION BASE (R) 1 CWE351075
←
←←
←
35 DECORATION BASE (L) 1 CWE351076
←
←←
←
36 GRILLE DOOR 1 CWE141064
←
←←
←
37 AIR FILTER 1 CWD001053
←
←←
←
38 SCREW - FRONT GRILLE 2 XTN4+16C
←
←←
←
39 CAP - FRONT GRILLE 2 CWH521062A
←
←←
←
40 DRAIN HOSE 1 CWH85285
←
←←
←
41 INSTALLATION PLATE 1 CWH36K1018
←
←←
←
42 FRONT PANEL ASS’Y 1 CWE13K1005
←
←←
←
43 BAG COMPLETE - INSTALLATION SCREW 1 CWH82C067
←
←←
←
44 AIR PURIFYING FILTER 1 CWMD00C0001
←
←←
←
0
46 FULCRUM 1 CWH621013
←
←←
←
47 ELECTRONIC CONTROLLER - IONIZER 1 CWA743099
←
←←
←
0
48 CASING - IONIZER 1 CWD932228
←
←←
←
49 ION GENERATOR 1 CWH94C0001
←
←←
←
50 AIR FILTER 1 CWD001054
←
←←
←
51 BOX SHAPED PIECE COMPLETE 1 CWD76C1027
←
←←
←
(Note)
•
• •
• All parts are supplied from MAICO, Malaysia (Vendor Code: 061).
•
• •
• “O” marked parts are recommended to be kept in stock.
95
