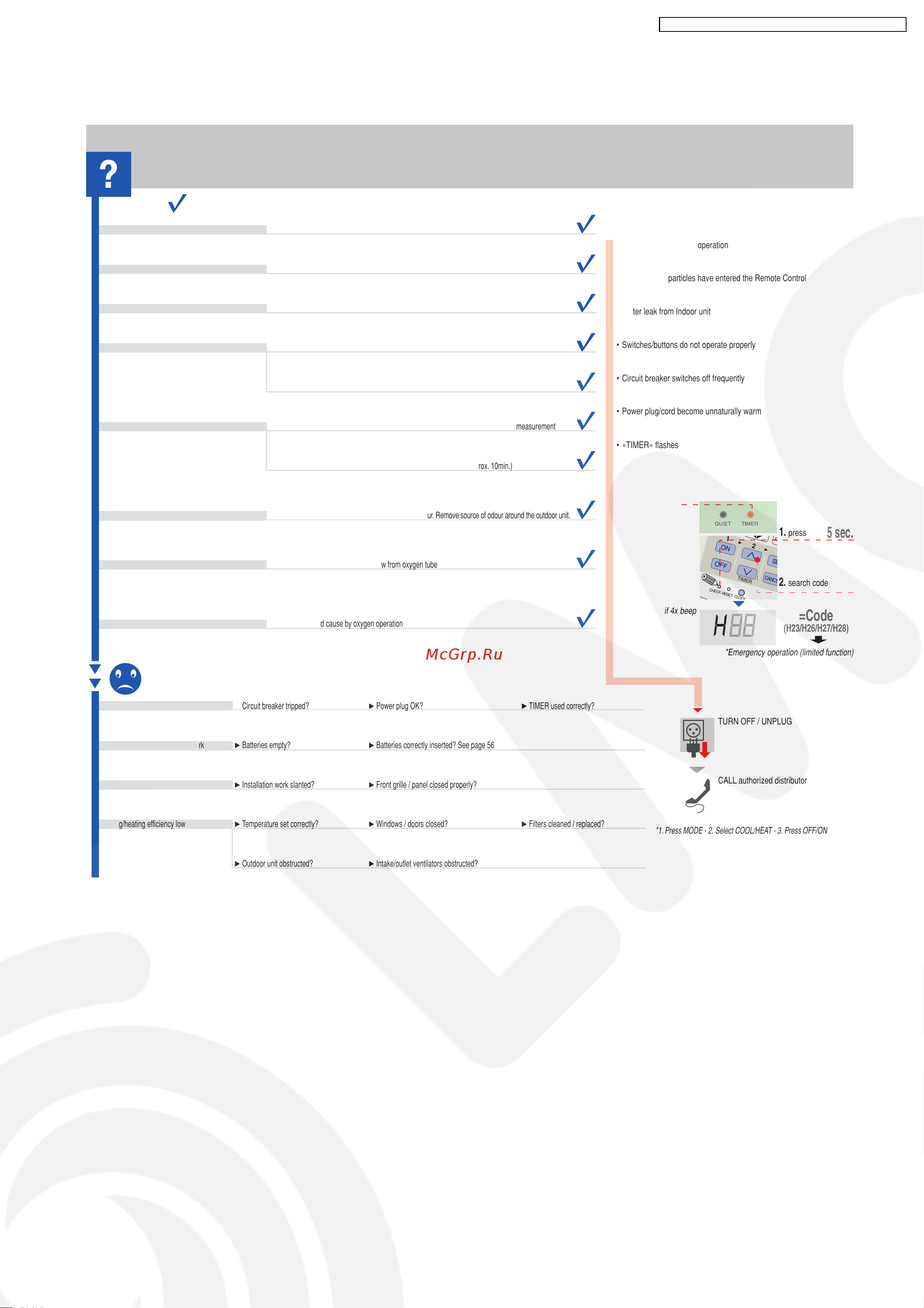

TROUBLESHOOTING
OK?
1
2
3
4
5
6
7
8
1
2
3
4
No problem
In case of...
• Abnormal noise during operation
• Water/foreign particles have entered the Remote Control
• Water leak from Indoor unit
• Switches/buttons do not operate properly
• Circuit breaker switches off frequently
• Power plug/cord become unnaturally warm
•«TIMER» flashes
!
No Operation 3 Circuit breaker tripped? 3 Power plug OK? 3 TIMER used correctly?
Remote control/display doesn’t work 3 Batteries empty? 3 Batteries correctly inserted? See page 56
Noise too loud 3 Installation work slanted? 3 Front grille / panel closed properly?
Cooling/heating efficiency low 3 Temperature set correctly? 3 Windows / doors closed? 3 Filters cleaned / replaced?
3 Outdoor unit obstructed? 3 Intake/outlet ventilators obstructed?
It sounds like water flowing... 3 Caused by refrigerant flow inside
Mist seems to emerge from the indoor unit 3 Condensation effect due to cooling
Outdoor unit emits water/steam 3 Condensed moisture due to cooling
Delayed air discharging 3 At COOL, SOFT DRY (Auto Fan Speed): Prevent odours from blowing out
3 At HEAT (POWER LED flashes): Prevent cold air from blowing out
Function stops suddenly 3 At COOL, SOFT DRY (Auto Fan Speed): Function interruptions to the internal temp. measurement
3 At HEAT (POWER LED flashes): Iced up outer device is defrosted (approx. 10min.)
Smell during oxygen operation 3 Oxygen brought in from the outside air may contain odour. Remove source of odour around the outdoor unit.
Soft splashing sound from indoor unit during oxygen operation
3 Sound emitted by high humidity airflow from oxygen tube
Slight increase in sound level from outdoor unit 3 Sound increased cause by oxygen operation
1.
press
CHECK
COOL
FAN
AUTO
RESETCHECK
CL
OCK
FA
OFF
CANC
E
ON
S
E
1
2
TIMER
AUTO
AUTO
✎
5 sec.
2.
search code
if 4x beep
=Code
(H23/H26/H27/H28)
*Emergency operation (limited function)
TURN OFF / UNPLUG
CALL authorized distributor
*1. Press MODE - 2. Select COOL/HEAT - 3. Press OFF/ON
57
CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE
