![Panasonic CU-XE9CKE [88/110] Indoor electronic controller removal procedures](/img/pdf.png)
Panasonic CU-XE9CKE [88/110] Indoor electronic controller removal procedures
![Panasonic CU-XE9CKE [88/110] Indoor electronic controller removal procedures](/views2/1832883/page88/bg58.png)

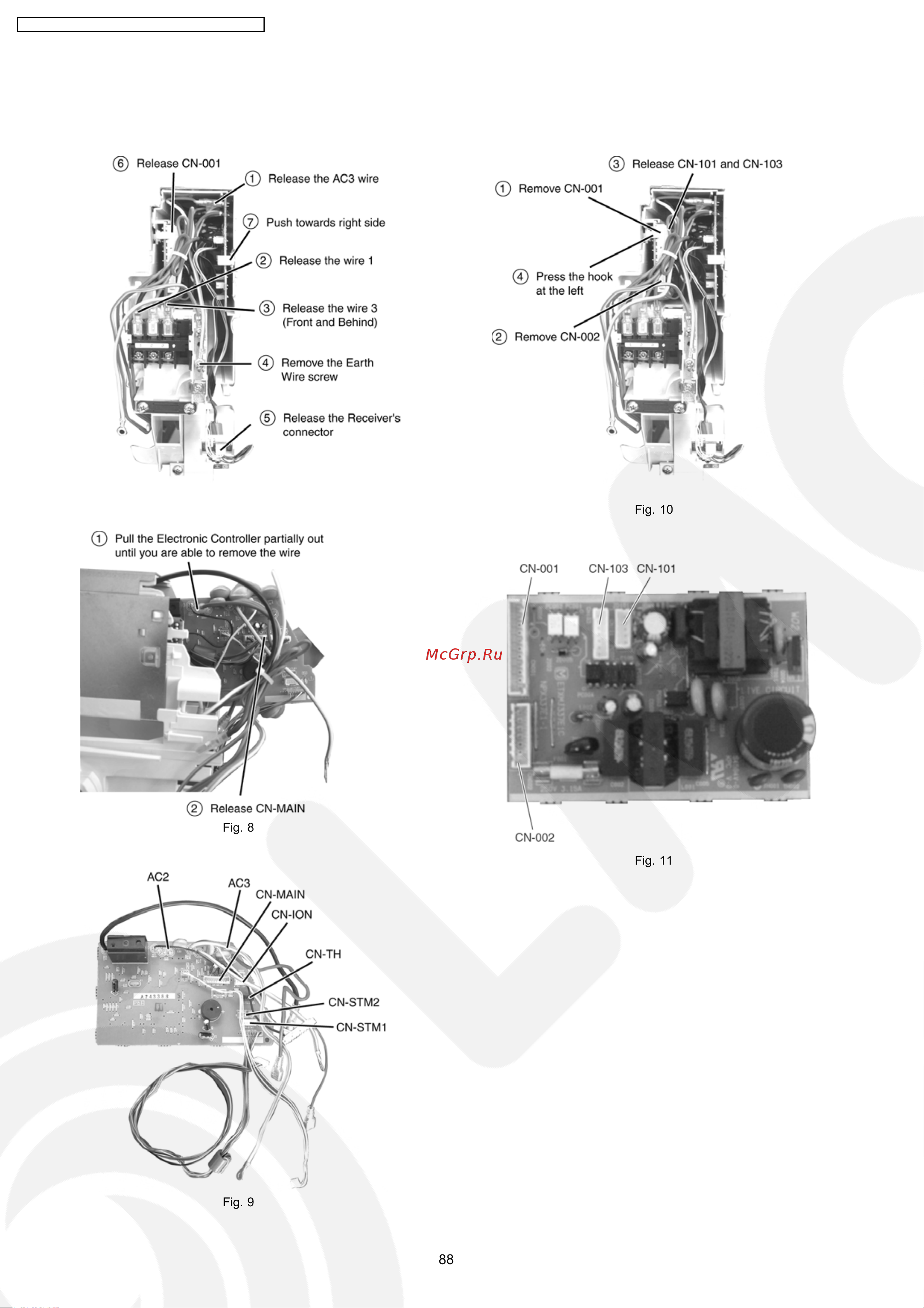

1. Remove Main Electronic Controller
Fig. 7
Fig. 8
Fig. 9
2. Remove Power Electronic Controller
Fig. 10
Fig. 11
12.4.2. Indoor Electronic Controller Removal Procedures
