![Panasonic CU-XE9CKE [7/110] Specifications are subject to change without notice for further improvement](/img/pdf.png)
Panasonic CU-XE9CKE [7/110] Specifications are subject to change without notice for further improvement

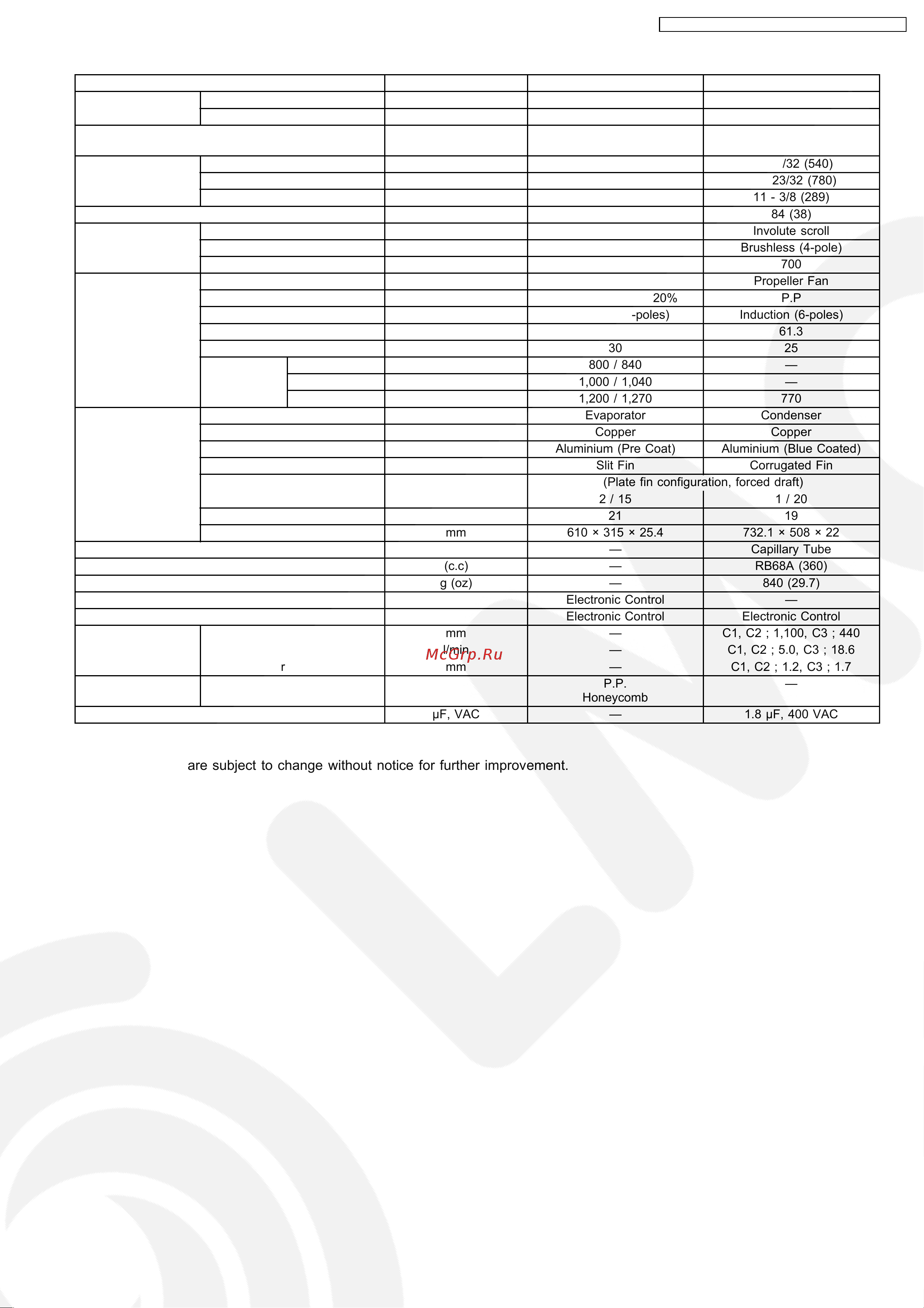

![Panasonic CS-XE9CKE / CU-XE9CKE [7/110] Specifications are subject to change without notice for further improvement](/views2/1832883/page7/bg7.png)
Unit CS-XE9CKE CU-XE9CKE
Drain
Hose
Inner diameter mm 12 —
Length m 0.65 —
Power Cord Length
Number of core-wire
2.1 m
3 core wires × 1.0 mm
2
—
—
Dimensions Height inch (mm) 10 - 26/32 (275) 21 - 9/32 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 9 - 9/32 (236) 11 - 3/8 (289)
Net Weight lb (kg) 22 (10.0) 84 (38)
Compressor Type — Involute scroll
Motor Type — Brushless (4-pole)
Rated Output W — 700
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% P.P
Motor Type Transistor (8-poles) Induction (6-poles)
Input W — 61.3
Rate Output W 30 25
Fan Speed Lo (Cool/Heat) rpm 800 / 840 —
Me (Cool/Heat) rpm 1,000 / 1,040 —
Hi (Cool/Heat) rpm 1,200 / 1,270 770
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue Coated)
Fin Type Slit Fin Corrugated Fin
Row / Stage (Plate fin configuration, forced draft)
2/15 1/20
FPI 21 19
Size (W × H × L) mm 610 × 315 × 25.4 732.1 × 508 × 22
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (c.c) — RB68A (360)
Refrigerant (R410A) g (oz) — 840 (29.7)
Thermostat Electronic Control —
Protection Device Electronic Control Electronic Control
Length mm — C1, C2 ; 1,100, C3 ; 440
Capillary Tube Flow Rate l/min — C1, C2 ; 5.0, C3 ; 18.6
Inner Diameter mm — C1, C2 ; 1.2, C3 ; 1.7
Air Filter Material
Style
P.P.
Honeycomb
—
Fan Motor Capacitor µF, VAC — 1.8 µF, 400 VAC
•
• •
• Specifications are subject to change without notice for further improvement.
7
CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE
