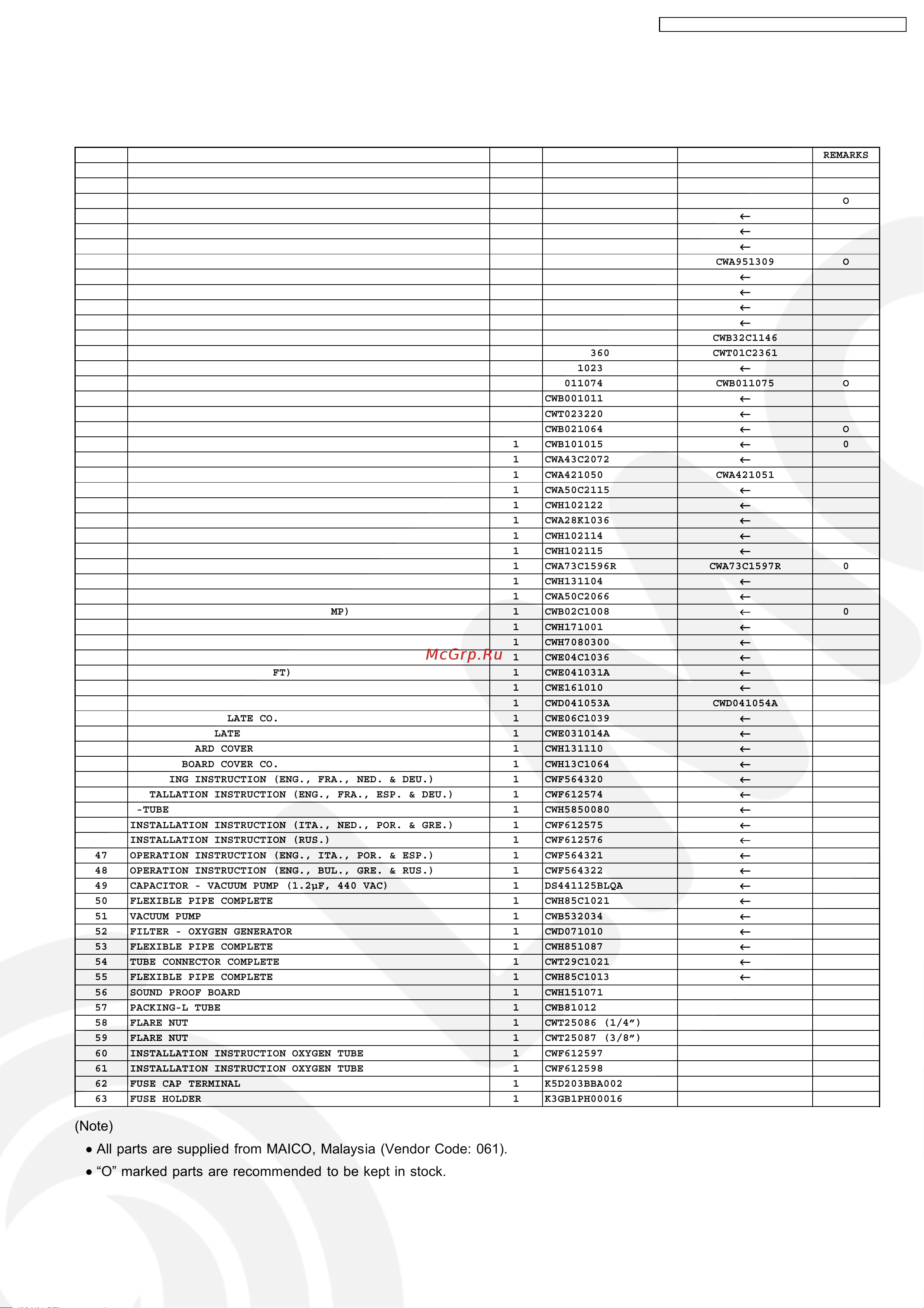

17 Replacement Parts List
<Model: CU-XE9CKE CU-XE12CKE>
REF NO. DESCRIPTION & NAME QTY. CU-XE9CKE CU-XE12CKE REMARKS
1 CHASSY ASSY 1 CWD50K2073
←
←←
←
2 ANTI-VIBRATION BUSHING 3 CWH50077
←
←←
←
3 COMPRESSOR 1 5CS102XEC
←
←←
←
O
4 NUT-COMPRESSOR MOUNT 3 CWH56000
←
←←
←
5 SOUND PROOF MATERIAL 1 CWG302111
←
←←
←
6 FAN MOTOR BRACKET 1 CWD541030
←
←←
←
7 FAN MOTOR 1 CWA951321 CWA951309 O
8 SCREW - FAN MOTOR BRACKET 2 CWH551060
←
←←
←
9 SCREW - FAN MOTOR MOUNT 4 CWH55406
←
←←
←
10 PROPELLER FAN ASSY 1 CWH03K1006
←
←←
←
11 NUT - PROPELLER FAN 1 CWH56053
←
←←
←
12 CONDENSER 1 CWB32C1145 CWB32C1146
13 TUBE ASS’Y (CAPILLARY TUBE) 1 CWT01C2360 CWT01C2361
14 HOLDER-COUPLING 1 CWH351023
←
←←
←
15 3 WAYS VALVE (GAS) 1 CWB011074 CWB011075 O
16 4 WAYS VALVE 1 CWB001011
←
←←
←
17 TUBE ASS’Y (STRAINER) 1 CWT023220
←
←←
←
18 2 WAYS VALVE (LIQUID) 1 CWB021064
←
←←
←
O
19 DRYER 1 CWB101015
←
←←
←
0
20 V-COIL COMPLETE 1 CWA43C2072
←
←←
←
21 REACTOR 1 CWA421050 CWA421051
22 SENSOR COMPLETE 1 CWA50C2115
←
←←
←
23 CONTROL BOARD CASING (SIDE) 1 CWH102122
←
←←
←
24 TERMINAL BOARD ASSY 1 CWA28K1036
←
←←
←
26 CONTROL BOARD CASING (BOTTOM) 1 CWH102114
←
←←
←
27 CONTROL BOARD CASING (TOP) 1 CWH102115
←
←←
←
28 ELECTRONIC CONTROLLER - MAIN 1 CWA73C1596R CWA73C1597R 0
29 CONTROL BOARD COVER (TOP) 1 CWH131104
←
←←
←
30 SENSOR COMPLETE 1 CWA50C2066
←
←←
←
31 2-WAY VALVE COMPLETE (OXYGEN PUMP) 1 CWB02C1008
←
←←
←
0
32 TERMINAL COVER 1 CWH171001
←
←←
←
33 NUT-TERMINAL COVER 1 CWH7080300
←
←←
←
34 CABINET SIDE PLATE CO. 1 CWE04C1036
←
←←
←
35 CABINET SIDE PLATE (LEFT) 1 CWE041031A
←
←←
←
36 HANDLE 1 CWE161010
←
←←
←
37 WIRE NET 1 CWD041053A CWD041054A
38 CABINET FRONT PLATE CO. 1 CWE06C1039
←
←←
←
39 CABINET TOP PLATE 1 CWE031014A
←
←←
←
40 CONTROL BOARD COVER 1 CWH131110
←
←←
←
41 CONTROL BOARD COVER CO. 1 CWH13C1064
←
←←
←
42 OPERATING INSTRUCTION (ENG., FRA., NED. & DEU.) 1 CWF564320
←
←←
←
43 INSTALLATION INSTRUCTION (ENG., FRA., ESP. & DEU.) 1 CWF612574
←
←←
←
44 L-TUBE 1 CWH5850080
←
←←
←
45 INSTALLATION INSTRUCTION (ITA., NED., POR. & GRE.) 1 CWF612575
←
←←
←
46 INSTALLATION INSTRUCTION (RUS.) 1 CWF612576
←
←←
←
47 OPERATION INSTRUCTION (ENG., ITA., POR. & ESP.) 1 CWF564321
←
←←
←
48 OPERATION INSTRUCTION (ENG., BUL., GRE. & RUS.) 1 CWF564322
←
←←
←
49 CAPACITOR - VACUUM PUMP (1.2µF, 440 VAC) 1 DS441125BLQA
←
←←
←
50 FLEXIBLE PIPE COMPLETE 1 CWH85C1021
←
←←
←
51 VACUUM PUMP 1 CWB532034
←
←←
←
0
52 FILTER - OXYGEN GENERATOR 1 CWD071010
←
←←
←
0
53 FLEXIBLE PIPE COMPLETE 1 CWH851087
←
←←
←
54 TUBE CONNECTOR COMPLETE 1 CWT29C1021
←
←←
←
55 FLEXIBLE PIPE COMPLETE 1 CWH85C1013
←
←←
←
56 SOUND PROOF BOARD 1 CWH151071
←
←←
←
57 PACKING-L TUBE 1 CWB81012
←
←←
←
58 FLARE NUT 1 CWT25086 (1/4”)
←
←←
←
59 FLARE NUT 1 CWT25087 (3/8”) CWT25096 (1/2”)
60 INSTALLATION INSTRUCTION OXYGEN TUBE 1 CWF612597
←
←←
←
61 INSTALLATION INSTRUCTION OXYGEN TUBE 1 CWF612598
←
←←
←
62 FUSE CAP TERMINAL 1 K5D203BBA002
←
←←
←
0
63 FUSE HOLDER 1 K3GB1PH00016
←
←←
←
0
(Note)
•
• •
• All parts are supplied from MAICO, Malaysia (Vendor Code: 061).
•
• •
• “O” marked parts are recommended to be kept in stock.
97
CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE
