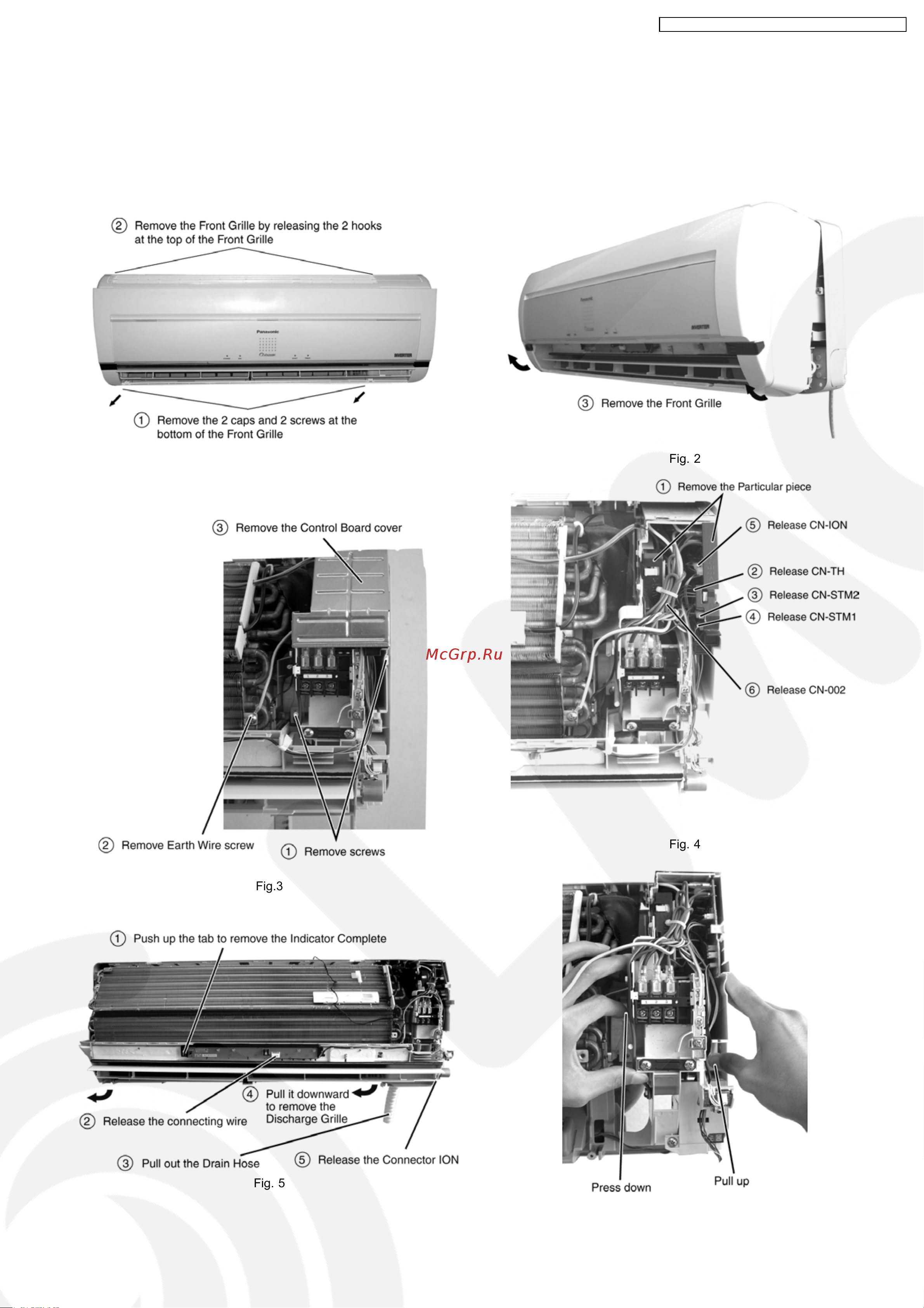

1. Remove the Front Grille
Fig. 1
2. Remove the Indoor Control Board
Fig.3
Fig. 5
Fig. 2
Fig. 4
Fig. 6
12.4. DISASSEMBLY OF PARTS
12.4.1. Indoor Control Board Removal Procedures
87
CS-XE9CKE CU-XE9CKE / CS-XE12CKE CU-XE12CKE
