107

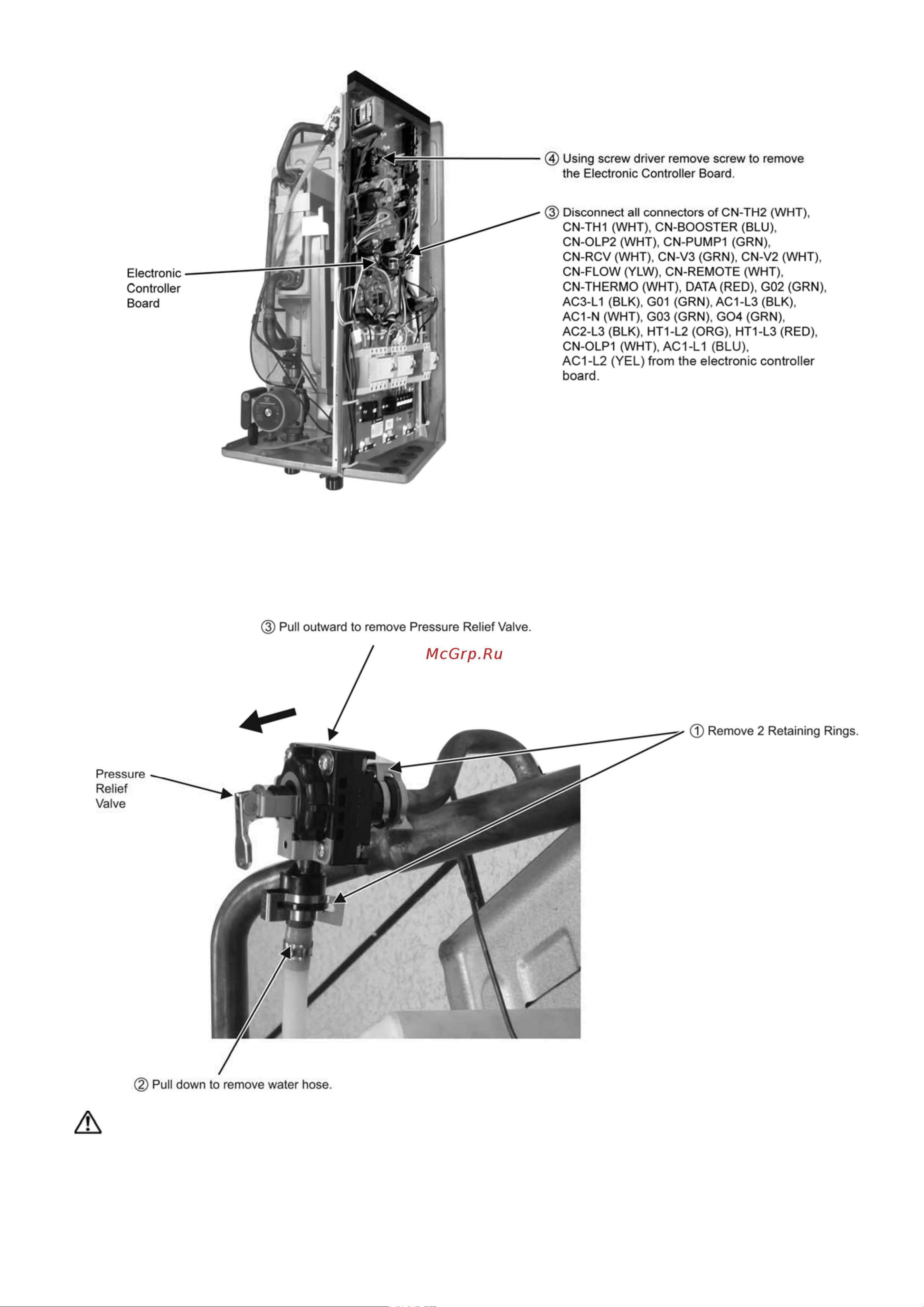

17.7 To Remove Pressure Relief Valve, Flow Switch, Water Pump and Bottle
Complete
When reinstall the water pipe, use grease or water at the joining.
