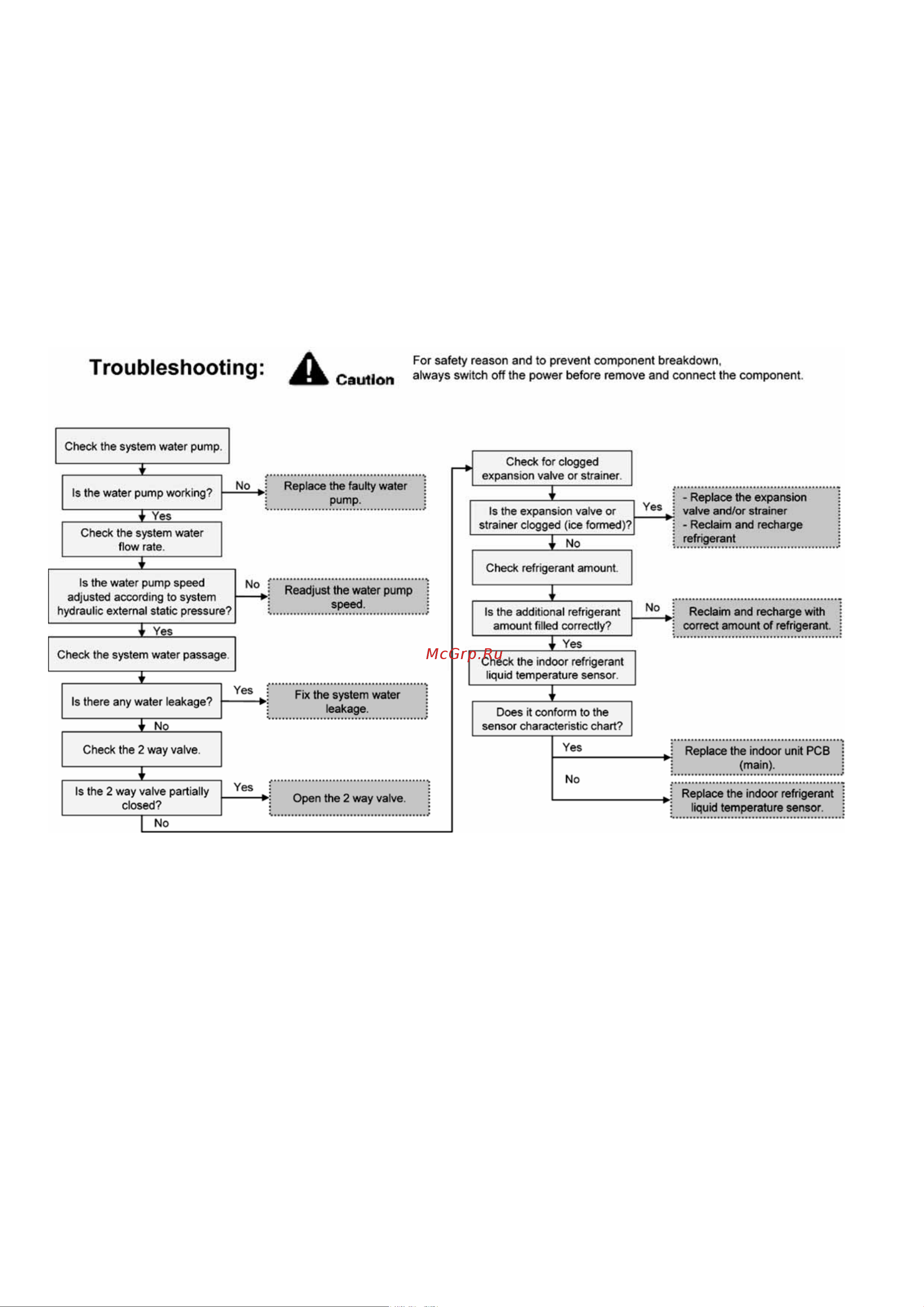

16.5.14 Indoor Freeze-up Protection (H99)

Malfunction Decision Conditions:

During anti-freezing control in cooling operation, when the indoor refrigerant liquid temperature < 0°C.

Malfunction Caused:

1 Faulty water pump.

2 Insufficient water flow rate in system.

3 Water leak in system.

4 2 way valve partially closed.

5 Clogged expansion valve or strainer.

6 Refrigerant shortage (refrigerant leakage).

7 Faulty indoor refrigerant liquid temperature sensor.

8 Faulty indoor unit PCB (main).
