Panasonic WH-SDF16C9E8 [76/125] Outdoor high pressure abnormality h64
![Panasonic WH-SDF16C9E8 [76/125] Outdoor high pressure abnormality h64](/views2/1833109/page76/bg4c.png)
76

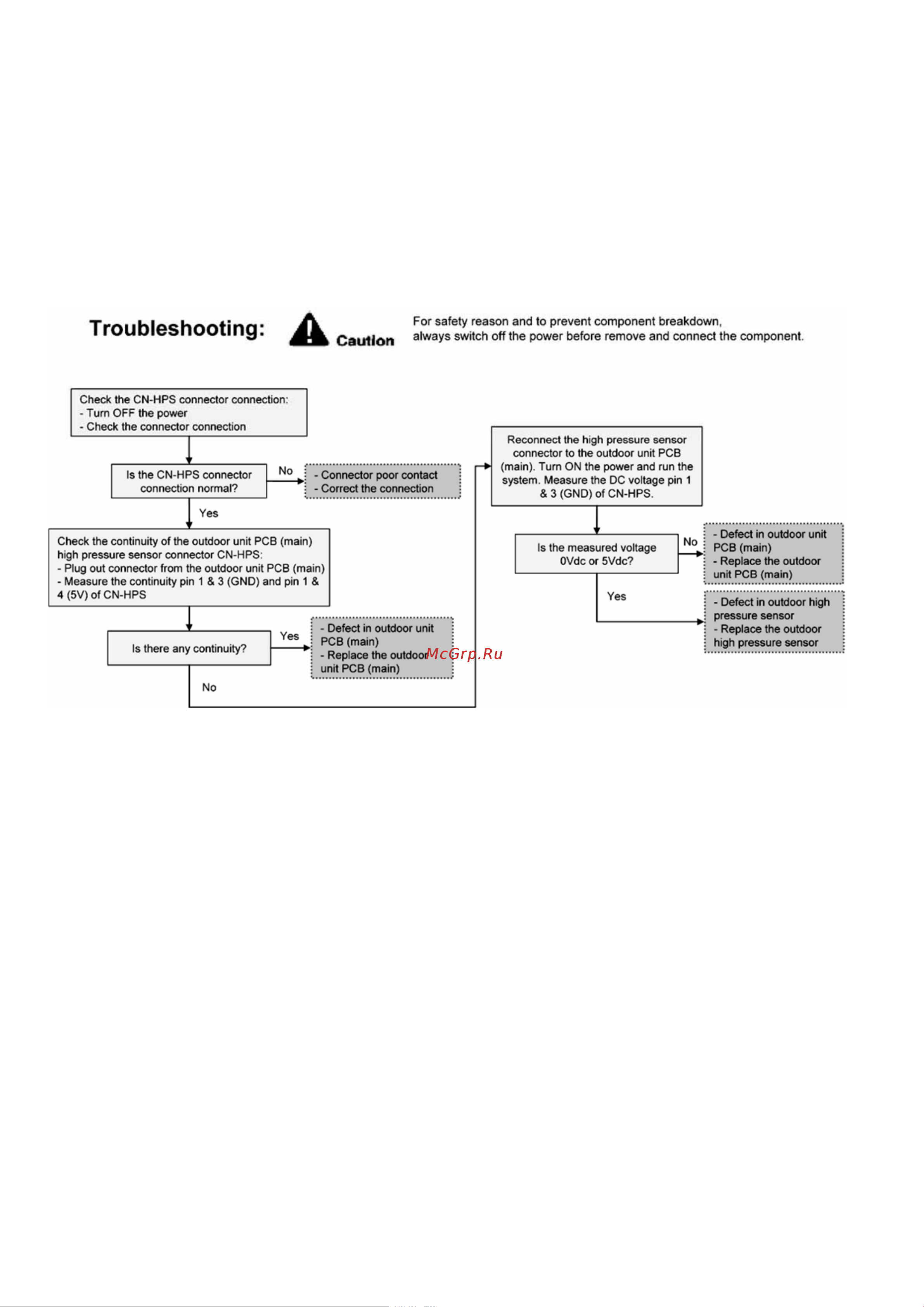

16.5.6 Outdoor High Pressure Abnormality (H64)
Malfunction Decision Conditions:
During operation of cooling and heating, when the outdoor high pressure sensor output signal is 0Vdc or 5Vdc.
Malfunction Caused:
1 Faulty connector connection.
2 Faulty sensor.
3 Faulty outdoor unit PCB (main).
Abnormality Judgment:
Continue 4 times in 20 minutes.
