Panasonic WH-SDF16C9E8 [86/125] 6 compressor rotation failure f14

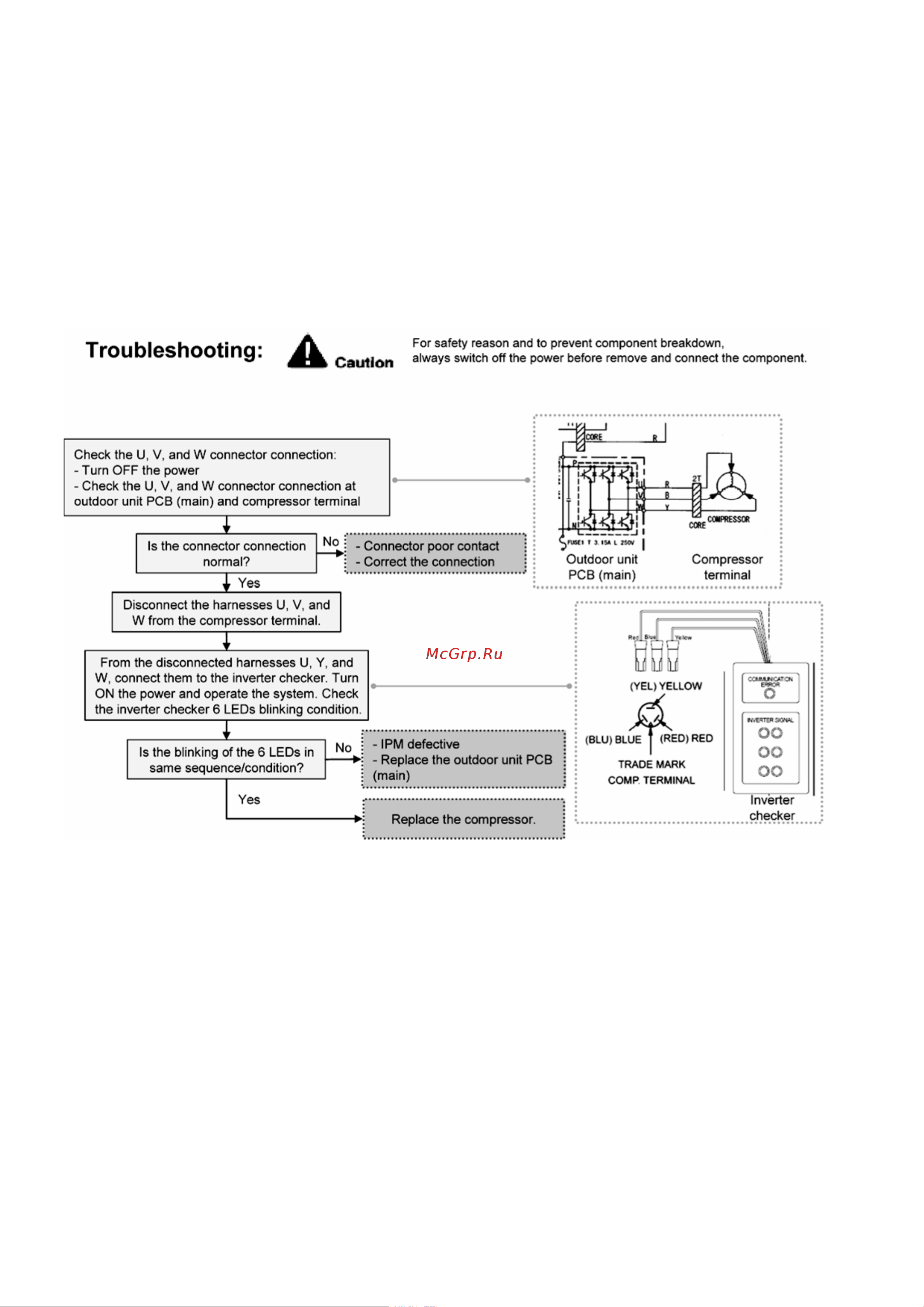

16.5.16 Compressor Rotation Failure (F14)

Malfunction Decision Conditions:

A compressor rotation failure is detected by checking the compressor running condition through the position

detection circuit.

Malfunction Caused:

1 Compressor terminal disconnect.

2 Faulty outdoor unit PCB (main).

3 Faulty compressor.

Abnormality Judgment:

Continue 4 times in 20 minutes.
