Panasonic WH-SDF16C9E8 [90/125] 0 ipm overheating f22
![Panasonic WH-SDF16C9E8 [90/125] 0 ipm overheating f22](/views2/1833109/page90/bg5a.png)
90

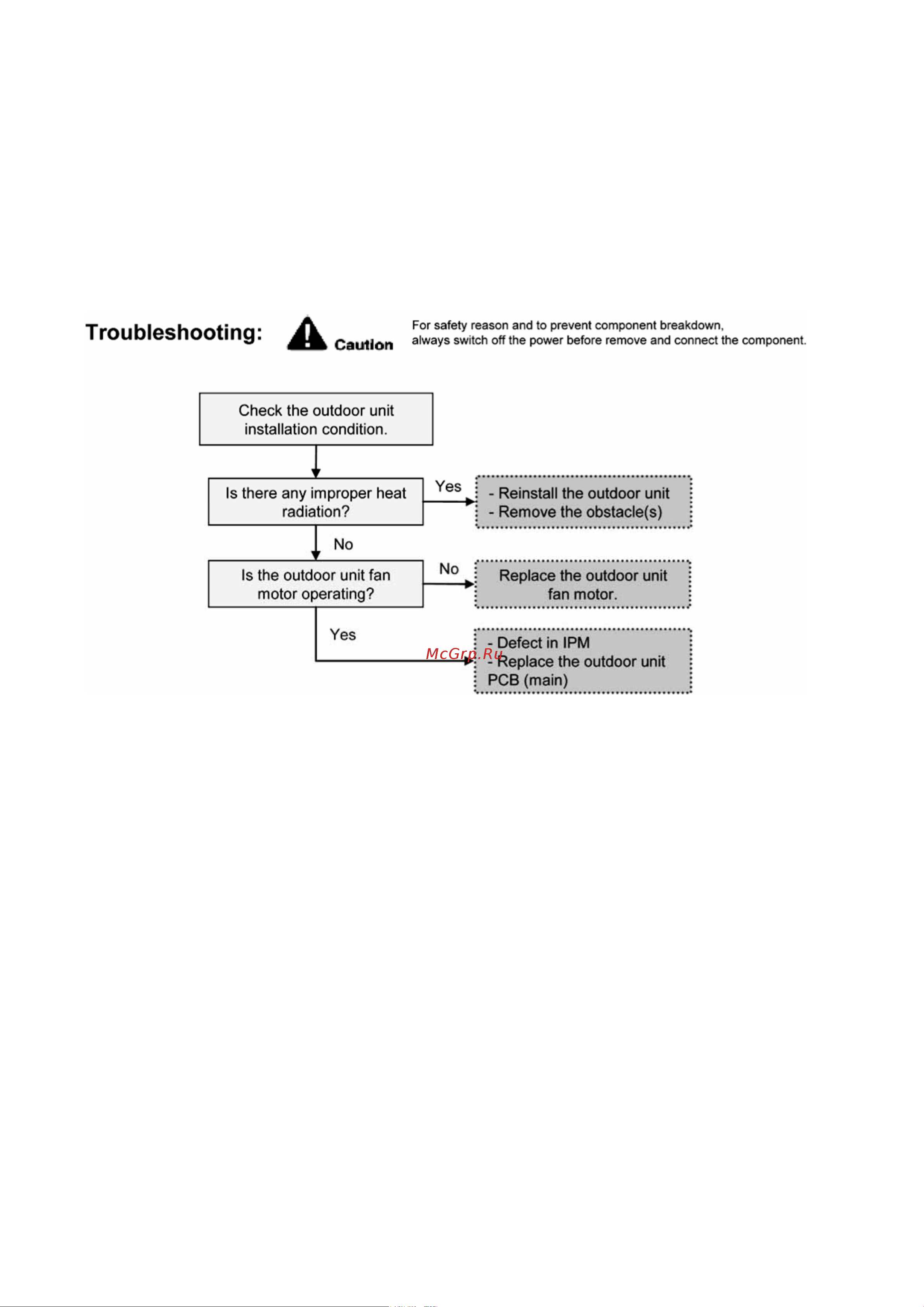

16.5.20 IPM Overheating (F22)
Malfunction Decision Conditions:
During operation of cooling and heating, when temperature 95°C is detected by the outdoor IPM temperature
sensor.
Malfunction Caused:
1 Faulty outdoor unit fan motor.
2 Faulty outdoor unit PCB (main).
Abnormality Judgment:
Continue 3 times in 30 minutes.
