Panasonic WH-SDF16C9E8 [109/125] Technical data
![Panasonic WH-SDF12C3E8 / WH-UD12CE8 [109/125] Technical data](/views2/1833109/page109/bg6d.png)
109
18. Technical Data
18.1 Operation Characteristics
18.1.1 WH-SDF09C3E8 WH-UD09CE8

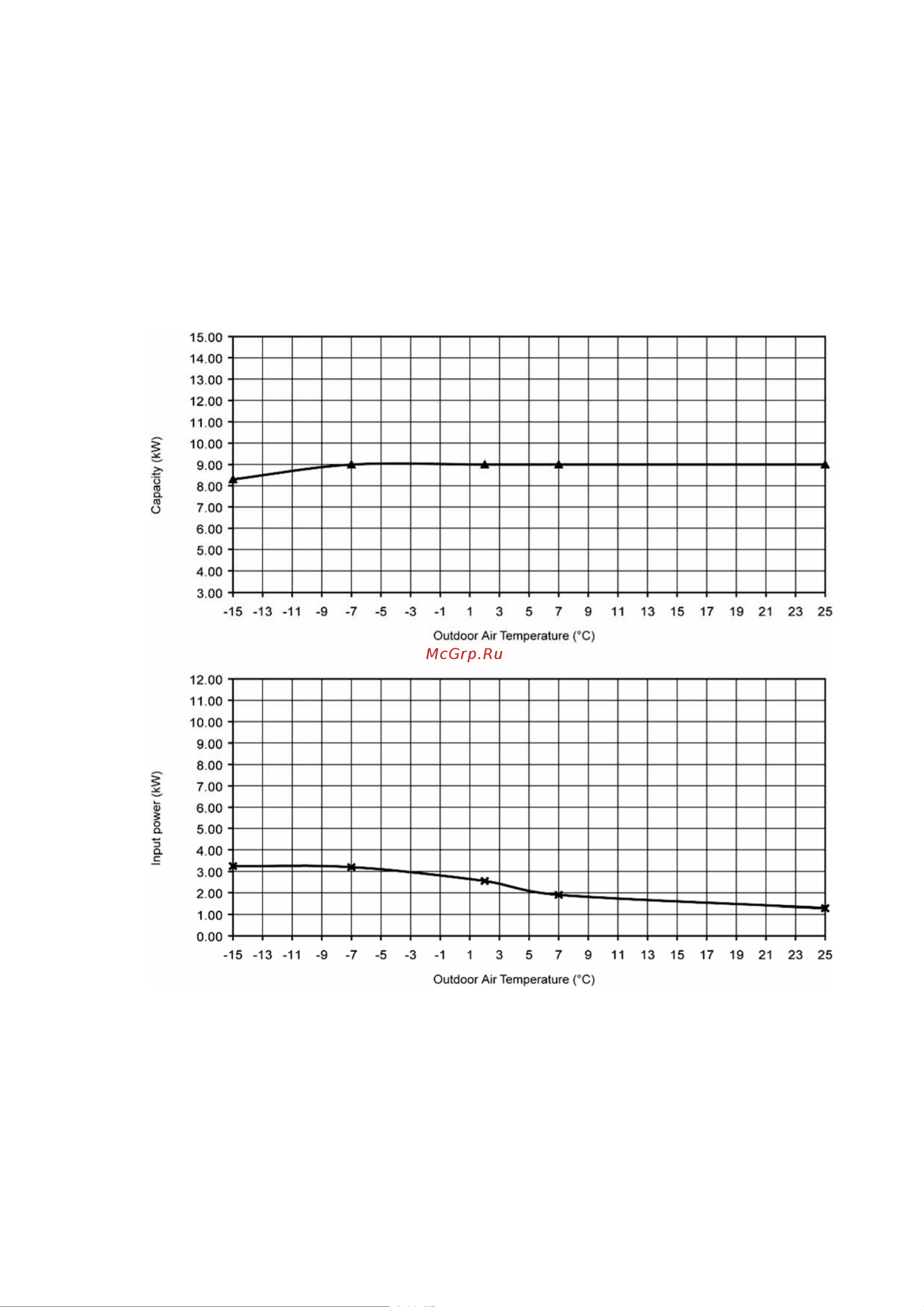

Heating Characteristics at Different Outdoor Air Temperature
Condition
Outdoor air temperature : 7°C (DBT), 6°C (WBT)
Indoor water inlet temperature : 30°C
Indoor water outlet temperature : 35°C
Piping length : 7m
