65
c. After finish, install back the Overload protector following the reverse order of step a & b.
7 External water filter (field supply)
Clean the external water filter in regularly basic.

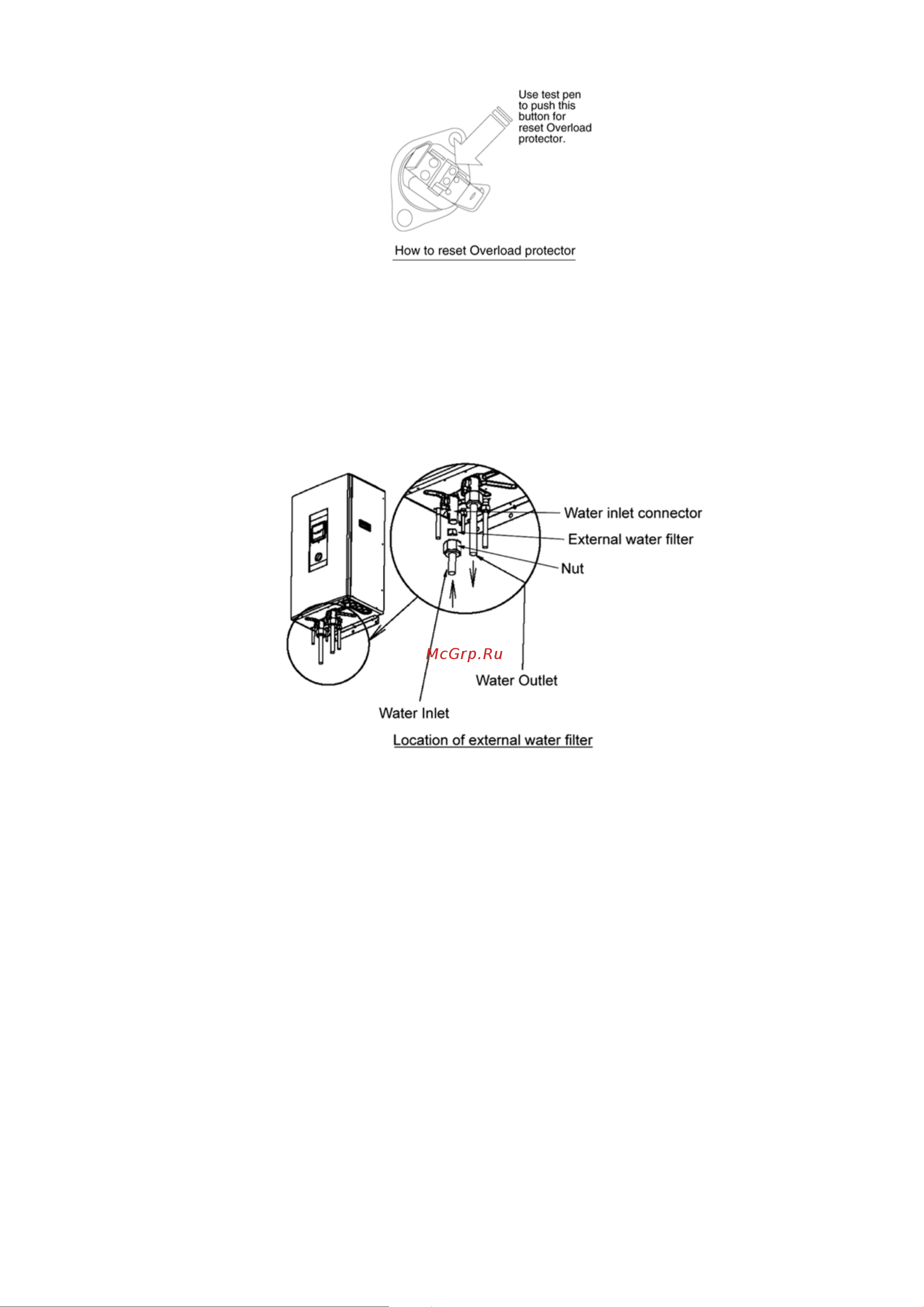

o External water filter is located inside the tube connector which is before water inlet connector of indoor
unit (indicated with “WATER IN”). (Refer to figure below)
o Use spanner to detach the tube connector nut.
o Take out the filter carefully so that not deforms it shape.
o Use tap water only to wash the residue on the filter. If necessary, gently use soft brush only to clean the
hard dirt.
o After clean, put it back to the original location and tighten the nut connection with torque wrench.
