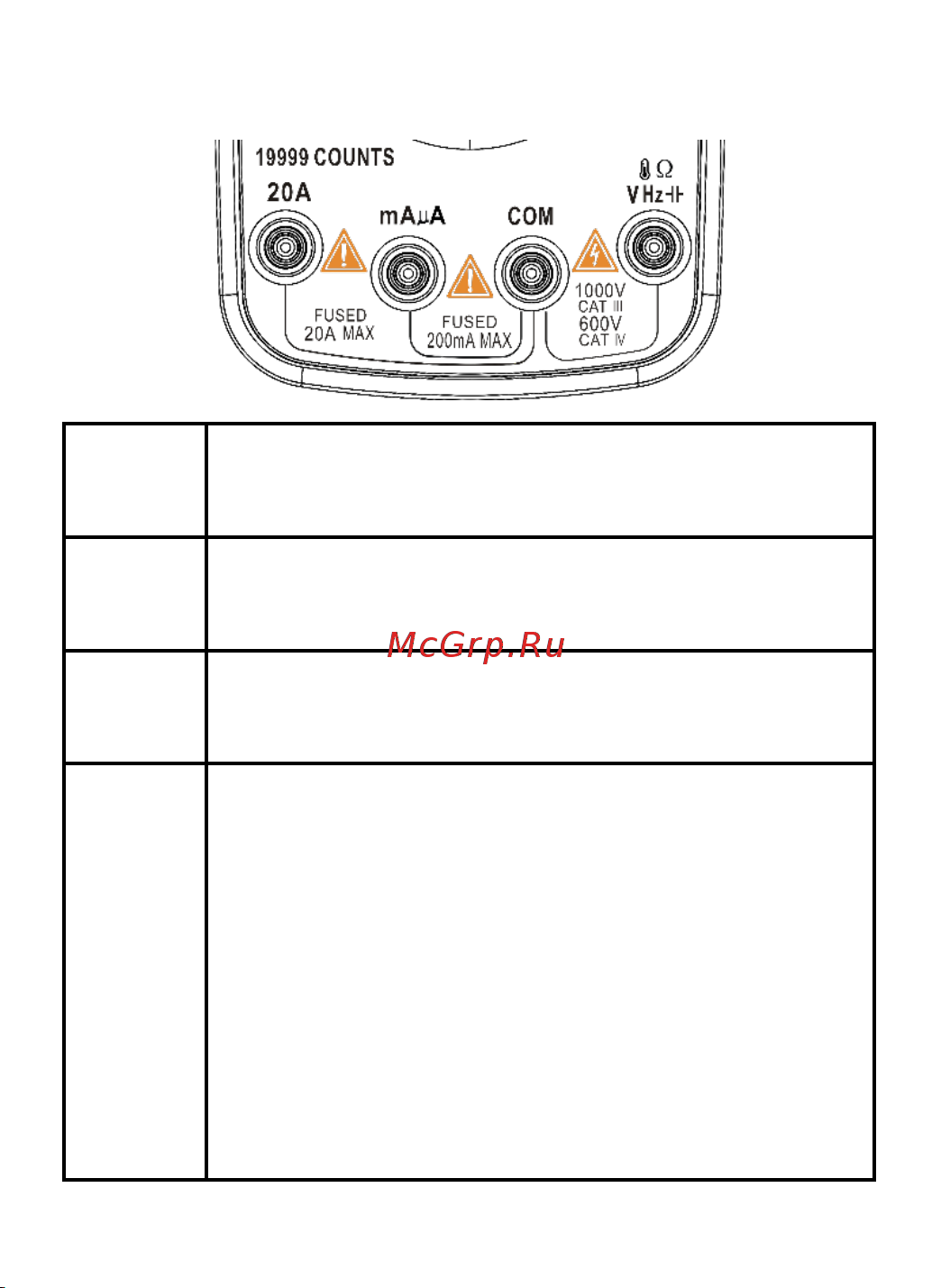

Input Terminals
9
20A
Input
terminal for AC/DC
current
measurements
to 19.999A.
mAμ
A
Input
terminal for AC/DC
current
measurements
to 199.99mA.
COM
Common
(return) terminal for
all
measurements
.
VΩHz
Input
terminal for the measurements of:
1
. AC/DC voltage
2
. Resistance
3
. Capacitance
4
. Frequency
5
. Temperature
6
. Continuity
7
. Diode
8
. Duty cycle
