Serial Console Server User Manual
156
IP Address Determination
If you are an administrator logging in for the first time, you need to access the
Serial Console Server in order to give it an IP address that users can connect to.
There are three methods to choose from. In each case, your client computer
must be on the same network segment as the Serial Console Server. After you
have connected and logged in you can give the Serial Console Server its fixed
network address. (See Network, page 103.)
The Local Console
The easiest way to assign an IP address is from the local console. Refer to First
Time Setup, page 33, for details on the procedure involved.
IP Installer
For client computers running Windows, an IP address can be assigned with the
IP Installer utility. The utility can be obtained from the Download area of our
website. Look under Driver/SW, and the model of your Serial Console Server.
After downloading the utility to your client computer, do the following:
1. Unzip the contents of IPInstaller.zip to a directory on your hard drive.
2. Go to the directory that you unzipped the IPInstaller program to and run

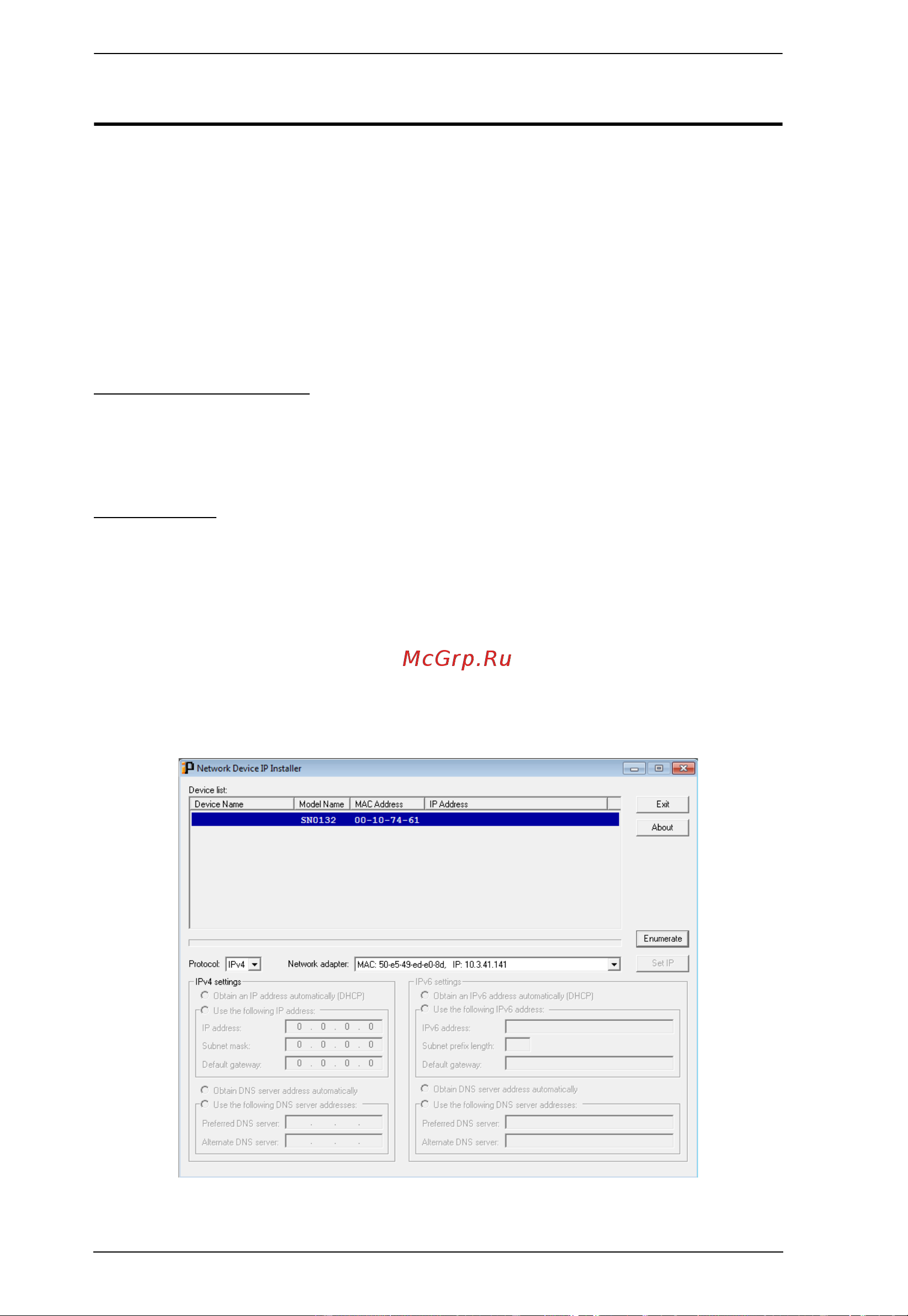

IPInstaller.exe. A dialog box similar to the one below appears:
