Chapter 3. Super Administrator Setup
35
Bits per Second: 9600, Data Bits: 8, Parity: None, Stop bits: 1, Flow Control:
None.

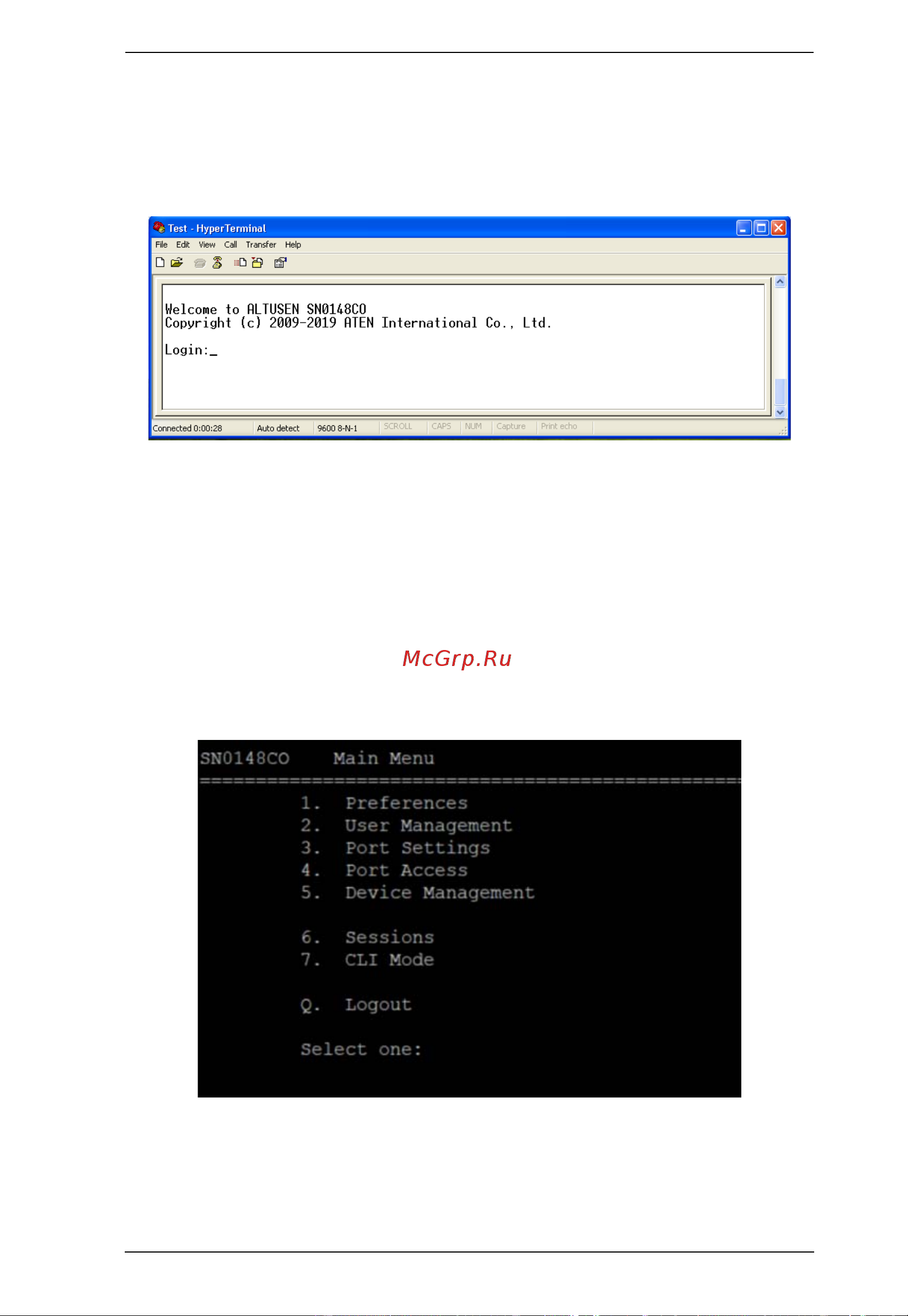

2. When configured correctly the login prompt appears, as shown here:
Since this is the first time you are logging in, use the default username:
administrator; and the default password: password.
After logging in, the system will force you to change the password, the
password must not be the same as the default.
Local Console Main Menu
After you log in via HyperTerminal or SNViewerUSB the text based menu
appears:
The main menu is the text based equivalent of the browser based configuration
and control functions described throughout this manual. You can reference the
information provided for the browser version as you work your way through
the submenus.
