Aten SN0148CO [181/203] Db 9 db 25 interface

Appendix

165

DB-9/DB-25 Interface

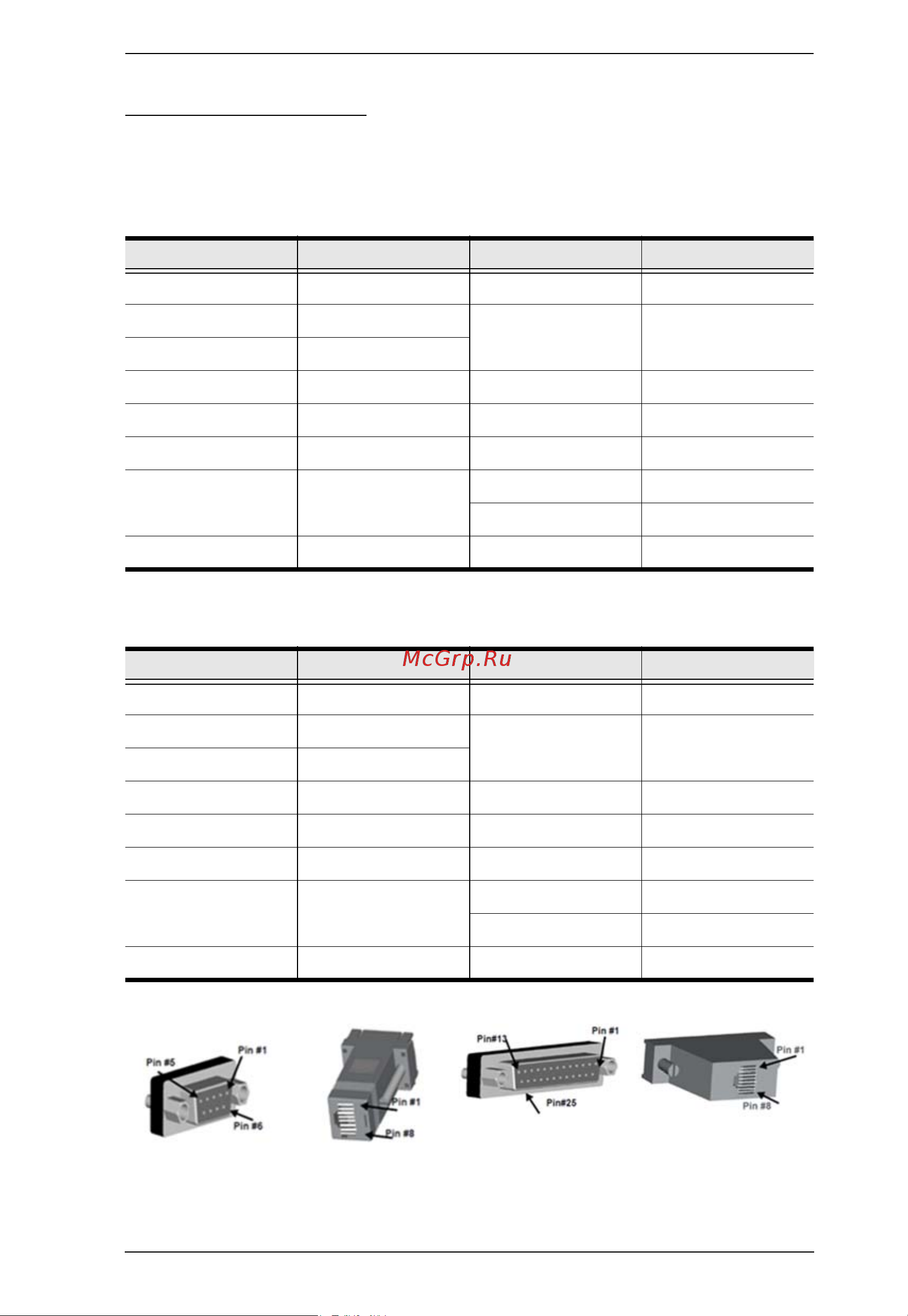

If you wish to use DB-9 or DB-25 interface, please refer to the tables below:

DB-9

DB-25

RJ-45 Pin Signal DB-9F Pin Signal

1 CTS 7 RTS

2DSR4DTR

5GND

3 RxD 3 TxD

4GND5GND

6 TxD 2 RxD

7DTR1GND

6DSR

8RTS8CTS

RJ-45 Pin Signal DB-25F Pin Signal

1 CTS 4 RTS

2DSR

20 DTR

5GND

3 RxD 2 TxD

4GND7GND

6 TxD 3 RxD

7DTR

6GND

8DSR

8RTS5CTS
