Chapter 1. Introduction

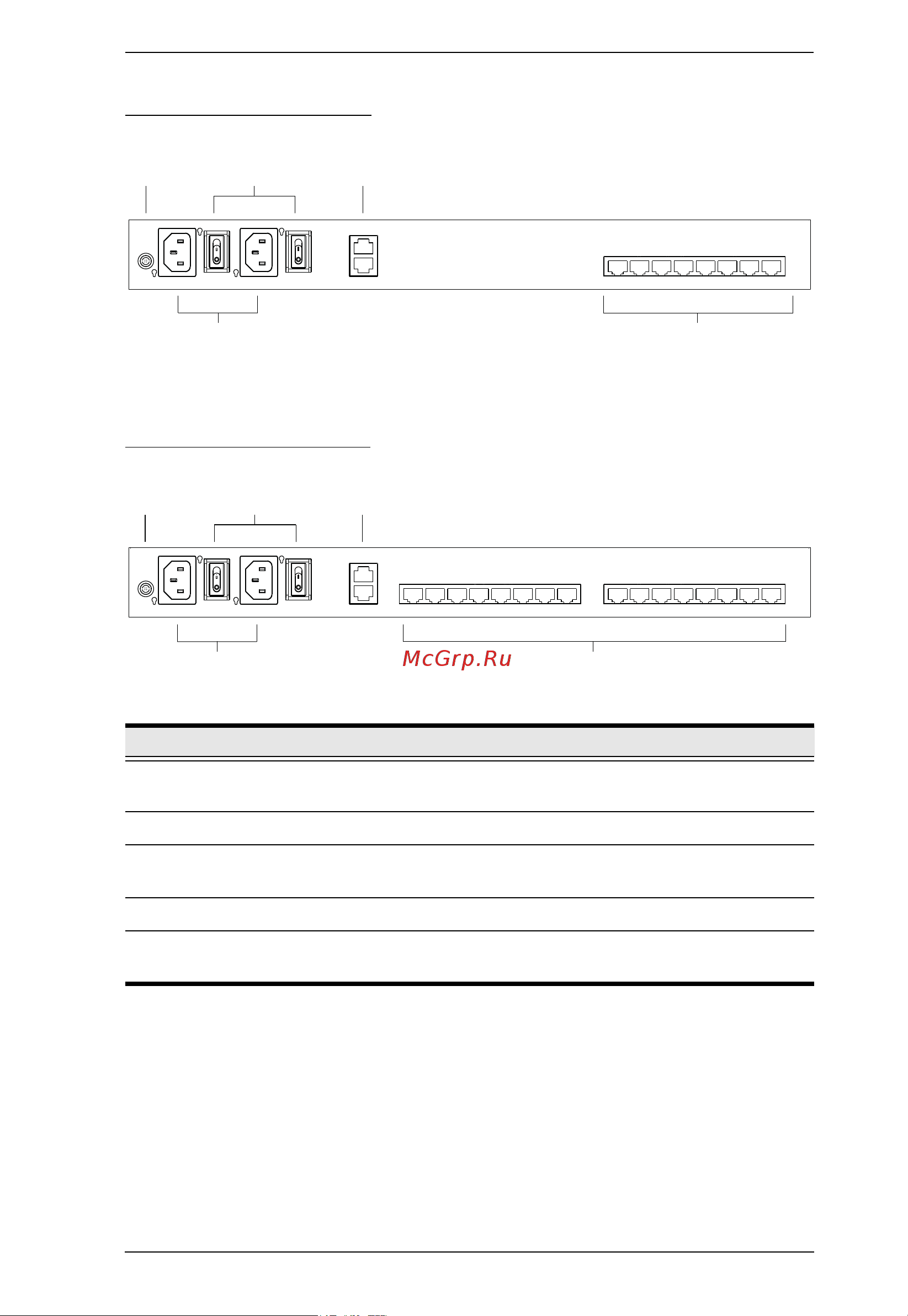

SN0108CO Rear View

SN0116CO Rear View

No. Component Description

1 grounding

terminal

The grounding wire that is used to ground the unit attaches

here.

2 power switches These standard rocker switches power the unit on and off.

3 LAN ports The cables that connect the unit to the primary and the

backup network interfaces (10/100/1000 Mbps) plug in here.

4 power sockets The power cable(s) plugs in here.

5 serial ports The Cat 5e cables that connect to the serial devices or

RJ45-to-Serial adapters plug in here.

2 3
