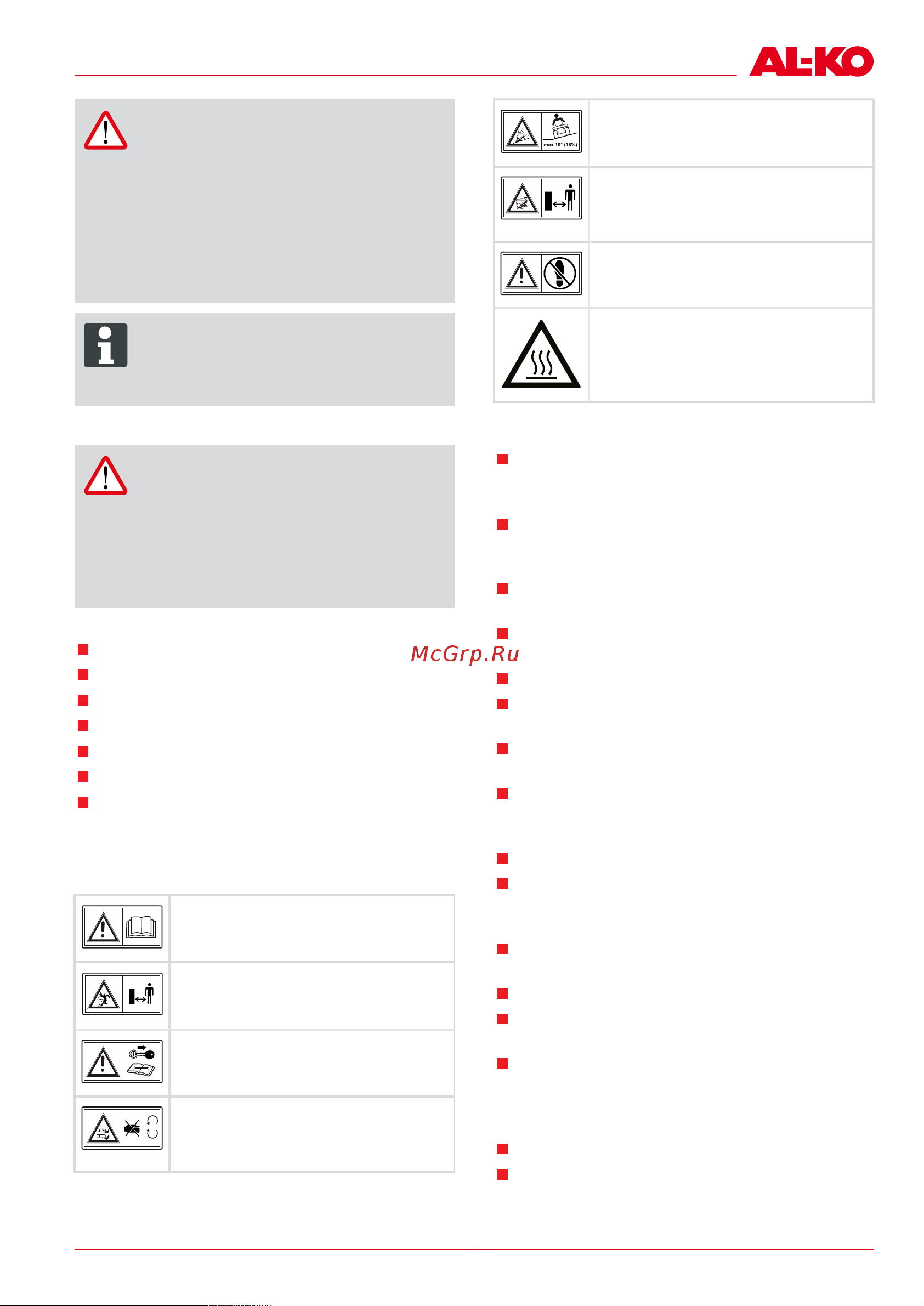

Product description
464865_a 31
WARNING!
Dangers due to overloading the lawn
tractor!
In particular, when using the trailer make
sure not to exceed the permitted pulling
forces and uphill/downhill gradients. Ex-
ceeding these values may exceed the
braking capacity of the lawn tractor and
lead to dangerous situations!
ADVICE
Bear in mind that the lawn tractor does
not have approval for road use, and thus
is not allowed to be driven on public
roads!
Safety and protective equipment
WARNING!
Danger if protective devices are remo-
ved or manipulated!
Do not operate with any protective de-
vices removed or manipulated. Defective
protective devices must be repaired or
renewed immediately!
Above all, the protective devices include:
Brake contact switch
Mower mechanism contact switch
Grass catcher contact switch
Seat contact switch
Mower mechanism covers
Sensor switch-off
Discharge channel contact switch
Safety symbols on the tractor
Symbols on the machine
Before starting operation, read the
operating instructions!
Keep third parties out of the dan-
ger area!
Remove the ignition key before
maintenance and repair work!
Important – danger! Keep your
hands and feet away from the
blade system!
Do not drive on gradients of more
than 10° (18%)!
Keep other people, especially
children and animals, out of the
working area during mowing!
Danger: Do not step here!
Risk of burns on hot surfaces!
SAFETY INSTRUCTIONS
Children, or other people who are not familiar
with the operating instructions, are not allo-
wed to use the machine
Observe local regulations regarding mini-
mum age requirements for operating the ma-
chine.
Do not allow children and young people to
play on the machine.
Only mow during daylight hours or with good
artificial lighting.
Keep others away from dangerous areas.
The user is responsible for accidents invol-
ving other people and their property.
Only use genuine spare parts and genuine
accessories.
Repairs on the machine must be carried out
by the manufacturer or by one of its customer
service centres.
Wear ear protectors
The lawn tractor does not have approval for
road use, and is not allowed to be driven on
public roads.
Do not mow during thunderstorms. No pro-
tection against lightning strikes
Do not carry any passengers on the machine
Do not mow on slopes with more than 10°
(18%) gradient
Do not work with the lawn tractor and/or with
accessories attached to it after you have con-
sumed alcohol, medicines which impair reac-
tions, or drugs.
Always mow across the slope.
Comply with the permitted operating times in
your vicinity.
