Outdoor unit

Installation Diagram

• Do not install the outdoor unit near sources of heat,

steam or ﬂammable gas.

• Do not install the unit in too windy or dusty

places. Do not install the unit where people often

pass.Select a place where the air discharge and

operating sound will not disturb the neighbours.

• Avoid installing the unit where it will be exposed

to direct sunlight ( other wise use a protection , if

necessary, that should not interfere with the air ﬂow).

• Reserve the spaces as shown in the picture for the

air to circulate freely.

• Install the outdoor unit in a safe and solid place.

• If the outdoor unit is subject to vibration, place

rubber gaskets onto the feet of the unit.

Before starting installation, decide on the position of

the indoor and outdoor units, taking into account the

minim- um space reserved around the units

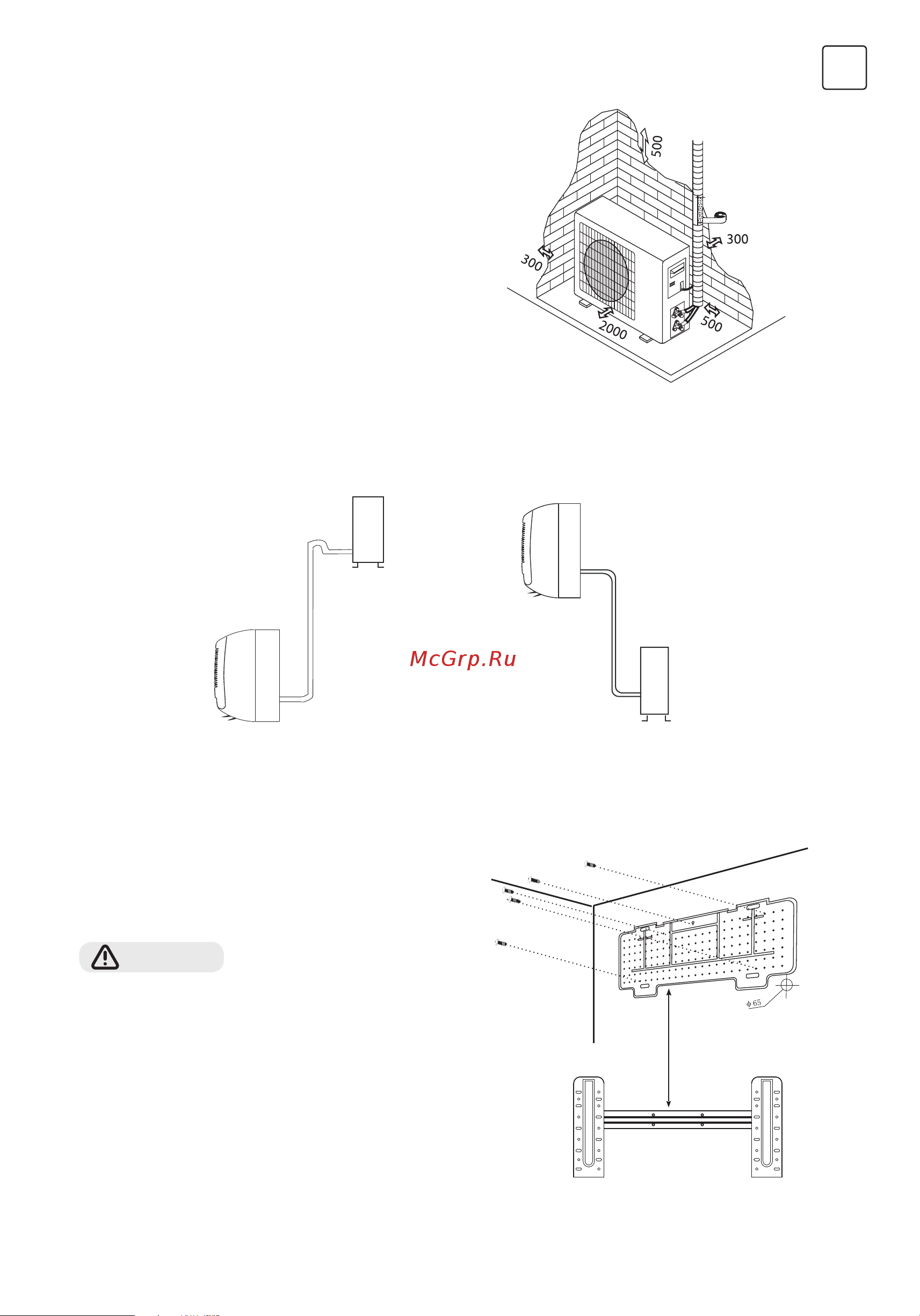

Minimum space to be reserved (mm)

showing in the picture

Outdoor unit

Indoor unit

The purchaser must ensure that the person and/or company who is to install, maintain or repair this air

conditioner has qualiﬁcations and experience in refrigerant products.

Installation of the Indoor unit

• Do not install your air conditioner in a wet room such as

a bathroom or laundry etc

• The installation site should be 250cm or more above

the ﬂoor.

WARNING!
