INSTALLATION

Connections

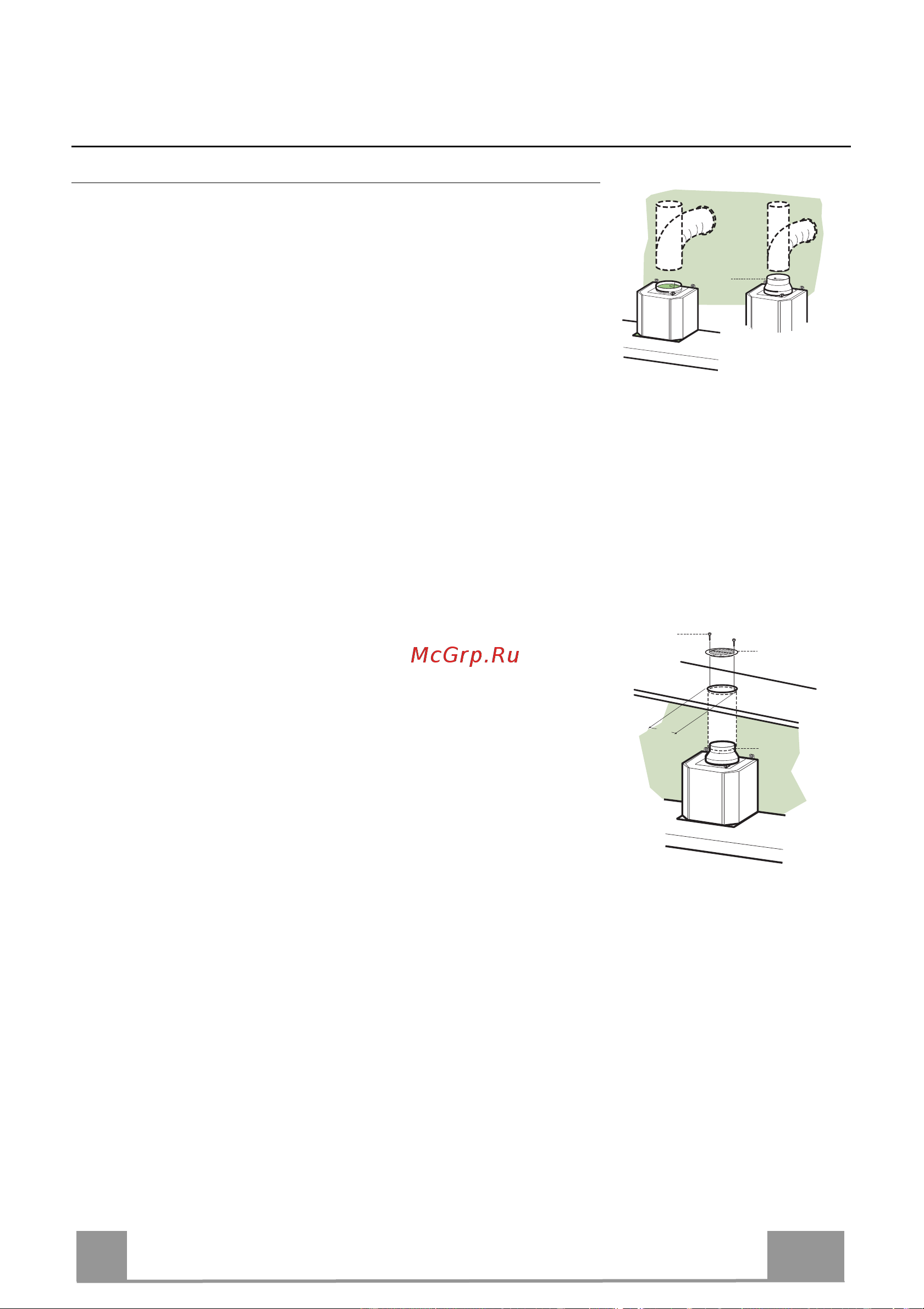

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the

chimney using either a flexible or rigid pipe ø 150 or 120 mm,

the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the reduc-

er flange 9 on the hood body outlet.

• Fix the pipe in position using sufficient pipe clamps (not sup-

plied).

• Remove possible charcoal filters.

ø 120ø 150

RECIRCULATION VERSION AIR OUTLET

• Cut a hole ø 125 mm in any shelf that may be positioned over

the hood.

• Insert the reducer flange 9 on the hood body outlet.

• Connect the flange to the outlet on the shelf over the hood by

using a flexible or rigid pipe ø120 mm.

• Fix the pipe in position using sufficient pipe clamps (not sup-

plied).

• Fix the air outlet grid 8 on the recirculation air outlet by using

the 2 screws 12e (2,9 x 9,5) provided.

• Ensure that the activated charcoal filters have been inserted.

ø 125

12e

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch hav-

ing a contact gap of at least 3 mm.
