Aqua Mini Full DC Inverter Unitary Chiller 50Hz
41
d) Hydraulic connection
The choice and installation of components is the responsibility of the installer who should follow good
working practice and current legislation. Before connecting the pipes, make sure they do not contain stones,
sand, rust, or others which might damage the unit. Construction of a bypass is recommended to enable the
pipes to be washed through without having to disconnect the unit (see drain valves). The connection piping
should be supported in such a way as to avoid it weighing on the unit. It is recommended that the following
devices are installed in the water circuit of the evaporator. A hydraulic safety valve shall be mounted in water
system, which should open constantly.

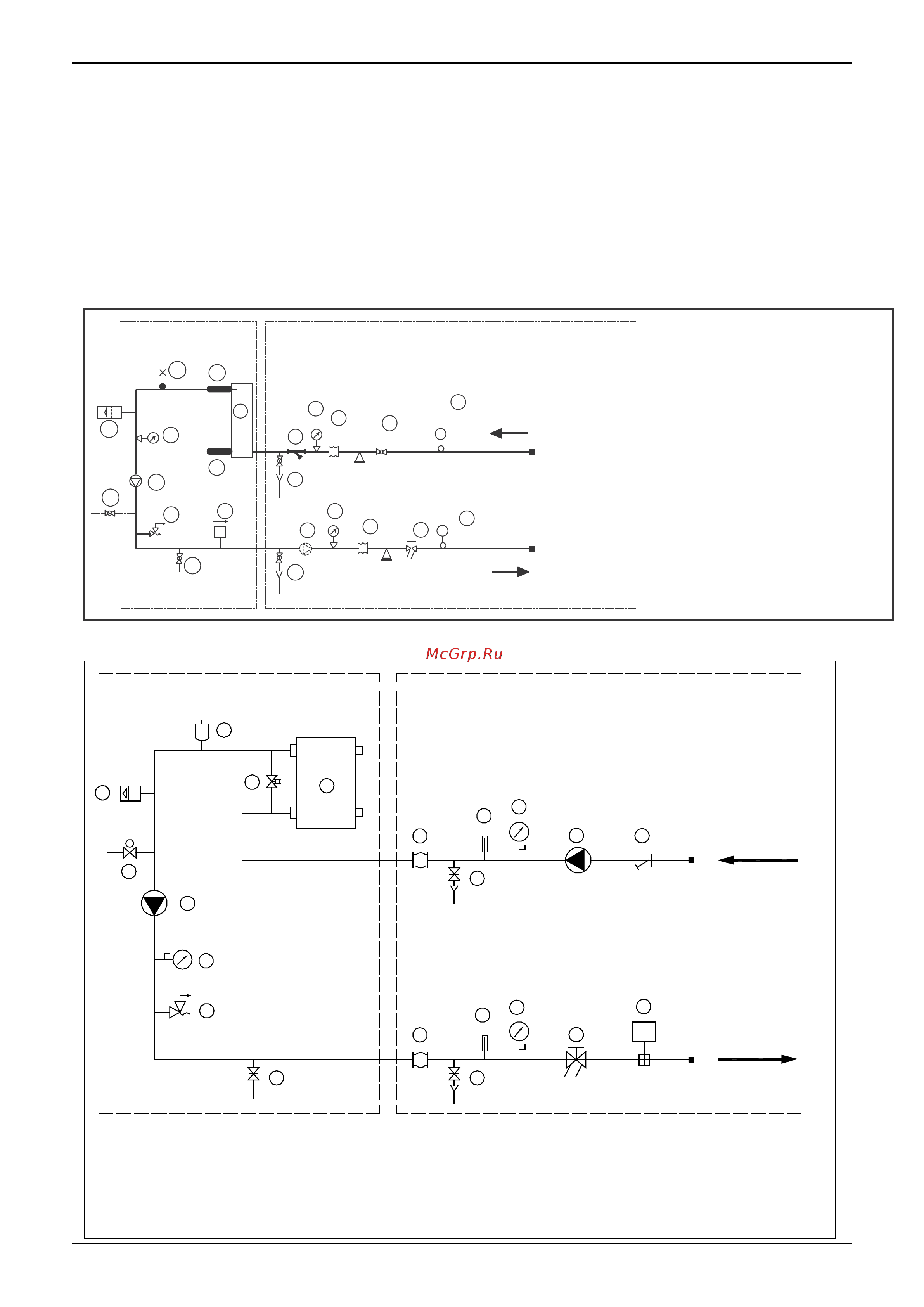

1). Connecting drawing of pipeline system
For MGRH5A-PA1Z & MGRH7A-PA1Z
9
2
4
1
14
15
11
14
7
16
2
3
10
5
6
T
6
T
F
1
1
13
13
8
14
Installer connections
WATER OUTLET
WATER INLET
Factory connections
1 Pressure gauge
2 Vibration damper joint
3 Gate valve
4 Calibrating valve
5 Water flow switch
6 Thermometer
7 Pump
8 Safety valve
9 Air vent
10 Expansion tank
11 Mesh filter
12 Auto-water replenishing
13 Temperature sensor
14 Drain/chemical washing valve
15 Plate heat exchanger
16 Additional pump
12
For MGRH10A-PA1Z ,MGRH12A-PA3Z, MGRH14A-PA3Z & MGRH16A-PA3Z
1
Factory Connections
Site Connections
A
F
WATER INLET
WATER OUTLET
3
4
7
2
5
6
8
9
10
10
11
12
14
13
11
6
9
9
1 Plate Heat Exchange
2 Differential Pressure Switch
3 Automatic Discharge Valve
4 Expansion Tank
5 Auto-watet replenishing
6Circulating Pump
7 Pressure Gauge
8 Safety Valve
9Drain/ChemicalWashing Valve
10 Flexible Joint
11 Thermometer
12 Calibrating Valve
13 Y-shaped Filter
14 Water Flow Switch
7
