Aqua Mini Full DC Inverter Unitary Chiller 50Hz
45

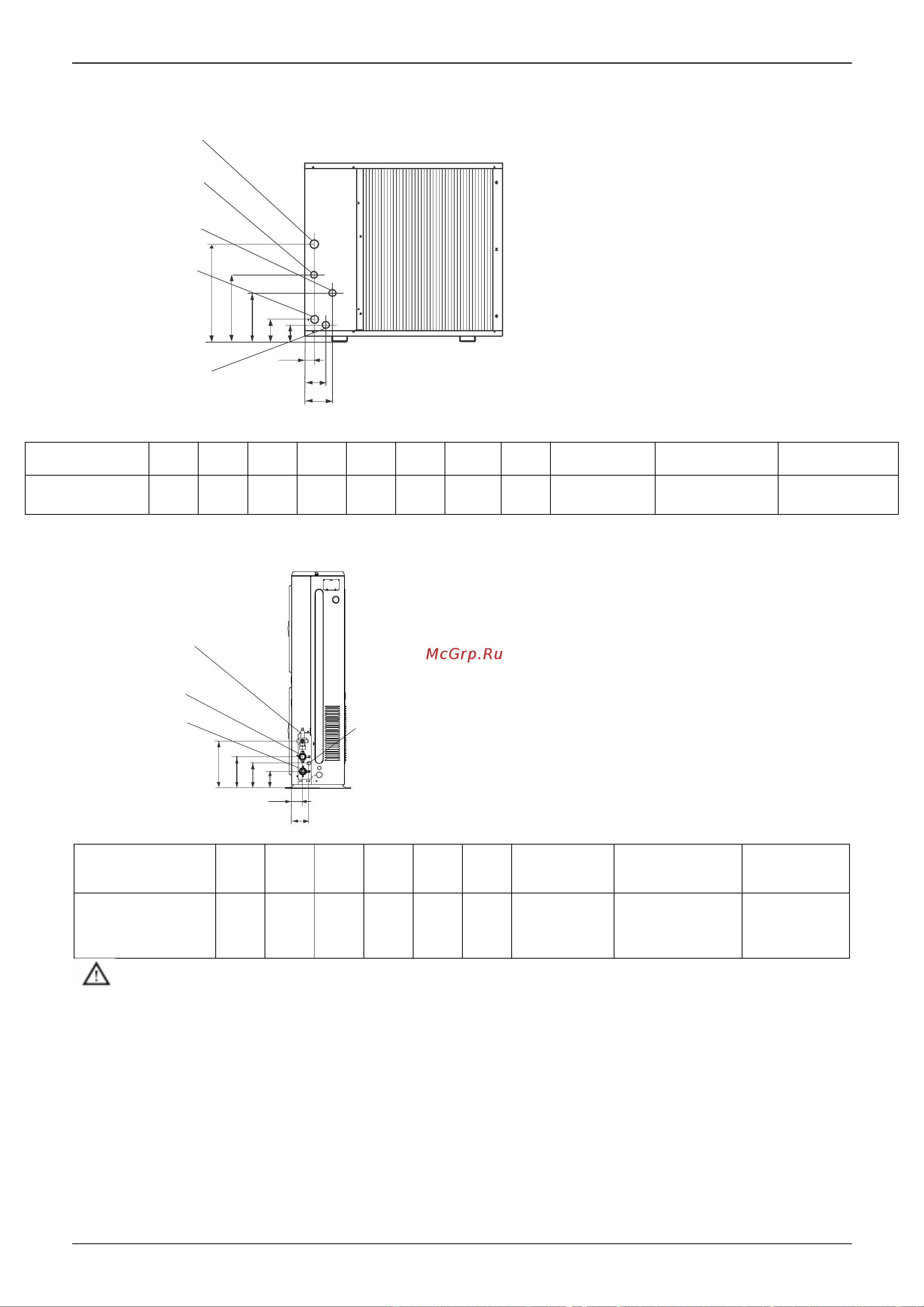

Size and position of connections
D
A
E
H
B
G
F
C
For MGRH5A-PA1Z & MGRH7A-PA1Z model
water inlet
auto-water
replenishing orifice
security discharge
water outlet
Water outlet of plate heat exchanger
Model
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
H
(mm)
Water
inlet/outlet (Ø)
Auto-water
replenishing (Ø)
Security
discharge (Ø)
MGRH5A-PA1Z
MGRH7A-PA1Z
70 106 230 362 108 161 76 119 R1 G1/2 G1/2
For MGRH10A-PA1Z,MGRH12A-PA3Z, MGRH14A-PA3Z, MGRH16A-PA3Z model
E
F
C
D
B
A
water outlet
auto-water
replenishin
g
orifice
security discharge
water inlet
Model
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
Water
inlet/outlet
(Ø)
Auto-water
replenishing (Ø)
Security
discharge (Ø)
MGRH10A-PA1Z
M
GRH12A-PA3Z
MGRH14A-PA3Z
MGRH16A-PA3Z
300 195 155 105 68 105 R5/4 G1/2 G1/2
Important
a) The installation must be filled to a pressure of between 1 and 2 bars.
b) It is recommended that this operation be repeated after the unit has been operating for a number of hours.
The pressure of the installation should be checked regularly and if it drops below 1 bar, the water content
should be topped-up.
c) Check the hydraulic tightness of joints.
d) An all-pole disconnection device which has at least 3mm separation distance in all pole and a residual
current device (RCD) with the rating of above 10mA shall be incorporated in the fixed wiring according to
the national rule the appliance shall be installed in accordance with national wiring regulations.
e) If the fluid in the circuit contains anti-freeze, it should not be allowed to drain freely as it is pollutant. It
should be collected for possible reuse. When draining after heat pump operation, take care as the water
may be hot (up to 50°).
