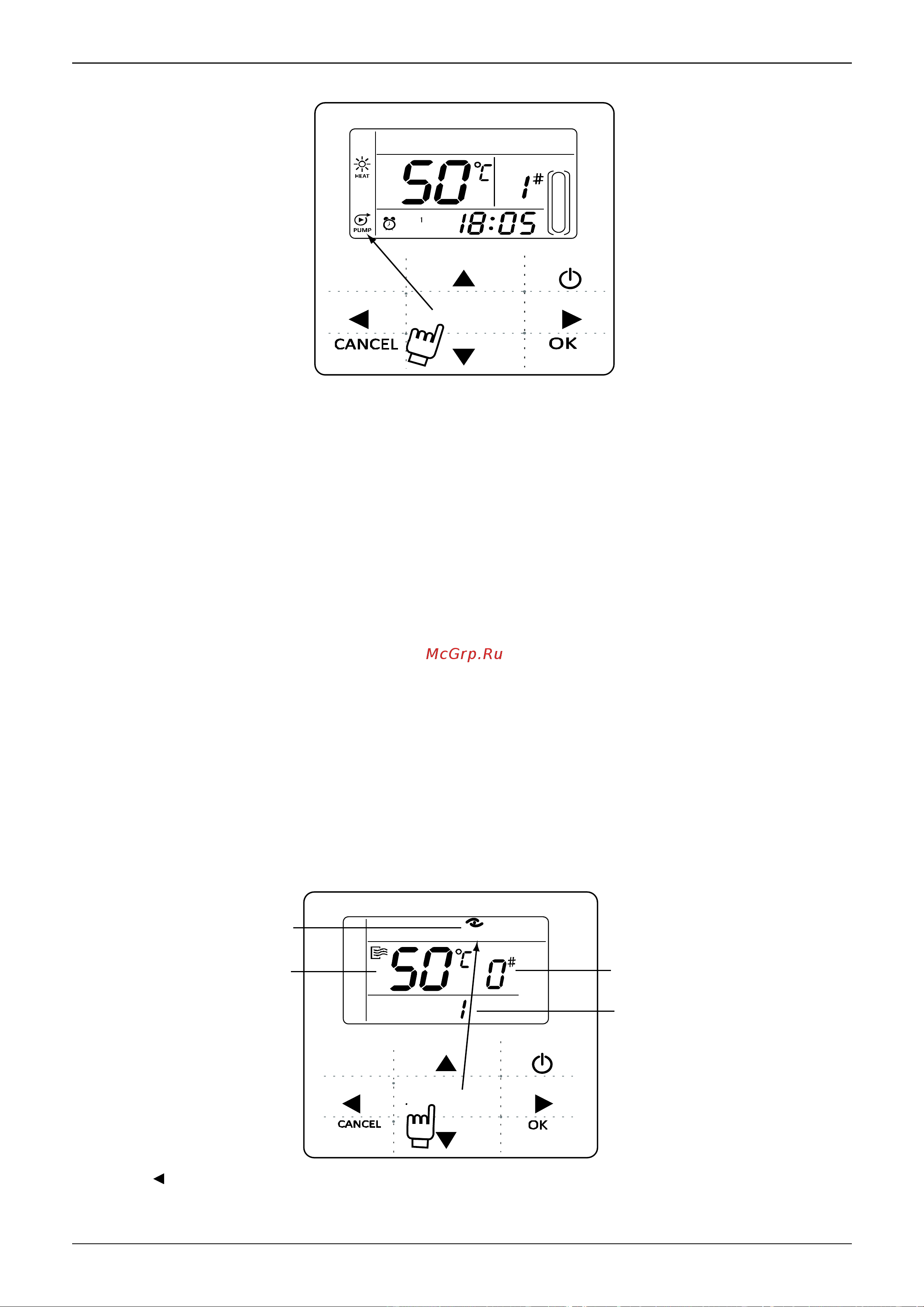

Aqua Mini Full DC Inverter Unitary Chiller 50Hz
67
f. Force opening water pump
Press 5
times
WAT E R
TEMP.
TIMER
(Press for 3sec to
cancel timer)
(Press for 3sec to
unlock)
MODE
FUNCTIONS
ON
Press the “FUNCTIONS” key 5 times to force open the water pump. The water pump icon will flash.
Press “ OK ”key to confirm. During the setting process pressing the “CANCEL” key to exit without saving.
Note:
a. Forcing water pump function is only limited to stand-by mode, others modes not response.
b. Under forcing water pump function, other settings will not responsible, except stopping
c. When communication disconnects, it will show E2 error in 2 minutes, the wired controller will
automatically cancel the forcing water pump function; while connected, the wired controller keeps
synchronizing with the unit( If forcing water pump function is still on-going, the controller keeping showing
its status).
d. The outdoor unit does not response after activating the forcing water pump function, (eg: forcing water
pump function cannot be activated under forcing heating in stand-by mode),the function will be
automatically stopped if it is not activated within 5 minutes.
17.2.3 Checking function
1) Check function allows the user to check all the operating parameters, error and protection information of
the unit.
2) Entering method: press and hold “FUNCTIONS” key for 3 seconds to enter check interface, as the figure
display:
RUN
Press
3 seconds
CHECK
check
icon
check
parameter
check sequence
number
Unit number
(Press for 3sec to
cancel timer)
MODE
(Press for 3sec to
unlock)
FUNCTIONS
3) Press “
” or “
▲
” to check all the status information of the unit.
