MIDI MACHINE CONTROL
126
USING SOFTWARE AS AN MMC CONTROLLER
Most likely, you’ll want to establish your computer
software as the MMC transport control master, so you can
control all MMC devices from your computer, allowing
you to play, stop, and cue all connected devices directly
from your software’s main transport controls.
This can be accomplished with an MMC-compatible
sequencer, MMC applet, or any other software that
transmits MMC transport control commands.
Your MOTU MIDI interface has the ability to serve as a
MMC transport slave, while at the same time generating
time code for other devices in your studio. In doing so, the
MOTU interface becomes a central, stable time code “hub”
for all of the devices in your studio, allowing you play, stop,
and cue them all directly from your sequencer.

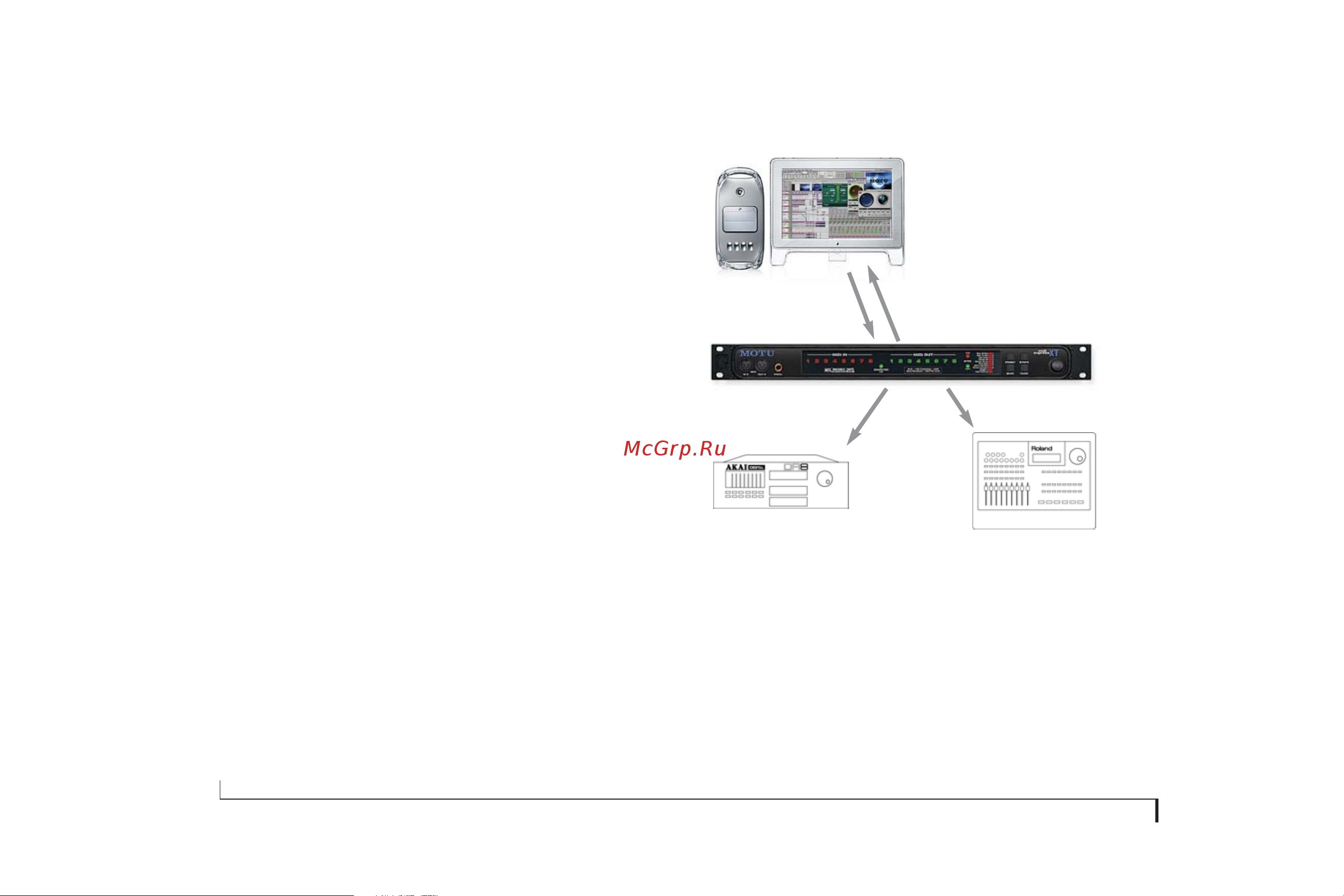

Figure 9-1: Your MOTU interface (a MIDI Express XT in this example) can serve
as a time code “hub” while you control it from your sequencer via MMC trans-
port commands.
Digital Performer
MOTU MIDI interface
MIDI Time Code (MTC)
MIDI Machine Control (MMC)
SMPTE (LTC)
Examples of
devices that can
slave to time code
Akai DR8
Roland VS-880
MIDI Time Code (MTC)
