CLOCKWORKS FOR MAC OS X
36
2. or send the MMC transport commands to the MOTU
interface instead and have it redistribute them to the other
MMC device(s)
If you would like to bypass the interface and control a
MMC device directly from your computer software
(choice #1 above), remove the highlighted connection
shown in Figure 5-2 on page 33.
If you plan to use choice #2 above, maintain the
connection shown in Figure 5-2 on page 33, and also
make connection from your MOTU interface’s MMC Out
port on the left to the MMC device’s destination MIDI
port on the right.
Connecting an MMC controller
If you would like to control your MOTU interface from a
MMC controller connected to one of its MIDI inputs,
connect the device’s input cable to the MMC In port.
THE PRESETS TAB
The presets tab lets you name the users presets in your
MOTU interface and choose which one is active (by
clicking the button next to its name). For complete details
about presets, see “Front Panel Presets” on page 107.

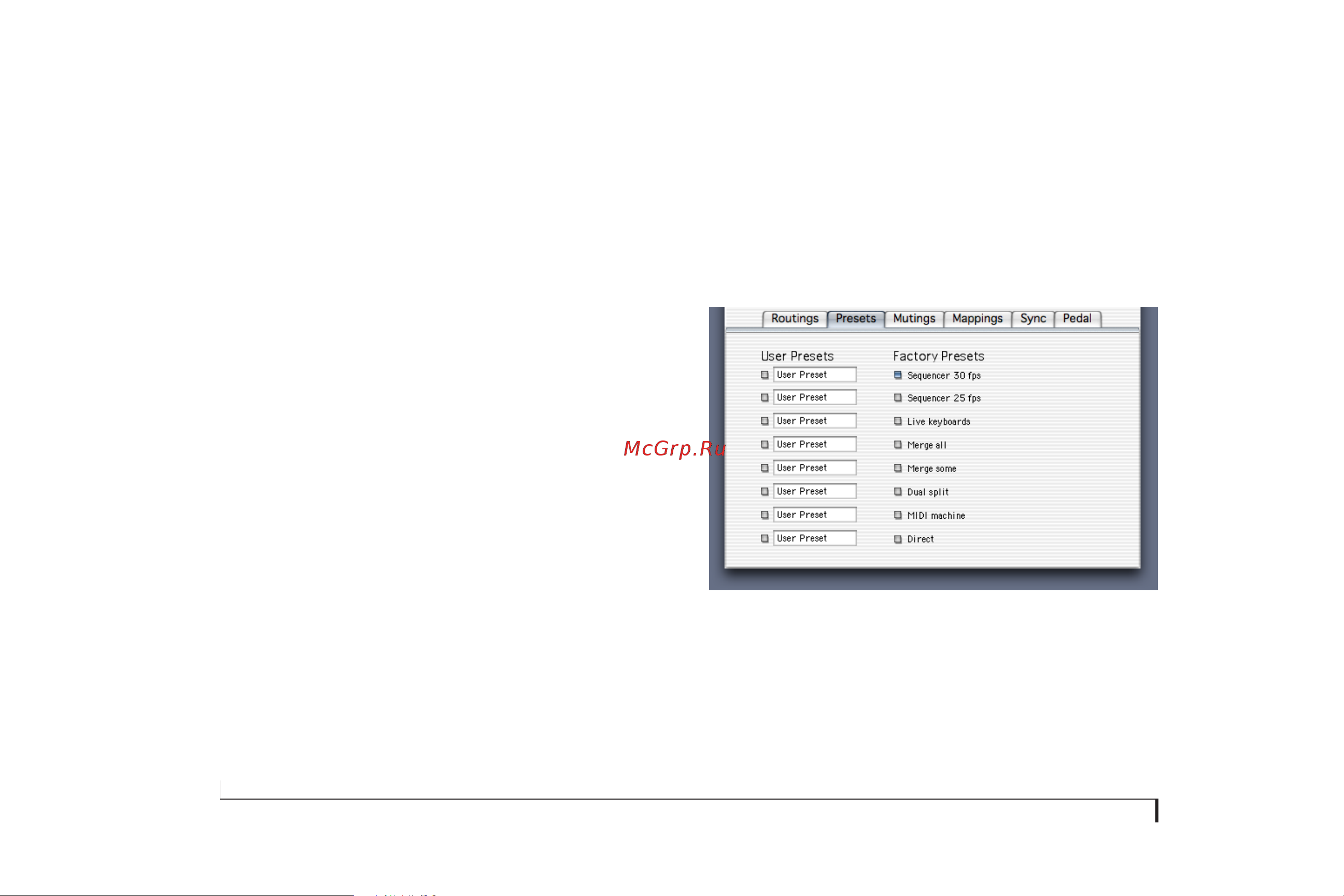

Figure 5-4: The Presets tab.
