9
CHAPTER
2
Installing Your MOTU Interface
OVERVIEW
Connecting the power cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Connecting the computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Connecting MIDI gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
MIDI connections worksheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
SMPTE Time Code sync connections . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting a foot switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connecting an audio click source . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connecting multiple USB interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . 15
CONNECTING THE POWER CORD
Plug the power cord into your MOTU MIDI Interface and
then plug the other end into a grounded power outlet. We
recommend that you leave the interface switched off while
making cable connections during installation.
CONNECTING THE COMPUTER
First, make sure that the interface’s power switch is turned
off. Using the USB cable included with your MOTU MIDI
interface, put the Type A plug into a Type A USB jack on
the computer, the USB computer keyboard, a USB hub, or
any other USB device connected to the computer that has
an available Type A USB jack. The USB cable allows the
Mac to communicate with all MIDI devices connected to
your MOTU MIDI interface. If you have several MOTU
interfaces, see “Connecting multiple USB interfaces” on
page 15.

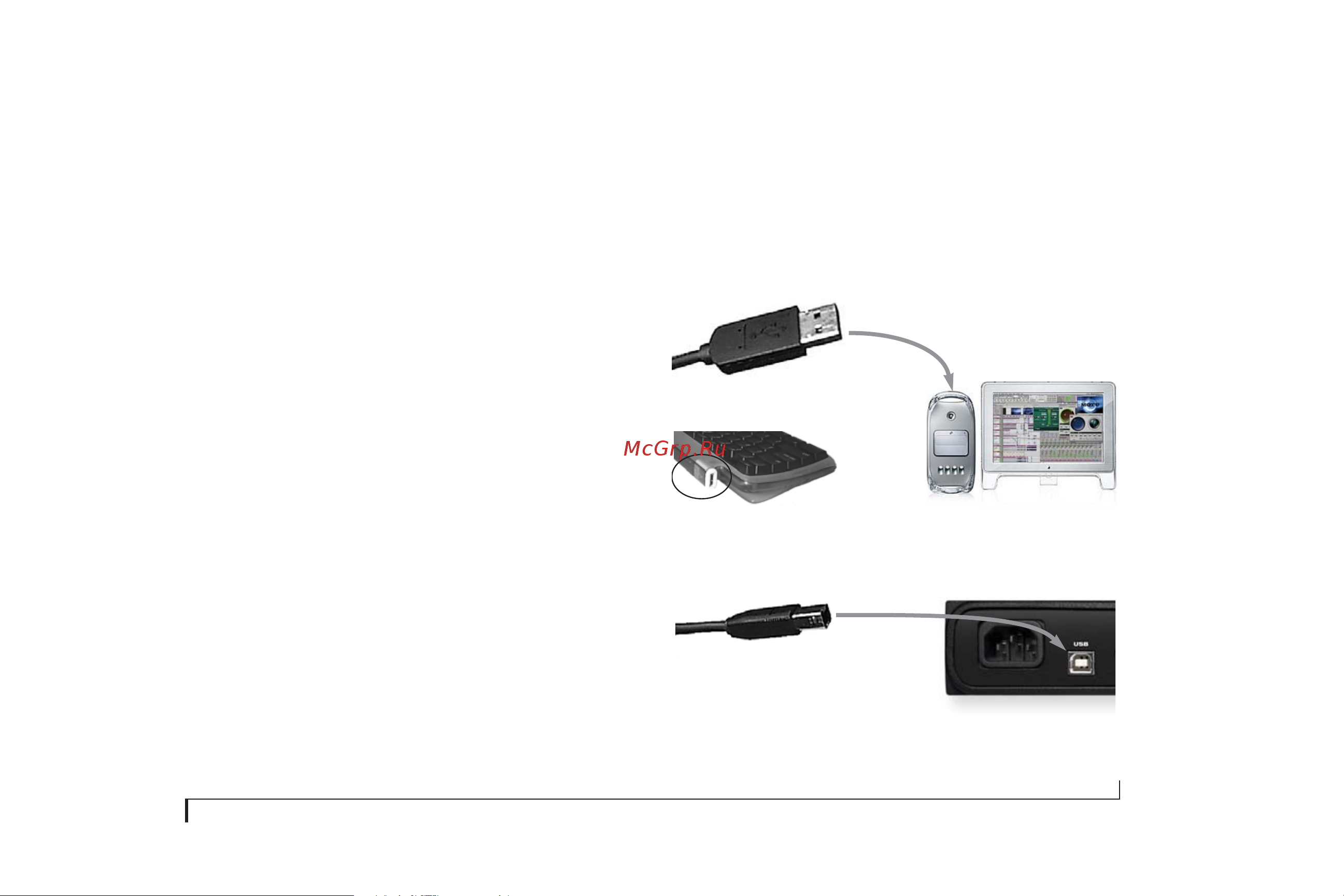

Figure 2-1: You can plug the Type A connector directly into the computer itself,
a USB keyboard connected to the computer, or any other USB device already
connected to the computer that has an available Type A USB jack.
Figure 2-2: The square Type B plug goes into your MOTU interface.
The flat, “Type A” USB plug
connects to the computer.
You can use any available
Type A jack.
